$10.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 24 V | N/A | 3.15" | 1.0" | 3.15" | 4.40lbs |
| Voltage | 24 V |
| Amp/H | N/A |
| Length | 3.15" |
| Width | 1.0" |
| Height | 3.15" |
| Weight | 4.40lbs |

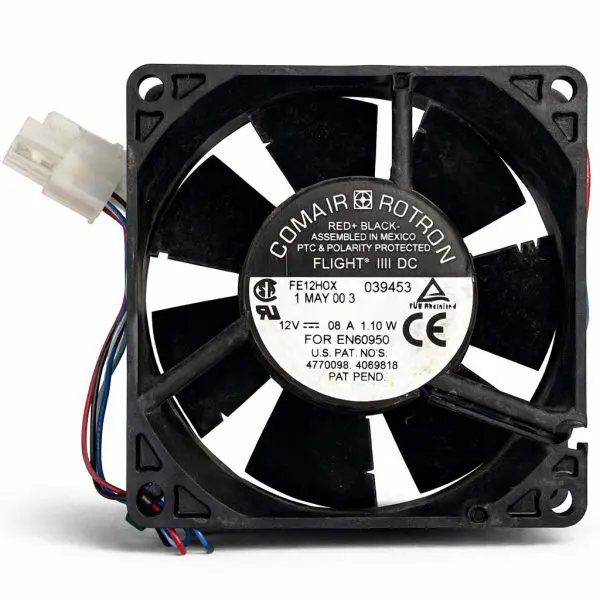

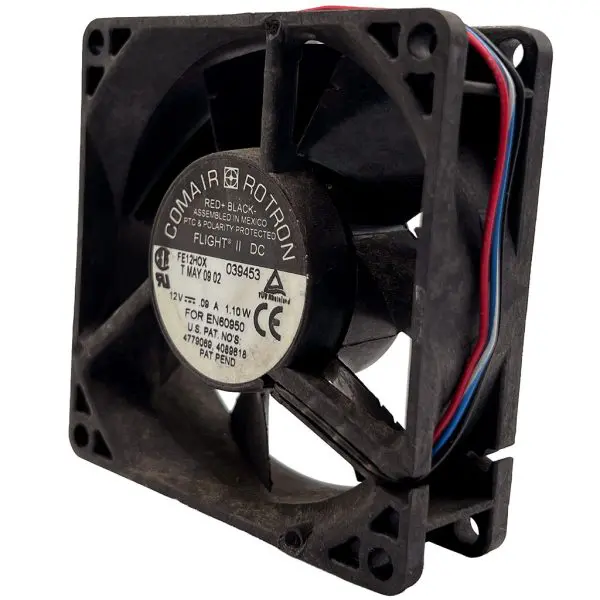

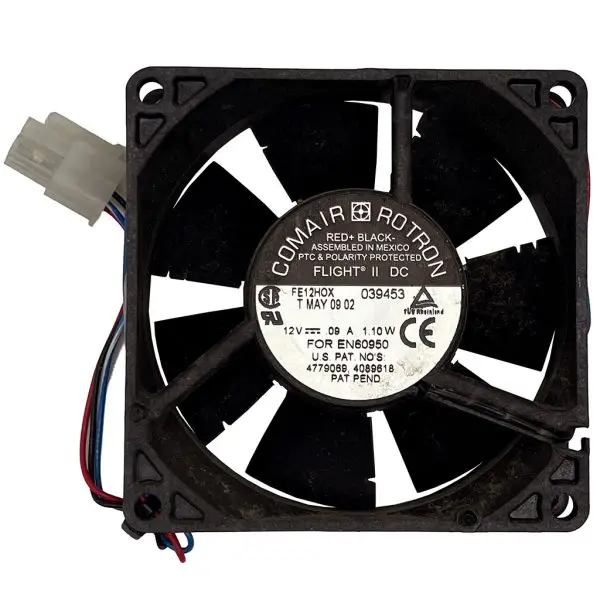

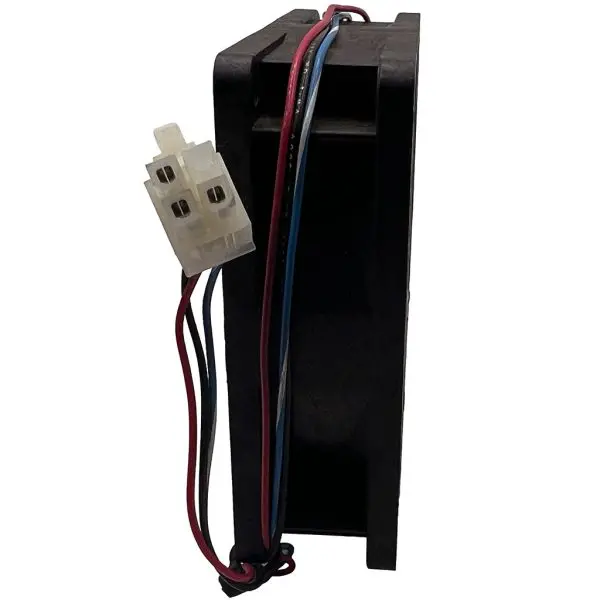

OEM axial fan from COMAIR ROTRON, Flight II DC family, built as a semi-custom unit for APC under part number 039453. Used as the main system fan in APC Symmetra RM and similar UPS chassis where a monitored 80 mm 12 V DC fan is required.
This fan is part of the Flight II 80 mm DC series, designed for continuous duty service in power electronics. It provides high-reliability airflow with a tachometer (RPM sense) output so the UPS intelligence module can monitor fan health.
Mechanical format matches a standard 80 × 80 × 25 mm square axial fan, simplifying mechanical replacement when servicing APC Symmetra RM and other UPS systems that specify this exact COMAIR ROTRON / APC part number.
| Option | Description | Warranty |
|---|---|---|
| Brand New | Brand-new genuine COMAIR ROTRON Flight II DC fan built to APC spec P/N 039453 — factory-fresh or new-old-stock; supplied with OEM-style harness/tach lead where available. |
1-Year
|
| Tested | Operationally verified pull from a functioning APC UPS; tachometer output, rotation, and noise level checked; fan cleaned and wiring inspected for reliable reuse. |
90-Day
|
| Part # | Dimensions | Voltage | Airflow | Connector | Application |
| Flight II DC — FE12H0X-039453* | 80 × 80 × 25 mm (3.15 × 3.15 × 1.0 in) | 12 V DC | High-speed 80 mm axial fan (CFM per OEM label) | 4-wire lead with tach (RPM sense) | APC Symmetra RM & related UPS main system fan |
| Part # | Compatible Models | Notes |
| 039453 (Flight II DC) | APC Symmetra RM UPS main chassis fan (APC P/N 490-0024B) and other UPS / power systems that explicitly specify COMAIR ROTRON 039453 / FE12H0X-039453 | Use only where the exact APC / COMAIR ROTRON part is called out; system firmware monitors tach signal, so generic 80 mm fans are not recommended as substitutes. |
