APC – Symmetra – PD40F6FK1-M – Bypass PDU Cabinet Tested

Manufacturer

OEM Part Number

PD40F6FK1-M

GPS Part Number

PD40F6FK1-M

Tags

Price:

$3,400.00

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
480/208/120 60ย kVA 81.0 24.0 36.0 ~1400
Voltage 480/208/120
Amp/H 60ย kVA
Length 81.0
Width 24.0
Height 36.0
Weight ~1400

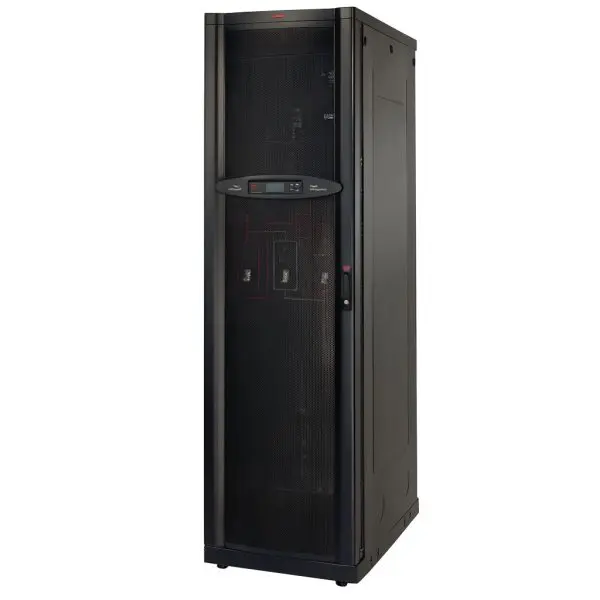

APC Symmetra PX โ€” PDU Cabinet (60ย kVA)

This is the Tested Version.

SKU: PDU-APC-SPX60-PDU ย |
Type: Floor-standing Power Distribution Cabinet for Symmetra PX 60ย kVA / 60ย kW line-ups.
Typical electrical path: 480ย V 3-phase input to 120/208ย V 3-phase distribution, with integrated maintenance bypass (MBB) and
dual panelboard branch distribution for downstream racks.

  • Integrated service bypass: Three-breaker MBB allows safe UPS maintenance without load downtime.
  • Branch distribution: Dual 42-pole panelboards (top and/or bottom cable entry) for flexible circuiting.
  • Power path: 480ย Vย 3ฯ• input transformer to 120/208ย Vย 3ฯ• output for IT loads (typical Symmetra PX 60ย kVA layout).
  • Capacity envelope: Up to 60ย kVA frame; nominal output current ~167ย A at 208ย Vย 3ฯ• (balanced).
  • Cabinet form factor: ~81ย ร—ย 24ย ร—ย 36ย in (Hร—Wร—D); shipping/installed accessories available (lugs, labels, documentation).

Technical Specifications โ€” Symmetra PX 60 kVA PDU Cabinet (PD40F6FK1-M)
Parameter Detail
Cabinet Type Power Distribution Cabinet with integrated Maintenance Bypass (MBB)
Compatible UPS APC Symmetra PX 60ย kVA / 60ย kW systems
Input 480ย V 3-phase, 60ย Hz, hard-wired (top/bottom entry; site-dependent lugs)
Output 120/208ย V 3-phase distribution to branch circuits (panelboards)
Frame Rating 60ย kVA (60ย kW)
Nominal Output Current โ‰ˆย 167ย A @ 208ย Vย 3ฯ• (balanced), for capacity planning
Maintenance Bypass Three-breaker MBB (UPS, Bypass, Tie), mechanically interlocked
Distribution (2) 42-pole panelboards; top and/or bottom cable egress
Dimensions (Hร—Wร—D) ~ย 81ย ร—ย 24ย ร—ย 36ย in (2057ย ร—ย 610ย ร—ย 914ย mm)
Approx. Weight ~ย 1,400ย lb (635ย kg) cabinet-only (varies with options)
Approvals UL / cUL; construction to ULย 60950 / equivalent power distribution standards
Environment Operating: 32โ€“104ย ยฐF (0โ€“40ย ยฐC), 0โ€“95% RH non-condensing; Elevation 0โ€“10,000ย ft
Storage: 0โ€“113ย ยฐF (0โ€“45ย ยฐC), 0โ€“95% RH; Elevation 0โ€“30,000ย ft
Color Black / dark gray (PX family finish)
Warranty (mfr.) 1-year repair or replace (typical for distribution cabinets)

Notes & Replacement

Designed to pair with Symmetra PX 60ย kVA frames in 208ย V distribution environments. Alternate builds are commonly available
for 208โ†’208ย V (transformer-less) and 600โ†’208ย V input schemes with the same 60ย kVA frame rating.
Check pole counts, feeder size, and cable entry before ordering.

Product Options โ€” Tested vs. Refurbished Cabinets
Option Description Warranty
Tested Input/output verification; MBB functional test; breaker operation & interlock checks; panelboard continuity; label & indicator checks. 90โ€‘Day
Refurbished Cleaned and serviced cabinet; cosmetic touch-ups; torque & insulation tests; full MBB & distribution re-test with report. 1โ€‘Year

  • Use case: Integrate a PX 60ย kVA UPS into building power while providing safe service bypass and branch circuits.
  • Serviceability: Three-breaker MBB enables no-downtime maintenance and clear isolation points.
  • Install tip: Coordinate feeder/bus sizing and panel schedules; verify top/bottom cable entry and clearance.

Compatibility & Variants Matrix โ€” Symmetra PX 60ย kVA PDU / Bypass Cabinets
Variant Input โ†’ Output Distribution Notes
PX60 PDU โ€” 480โ†’208 480ย Vย 3ฯ• โ†’ 120/208ย Vย 3ฯ• (2) 42-pole panelboards Most common North American configuration; integrated MBB.
PX60 PDU โ€” 208โ†’208 208ย Vย 3ฯ• โ†’ 208ย Vย 3ฯ• (transformer-less) Panelboard distribution Use where 208ย V service is available; integrated MBB option.
PX60 PDU โ€” 600โ†’208 600ย Vย 3ฯ• โ†’ 120/208ย Vย 3ฯ• Panelboard distribution Canadian/industrial feed scenarios; integrated MBB.

Why buy from Gruber
  • Professionally tested โ€” MBB, breakers, and distribution verified; torque sheets available.
  • Exact fit โ€” Engineered for Symmetra PX 60ย kVA line-ups with flexible cable entry.
  • Documentation โ€” Test results and labeled panel schedules provided on request.
