APC – AP9626 – Step-Down Transformer – Tested

Manufacturer

OEM Part Number

AP9626

GPS Part Number

AP9626

Tags

Price:

$299.99

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
208VAC 5,000VA 3.50in 17.52in 24.02in 95.20lb
Voltage 208VAC
Amp/H 5,000VA
Length 3.50in
Width 17.52in
Height 24.02in
Weight 95.20lb

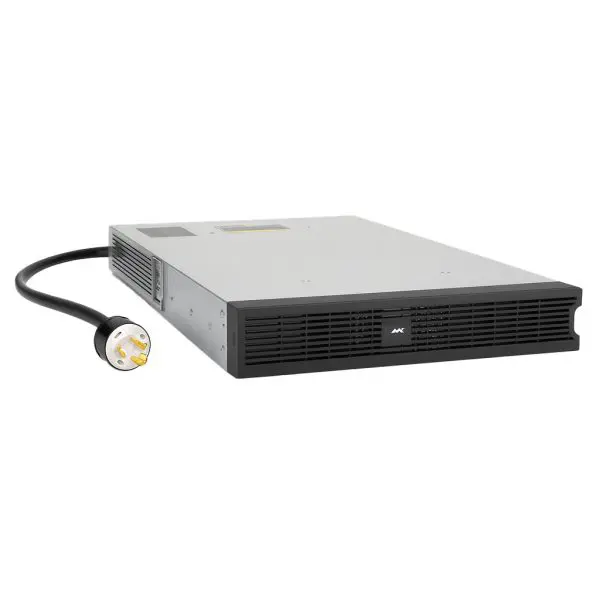

APC โ€” Step-Down Transformer (AP9626)

This is the Tested Version.

SKU: APC-AP9626 ย |
Type: 2U rack-mount Step-Down Transformer (208/200ย Vย in โ†’ 120/100ย Vย out). Supplies up to 5.0ย kVA to 12ย ร—ย NEMAย 5-20R outputs; locking NEMAย L6-30P input on a 3ย ft (0.91ย m) cord.

  • Conversion: 208/200ย V โ†’ 120/100ย V for legacy/low-voltage AC gear.
  • Outputs: 12ย ร—ย NEMAย 5-20R; total output current up to 24ย A.
  • Input: NEMAย L6-30P; 30ย A max (24ย A line-rated); 60ย Hz.
  • Rack-mount: 2U chassis with brackets; install directly above the UPS.
  • Environment: 32โ€“104ย ยฐF (0โ€“40ย ยฐC) operating; 0โ€“95% RH; 0โ€“10,000ย ft.

Technical Specifications โ€” AP9626
Parameter Detail
Product Type Step-Down Transformer, rack-mount (2U)
Nominal Input Voltage 208ย VAC (supports 200ย VAC)
Nominal Output Voltage 120ย VAC (supports 100ย VAC)
Input Connection NEMAย L6-30P; cord length 3ย ft (0.91ย m)
Output Receptacles 12ย ร—ย NEMAย 5-20R
Capacity 5,000ย VA; efficiency ~90โ€“95%
Frequency 60ย Hz
Max Input / Line-Rated Current 30ย A max; 24ย A line-rated
Max Total Output Current 24ย A
Form Factor 2U; rack-mounted; mounting location front; no preference
Dimensions (H ร— W ร— D) 3.50 ร— 17.52 ร— 24.02ย in (89 ร— 445 ร— 610ย mm)
Net Weight 95.20ย lb (43.18ย kg)
Included Hardware Rack mounting brackets; user manual
Certifications / Standards ULย 1778; CSA; OSHPD
Environment Operating: 32โ€“104ย ยฐF (0โ€“40ย ยฐC), 0โ€“95% RH; Altitude 0โ€“10,000ย ft
Storage: 5โ€“113ย ยฐF (โˆ’15โ€“45ย ยฐC), 0โ€“95% RH; Altitude 0โ€“50,000ย ft
Warranty (mfr.) 2-year repair or replace

Notes & Replacement

AP9626 converts 208/200ย V to 120/100ย V with 12ย ร—ย 5-20R straight-blade outlets. Need twist-lock 120ย V outlets instead?
See sibling model AP9627 (4ย ร—ย L5-20R, same 5ย kVA class).

Product Options โ€” Tested vs. Refurbished Transformers
Option Description Warranty
Tested Input/output verified under load; all 5-20R receptacles checked; breakers confirmed; cord/plug inspected. 90โ€‘Day
Refurbished Cleaned and serviced; cosmetic touch-ups as needed; full distribution & breaker re-test after service. 1โ€‘Year

  • Use case: Feed 120ย V equipment from a 208/200ย V UPS/feed without re-wiring downstream PDUs.
  • Distribution: Two 15ย A branch pairs simplify load grouping and reduce nuisance trips.
  • Install tip: Mount above the UPS; secure the L6-30P; observe the 24ย A line rating.

Compatibility & Variants Matrix
Model Input / Plug Outputs Typical Use / Notes
AP9626 208/200ย V / NEMAย L6-30P (3ย ft cord) 12ย ร—ย 5-20R; 5.0ย kVA; 24ย A max total 2U step-down for bundles of 120ย V loads from a 208ย V source.
AP9627 208/200ย V / NEMAย L6-30P (~2โ€“3ย ft cord) 4ย ร—ย L5-20R; 5.0ย kVA class Twist-lock 120ย V outlets where plug retention is required.
