APC – AP9563 – Power Distribution Unit – Tested

Manufacturer

OEM Part Number

AP9563

GPS Part Number

56-APC-AP9563

Tags

Price:

$220.99

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
120 Volt N/A N/A N/A N/A 12 lbs
Voltage 120 Volt
Amp/H N/A
Length N/A
Width N/A
Height N/A
Weight 12 lbs

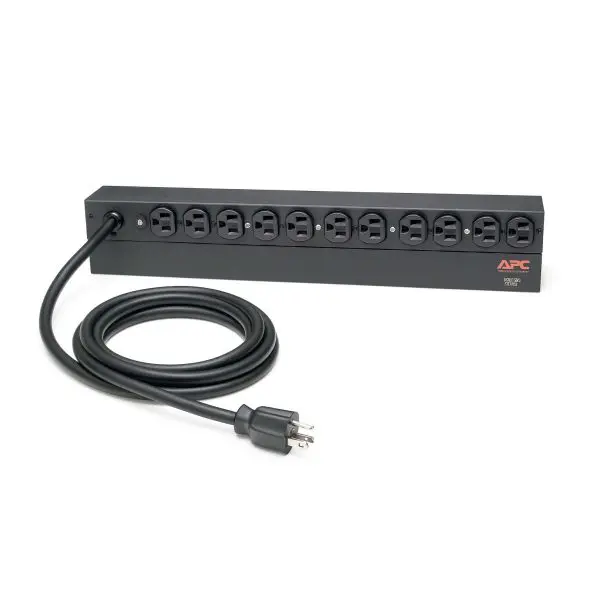

APC NetShelter โ€” AP9563 Power Distribution Unit (PDU)

This is the Tested Version

1U horizontal Basic rack PDU with (10) NEMAย 5-20R outlets, fed by a
NEMAย 5-20P input on a 12ย ft line cord. Rated 20ย A, 120ย V (line-rated 16ย A; 1.92ย kVA usable) for dependable distribution across a single rack.

Specifications โ€” AP9563
Parameter Value
Form Factor 1U horizontal; rack-mount (front or rear)
Input 120ย V, 50/60ย Hz; NEMAย 5-20P; 12ย ft (3.7ย m) cord
Output (10) NEMAย 5-20R, 120ย V
Current / Capacity 20ย A input (line-rated 16ย A); 1.92ย kVA usable
Dimensions (Wย ร—ย Hย ร—ย D) 17.60โ€ณ ร— 1.73โ€ณ ร— 2.24โ€ณ (44.7 ร— 4.4 ร— 5.7ย cm)
Weight 5.5ย lb (2.5ย kg)
Color / Type Black; NetShelter Basic PDU

Why choose the AP9563?
  • Ten 5-20R outlets keep small racks tidy โ€” no power strips or adapters.
  • 20ย A, 120ย V feed โ†” 1.92ย kVA usable capacity for mixed IT loads.
  • Shallow depth (2.24โ€ณ) fits tight fronts or rears โ†’ easy cable management.
  • Includes rack brackets and install guide โ€” drop-in replacement friendly.

Ideal for 19โ€ณ EIA-310 racks in labs, IDF/MDF closets, and small server cabinets. Requires a
NEMAย 5-20R wall/circuit. For metering or remote switching, consider an upgrade to a metered or switched NetShelter PDU.

Product Options โ€” Tested vs. Refurbished
Option Description Warranty
Tested Clean, inspected, fully functional PDU; outlets and line cord verified under load; cosmetic wear may be present. 90-Day
Refurbished Deep-cleaned and recertified; hardware refreshed as needed; paint touch-ups; functionally equivalent to new. 1-Year

Compatibility Matrix โ€” Mounting & Power Requirements
Category Compatible (Representative) Notes
Racks & Cabinets EIA-310 19โ€ณ racks; 1U front or rear mount Shallow 2.24โ€ณ depth eases door clearance and cable routing.
Input Power 120ย V branch circuit with NEMAย 5-20R receptacle 20ย A circuit; derate to 16ย A continuous load per common practice.
Device Outlets (10) NEMAย 5-20R Use 5-20P or 5-15P plugs (5-15P fits 5-20R) as appropriate.



Why buy from Gruber
  • Professionally tested โ€” Outlet branches and breakers verified under load; insulation and ground checks performed.
  • Exact fit hardware โ€” Includes the correct 2U brackets/rails for standard 19″ racks.
  • Data-center friendly โ€” Locking L6-30P input and grouped 5-20R outputs minimize accidental disconnects.
