APC – AP7863 – PDU – Tested

0f2c5eff-e8ef-40cf-bdec-8b47f18002c8
EE
90 Day
0f2c5eff-e8ef-40cf-bdec-8b47f18002c8
EE
90 Day

Manufacturer

OEM Part Number

AP7863

GPS Part Number

AP7863

Categories

Tags

, , ,

Price:

$149.99

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
120 V 5,700 VA 70.00in 2.20in 1.73in 12.02lb
Voltage 120 V
Amp/H 5,700 VA
Length 70.00in
Width 2.20in
Height 1.73in
Weight 12.02lb

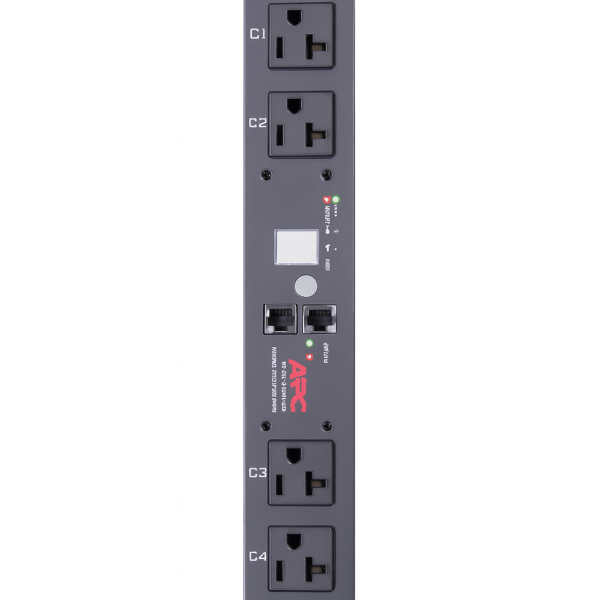

APC NetShelter — Metered Rack PDU (AP7863)

This is the Tested Version.

SKU: PDU-APC-AP7863  |
Type: 0U vertical, Metered rack PDU for 120/208 V, 3-phase racks. Delivers up to 5,700 VA with a mixed-receptacle layout to power both 120 V and 208 V gear in the same cabinet; 3 ft (0.9 m) line cord with NEMA L21-20P.

  • Outlet mix: 21 × NEMA 5-20R + 6 × NEMA L6-20R (total 27).
  • Input: 208 V 3-phase via L21-20P; 3 ft (0.9 m) cord.
  • Metered visibility: Local digital display shows aggregate current to help avoid overloads.
  • Zero-U vertical mount: Preserves rack U-space; toolless mounting kit and brackets included.
  • Data-center ready: UL/cUL listed; FCC Class A; operating 32–113 °F (0–45 °C), 0–95% RH.

Technical Specifications — AP7863
Parameter Detail
PDU Type Metered; Zero-U vertical (0U)
Input 208 V, 3-phase; NEMA L21-20P; cord length 3 ft (0.9 m); 1 power cord
Line Rated / Max Input Current 16 A line-rated  |  20 A input limit
Output Voltage 120 V and 208 V
Outlets 21 × NEMA 5-20R  |  6 × NEMA L6-20R (total 27)
Load Capacity 5,700 VA
Frequency 50/60 Hz
Dimensions (H×W×D) 70.00 × 2.20 × 1.73 in (1778 × 56 × 44 mm)
Net / Ship Weight 12.02 lb (5.45 kg)  |  ~19.49 lb (8.84 kg) packaged
Included Hardware Toolless mounting kit; rack brackets; installation guide; user manual
Certifications / Standards UL Listed; cUL Listed; Industry Canada  |  UL 60950-1; CSA C22.2 No. 60950-1-03; FCC Part 15 Class A; ICES-003
Environment Operating: 32–113 °F (0–45 °C), 0–95% RH; Altitude 0–10,000 ft  |  Storage: −13–149 °F (−25–65 °C), 0–95% RH; Altitude 0–50,000 ft
Warranty (mfr.) 2-year repair or replace

Notes & Replacement

AP7863 is a legacy Metered 0U PDU that APC lists as discontinued (June 14, 2022). APC’s recommended current replacement is the
AP8863 (NetShelter Metered PDU, 2G; 0U; 20 A; 120/208 V 3-phase; 24× 5-20R + 6× L6-20R).

Product Options — Tested vs. Refurbished PDUs
Option Description Warranty
Tested Operationally verified PDU. All outlets checked across phases; cord/plug inspected; meter display verified for correct readout. 90‑Day
Refurbished Cleaned and serviced unit; cosmetic touch-ups as needed; outlets and breakers re-verified; meter retested. 1‑Year

  • Use case: Mixed 120 V + 208 V in the same rack via one 3-phase 0U PDU.
  • Visibility: Local ammeter helps balance phases and avoid breaker trips.
  • Space: Zero-U vertical mounting preserves 19″ rack units for gear.

Compatibility & Variants Matrix
PDU Model Input / Plug Outlet Mix Typical Use / Notes
AP7863 208 V 3-phase / NEMA L21-20P (3 ft cord) 21 × 5-20R; 6 × L6-20R Legacy Metered 0U PDU for mixed 120/208 V racks; discontinued.
AP8863 (Replacement) 208 V 3-phase / NEMA L21-20P 24 × 5-20R; 6 × L6-20R NetShelter Metered PDU 2G; similar mixed-voltage deployments; 0U vertical.



Why buy from Gruber
  • Professionally tested — Load-tested with outlets verified across phases; display and alarms confirmed.
  • Exact fit hardware — Includes the proper 0U vertical mounting solution for NetShelter-style racks.
  • Mixed-voltage flexibility — Power 120 V IT gear and 208 V servers from one PDU.
