APC – AP7800B – Metered PDU – Tested

AP7540
EE
90 Day
AP7540
EE
90 Day

Manufacturer

OEM Part Number

AP7800B

GPS Part Number

AP7800B

Categories

Tags

, , ,

Price:

$625.99

Specifications
View Spec Sheet
Voltage AH/kVA Length Width Height Weight
120 VAC 1440 VA 1.73in 17.48in 4.02in 3.81lb
Voltage 120 VAC
Amp/H 1440 VA
Length 1.73in
Width 17.48in
Height 4.02in
Weight 3.81lb

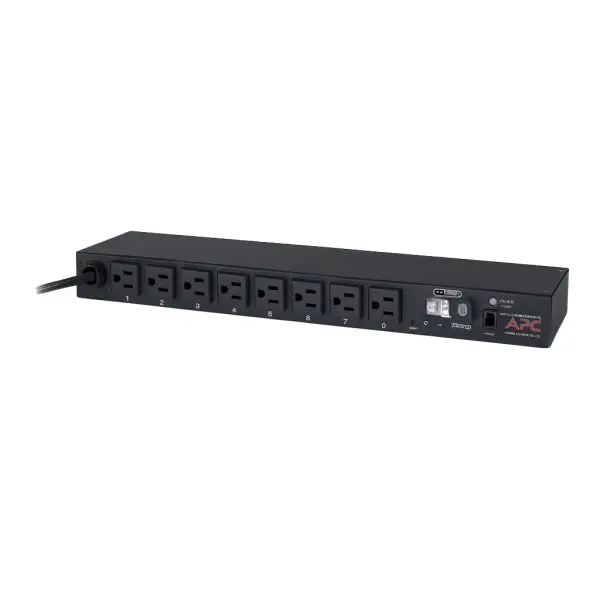

APC NetShelter — Metered Rack PDU (AP7800B)

This is the Tested Version.

SKU: PDU-APC-AP7800B  |
Type: 1U horizontal, Metered rack PDU for 100/120 V single-phase racks (15 A). Provides 8 × NEMA 5-15R outlets and a NEMA 5-15P input on a 12 ft (3.7 m) cord for simple 120 V distribution.

  • Outlet mix: 8 × NEMA 5-15R (120 V).
  • Input: NEMA 5-15P; 12 ft (3.7 m) line cord; 100/120 V, 50/60 Hz.
  • Metered visibility: Local current display helps avoid overloaded circuits (aggregate amps).
  • 1U horizontal: Includes rack brackets and cord-retention bracket(s) for clean installs.
  • Data-center ready: UL/cUL, CSA, METI Denan, VCCI; operating −5–45 °C (23–113 °F), 5–95% RH.

Technical Specifications — AP7800B
Parameter Detail
PDU Type Metered; 1U horizontal
Input 100/120 VAC; NEMA 5-15P; cord length 12 ft (3.7 m); 1 power cord
Line Rated / Max Input Current 12 A line-rated  |  15 A input limit
Output Voltage 120 VAC
Outlets 8 × NEMA 5-15R
Load Capacity 1,440 VA
Frequency 50/60 Hz
Dimensions (H×W×D) 1.73 × 17.48 × 4.02 in (44 × 444 × 102 mm)
Net Weight 3.81 lb (1.73 kg)
Form Factor / Mounting 1U; rack-mounted (horizontal); front or rear mount
Included Hardware Rack mounting brackets; cord-retention bracket(s); installation guide; user manual
Certifications UL Listed; cUL Listed; CSA; METI Denan; VCCI
Standards FCC Part 15 Class A; ICES-003; UL 60950
Environment Operating: 23–113 °F (−5–45 °C), 5–95% RH, 0–10,000 ft  |  Storage: −13–149 °F (−25–65 °C), 5–95% RH
Warranty (mfr.) 2-year repair or replace

Notes & Replacement

AP7800B is the current 1U 120 V Metered PDU with 8 × 5-15R. It supersedes the legacy AP7800 model (discontinued), which APC lists as replaced by AP7800B.

Product Options — Tested vs. Refurbished PDUs
Option Description Warranty
Tested Operationally verified: input/output continuity, load check across all 5-15R outlets, cord/plug inspection, meter readout confirmed. 90‑Day
Refurbished Cleaned and serviced; cosmetic touch-ups as needed; full outlet and meter re-verification after service. 1‑Year

  • Use case: Distribute 120 V power to small/medium rack loads; monitor aggregate current to prevent trips.
  • Space: 1U horizontal footprint fits in dense network racks and short-depth enclosures.
  • Install tip: Use the cord-retention bracket and group loads to keep branch current below the 12 A line rating.

Compatibility & Variants Matrix — 1U 120 V Rack PDUs
Model Input / Plug Outlets Rating / Notes
AP7800B 100/120 V / NEMA 5-15P (12 ft) 8 × NEMA 5-15R Metered, 1U; 1,440 VA; line-rated 12 A.
AP7801B 120 V / NEMA L5-20P (12 ft) 8 × NEMA 5-20R Metered, 1U; 20 A variant for 5-20 loads.
AP7900B 100/120 V / NEMA 5-15P (12 ft) 8 × NEMA 5-15R Switched, 1U; outlet on/off control; 1,440 VA.

Why buy from Gruber
  • Professionally tested — Outlets and meter verified under load; ground/continuity checks documented.
  • Exact fit hardware — Ships with the correct 1U rack brackets and cord-retention pieces.
  • Fleet-friendly — Standard 5-15R outlets simplify cord sets across mixed 120 V IT gear.
