$59.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 200 VAC | 4,992 VA | 3.50in | 17.20in | 3.5in | 14.02lb |
| Voltage | 200 VAC |
| Amp/H | 4,992 VA |
| Length | 3.50in |
| Width | 17.20in |
| Height | 3.5in |
| Weight | 14.02lb |
SKU: PDU-APC-AP7581 ย |

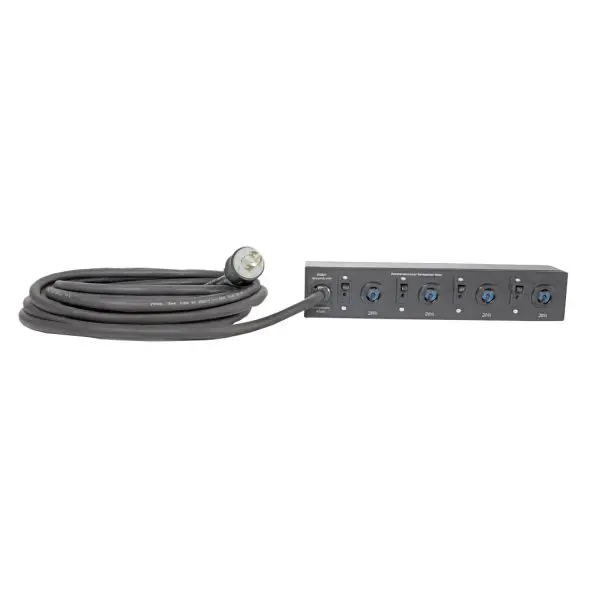

Type: 2U horizontal, Basic rack PDU extender for 200/208ย V single-phase racks. Delivers up to 4,992ย VA with a long 28ย ft (8.5ย m) input cord ending in a locking NEMAย L14-30P, feeding 4ย รย NEMAย L6-20R outlets.
| Parameter | Detail |
|---|---|
| PDU Type | Basic; 2U horizontal rack PDU extender |
| Input Voltage | 200ย V / 208ย V |
| Input Plug / Cord | NEMAย L14-30P; 28ย ft (8.5ย m) cord; 1 power cord |
| Line / Max Current | 24ย A line-rated (30ย A input limit) |
| Output Voltage | 208ย V |
| Outlets | 4ย รย NEMAย L6-20R |
| Load Capacity | 4,992ย VA |
| Frequency | 50/60ย Hz |
| Dimensions (HรWรD) | 3.50 ร 17.20 ร 3.50ย in (8.9 ร 43.7 ร 8.9ย cm) |
| Net Weight | 14.02ย lb (6.36ย kg) |
| Mounting | Rack-mounted; 2U; front or rear mounting location; horizontal orientation |
| Included Hardware | Installation guide; rack mounting brackets |
| Certifications | ULย Listed; cULย Listed; METIย Denan |
| Standards | ULย 1778; CSAย C22.2ย No.ย 107.1 |
| Environment | Operating: 32โ113ย ยฐF (0โ45ย ยฐC), 0โ95% RH; Altitude 0โ10,000ย ft ย |ย Storage: โ13โ149ย ยฐF (โ25โ65ย ยฐC), 0โ95% RH; Altitude 0โ50,000ย ft |
| Warranty (mfr.) | 2-year repair or replace |
AP7581 is a Basic, non-metered PDU extender with a very long L14-30P cord, ideal when the rack feed or UPS is distant.
Need different receptacles? See AP7580 (4ร L5-20R at 120/208ย V) or AP7584 (4ร L6-30R at 200/208ย V). For 230ย V regions with IEC C19 outlets, see AP7585 (4ร C19, 32ย A).
| Option | Description | Warranty |
|---|---|---|
| Tested | Operationally verified PDU: cord/plug inspection, outlet continuity, and load checks on all L6-20R receptacles. | 90โDay |
| Refurbished | Cleaned and serviced; cosmetic touch-ups as needed; full outlet re-verification after service. | 1โYear |
| Model | Input / Plug | Outlets | Rating / Notes |
|---|---|---|---|
| AP7581 | 200/208ย V 1ฯ / NEMAย L14-30P (28ย ft) | 4ย รย NEMAย L6-20R | Basic; 30ย A max (24ย A line-rated); 4,992ย VA. |
| AP7580 | 120/208ย V / NEMAย L14-30P (28ย ft) | 4ย รย NEMAย L5-20R | Basic; 30ย A; 120/208ย V mixed use. |
| AP7584 | 200/208ย V / NEMAย L14-30P (28ย ft) | 4ย รย NEMAย L6-30R | Basic; 30ย A; higher-amp outlet type. |
| AP7585 | 230ย V / hard-wire (region dependent) | 4ย รย IECย C19 | Basic; 32ย A (โ7.36ย kVA) international variant. |
