$449.99
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 120 VAC | 1440 VA | 1.73in | 17.01in | 9.29in | 9.7lb |
| Voltage | 120 VAC |
| Amp/H | 1440 VA |
| Length | 1.73in |
| Width | 17.01in |
| Height | 9.29in |
| Weight | 9.7lb |
SKU: ATS-APC-AP4450A |

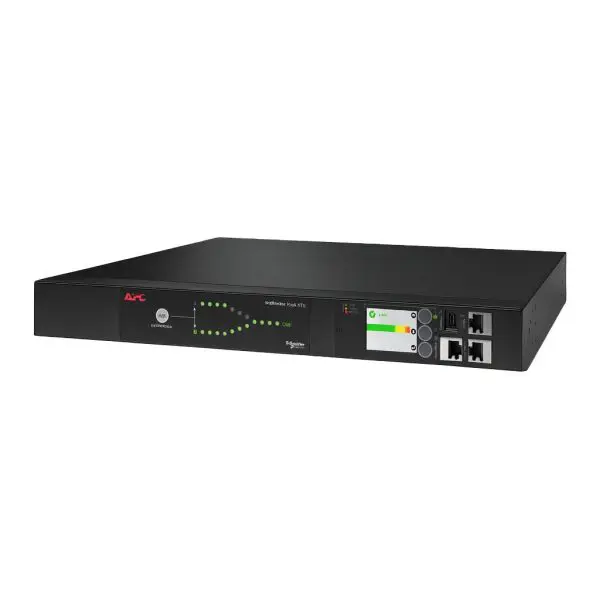

Type: 1U, 15 A Rack Automatic Transfer Switch for 100/120 V single-phase loads. Dual A/B input cords (NEMA 5-15P, 8 ft / 2.4 m each) automatically supply 10 × NEMA 5-15R outlets; rated load capacity 1440 VA.
| Parameter | Detail |
|---|---|
| Product Type | Rack Automatic Transfer Switch (ATS), 1U |
| Input (A & B) | 100/120 VAC, 50/60 Hz; 2 × NEMA 5-15P; cord length 8 ft (2.4 m) each |
| Output | 10 × NEMA 5-15R (120 VAC) |
| Line Rated Current | 15 A (max total output current per phase 15 A) |
| Load Capacity | 1440 VA |
| Protection | Without circuit breaker (external branch protection required per site design) |
| Rack Units | 1U, horizontal mount |
| Dimensions (H×W×D) | 1.73 × 17.01 × 9.29 in (44 × 432 × 236 mm) |
| Net / Ship Weight | 9.7 lb (4.4 kg) | ~13.6 lb (6.17 kg) packaged |
| Provided Equipment | Mounting hardware; rack mounting brackets |
| Certifications | PSE; TÜV-C; TÜV-NURTL; VCCI Class A |
| Standards | FCC Part 15 Class A; ICES-003 |
| Environment | Operating: 23–113 °F (−5–45 °C), 5–95% RH; Altitude 0–10,000 ft Storage: −13–149 °F (−25–65 °C), 5–95% RH; Altitude 0–50,000 ft |
| Warranty (mfr.) | 2-year repair or replace |
AP4450A is part of APC’s fifth-generation NetShelter Rack ATS family with a field-replaceable NMC and optional environmental monitoring. For higher-capacity or different plug/outlet mixes, see the variants in the matrix below.
| Option | Description | Warranty |
|---|---|---|
| Tested | A/B inputs, transfer logic, and all 5-15R outlets verified under load; cords/plugs inspected; NMC communication confirmed. | 90‑Day |
| Refurbished | Cleaned and serviced unit; cosmetic touch-ups as needed; full outlet and failover re-test; NMC reset and firmware check. | 1‑Year |
| Model | Input / Plug(s) | Outlets | Rating / Notes |
|---|---|---|---|
| AP4450A | 2 × NEMA 5-15P (8 ft cords) | 10 × NEMA 5-15R | 1U, 120 V, 15 A, 1440 VA |
| AP4430A | 2 × NEMA L6-20P | 8 × IEC C13; 1 × IEC C19 | 1U, 200/208 V, 20 A, 3300 VA |
| AP4453A | 2 × NEMA L5-30P | 16 × NEMA 5-20R | 2U, 120 V, 30 A |
| AP4423A | 2 × IEC C20 | 8 × IEC C13; 1 × IEC C19 | 1U, 230 V, 16 A |
