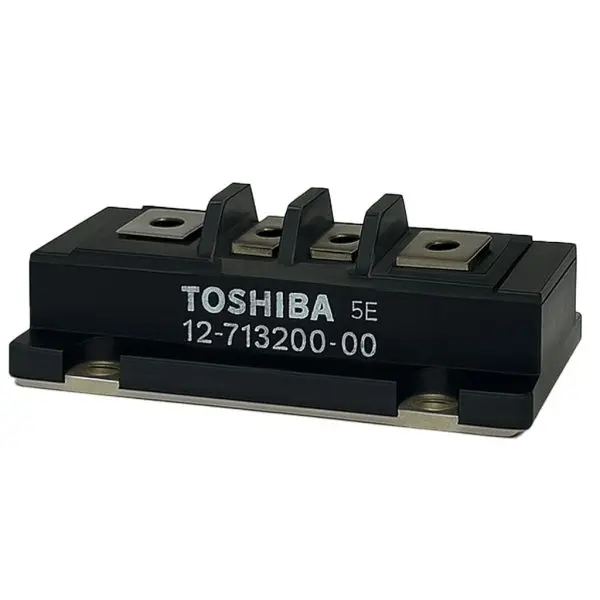

TOSHIBA – 12-713200-00 – IGBT Power Transistor – Reclaimed Part

1bcc7c31-ad17-4e47-a8f9-3085964026d8 copy
EE

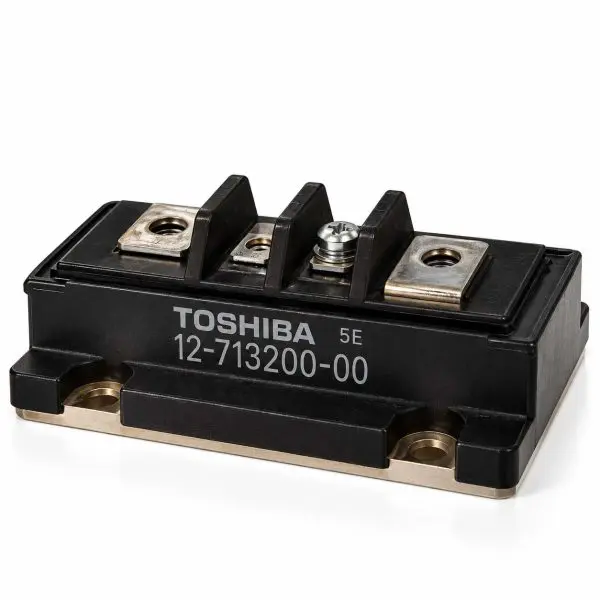

1bcc7c31-ad17-4e47-a8f9-3085964026d8 copy
EE

Manufacturer

OEM Part Number

12-713200-00

GPS Part Number

27-TOS-12-713200-00

Categories

Tags

Price:

$23.56

Specifications
Voltage WPC AH/kVA Length Width Height Weight
600 V N/A 200 A N/A N/A N/A 1.01192 lbs
Voltage 600 V
WPC N/A
Amp/H 200 A
Length N/A
Width N/A
Height N/A
Weight 1.01192 lbs

Toshiba — 12-713200-00 Power Transistor Module 600 V • 200 A • Single Power-Switch Module • Industrial Heatsink-Mount Package
What it is

The Toshiba 12-713200-00 is a legacy 600 V, 200 A high-current power transistor module designed for industrial power-switching equipment. Legacy Toshiba semiconductor catalogs identify the device as a 200 A / 600 V GTR power module in a single-element 1U configuration.

Designed for high-current power conversion and switching applications, this module is suitable for service and repair of compatible UPS systems, industrial inverters, motor-drive equipment, DC choppers and other legacy power-electronic assemblies. Because this is an older OEM-style Toshiba part number, the electrical configuration and drive requirements should be verified against the original equipment documentation before substitution.

At-a-Glance
  • Manufacturer: Toshiba
  • Part Number: 12-713200-00
  • Voltage Rating: 600 V
  • Current Rating: 200 A
  • Device Class: High-current power transistor / GTR module
  • Configuration: Single-element / 1U power module
  • Mounting: Industrial heatsink-mounted power module
  • Applications: UPS systems; industrial inverters; motor drives; DC choppers; power-conversion equipment
Features
  • 600 V power class — designed for substantial industrial power-switching applications.
  • 200 A current capability — high-current module intended for demanding power-conversion equipment.
  • Single-element construction — legacy Toshiba 1U power-module configuration.
  • Industrial module package — designed for direct mounting to an appropriate heatsink.
  • Legacy equipment support — useful for repair and maintenance of systems originally engineered around the Toshiba 12-713200-00.
Technical Specifications
Parameter Value
Manufacturer Toshiba
Part Number 12-713200-00
Device Classification Legacy power transistor / GTR module
Voltage Rating 600 V
Current Rating 200 A
Configuration Single-element / 1U power module
Package Type Industrial power semiconductor module
Mounting Heatsink-mounted power module
Typical Applications UPS systems; industrial inverters; motor drives; DC choppers; legacy power-conversion equipment
Replacement Requirement Verify semiconductor type, internal circuit, drive requirements, terminal configuration and mechanical dimensions before substitution
Applications / Replacement Considerations
Module Representative Applications Replacement Notes
12-713200-00 UPS systems; industrial inverters; motor drives; DC choppers; power-conversion equipment Verify the original equipment circuit, semiconductor drive requirements, terminal arrangement, voltage/current ratings and mechanical fit before substitution.
Why Buy from Gruber
  • Power electronics expertise — Decades of experience supporting UPS, inverter and critical-power systems.
  • Legacy component support — Hard-to-find and obsolete power semiconductor modules for maintaining legacy equipment.
  • Replacement assistance — Help matching electrical configuration, ratings and mechanical fit for legacy power equipment.
