EUPEC / Infineon – BSM600GA120DLC – IGBT Power Module – 1200V 600A – Reclaimed Part

eupec / Infineon — BSM600GA120DLC IGBT Power Module 1200 V • 600 A Class • Single IGBT (1U) with EmCon Freewheel Diode • 62 mm C-Series • Isolated Baseplate

What it is

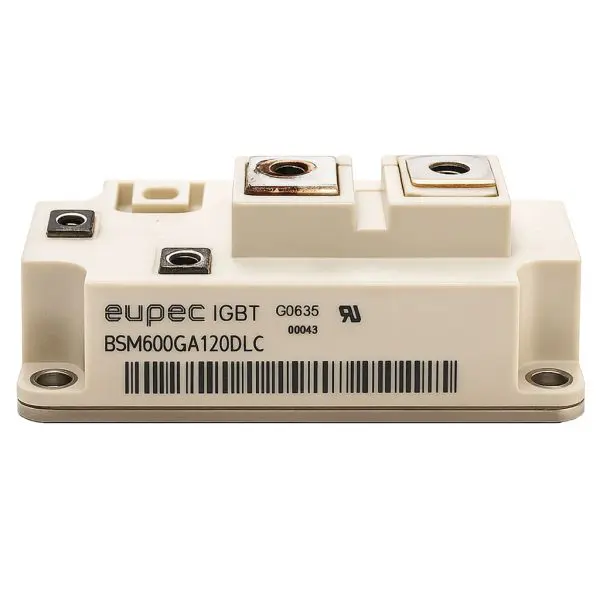

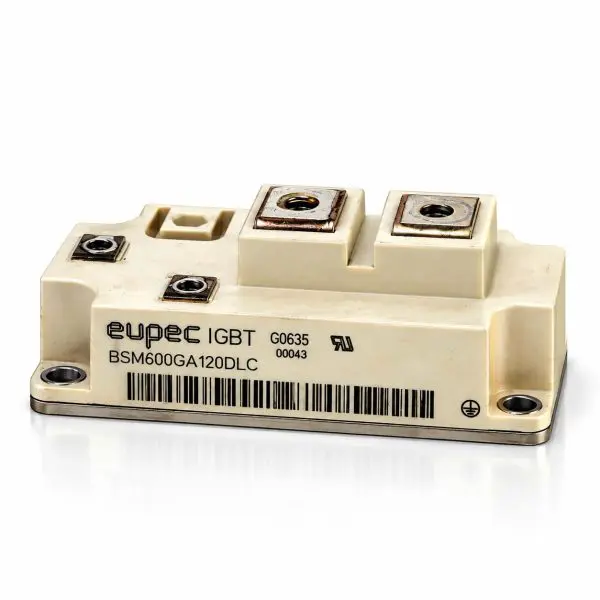

The eupec BSM600GA120DLC is a 1200 V, 600 A-class single-switch IGBT power module from the 62 mm C-Series. It combines a low-loss IGBT2 switching element with an integrated EmCon freewheel diode in an industrial isolated-base power package.

Designed for high-current power conversion, the BSM600GA120DLC is suited to UPS inverter stages, industrial motor drives, DC-link choppers, power converters, welding equipment and other high-power switching systems. Its 62 mm screw-terminal construction provides a robust electrical connection and an efficient thermal interface to the system heatsink.

At-a-Glance

• Voltage Rating: 1200 V V_CES
• Current Class: 600 A
• Device Type: Single N-channel IGBT power module
• Configuration: 1U / single-switch
• IGBT Technology: Low-loss IGBT2
• Integrated Diode: EmCon freewheel diode
• Package: 62 mm C-Series power module
• Applications: UPS systems; industrial drives; DC choppers; converters; welding and high-power switching

Features

• 1200 V power class — designed for high-voltage industrial power-conversion systems.
• 600 A-class current capability — intended for high-current inverter and switching stages.
• Low-loss IGBT2 technology — optimized for efficient high-power switching.
• EmCon freewheel diode — integrated diode technology designed for efficient commutation with inductive loads.
• Low conduction loss — V_CE(sat) approximately 2.1 V typical under specified datasheet conditions.
• 62 mm C-Series construction — heavy-duty screw-terminal package for industrial busbar and heatsink assemblies.
• Isolated baseplate — simplifies heatsink mounting and electrical isolation.

Technical Specifications

Applications / Replacement Considerations
