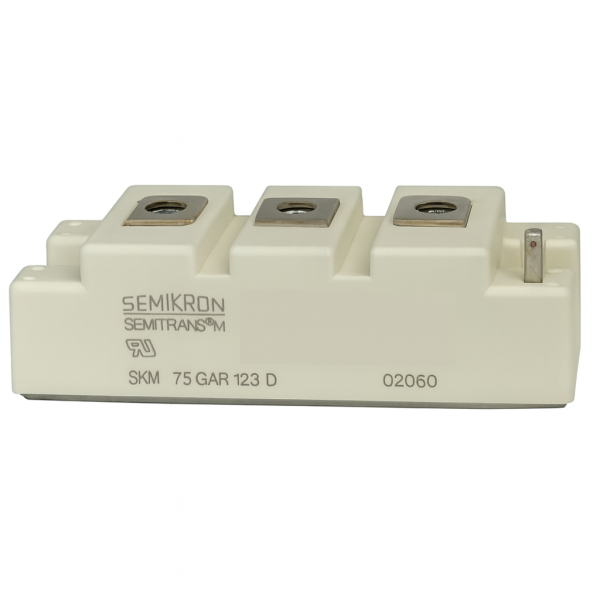

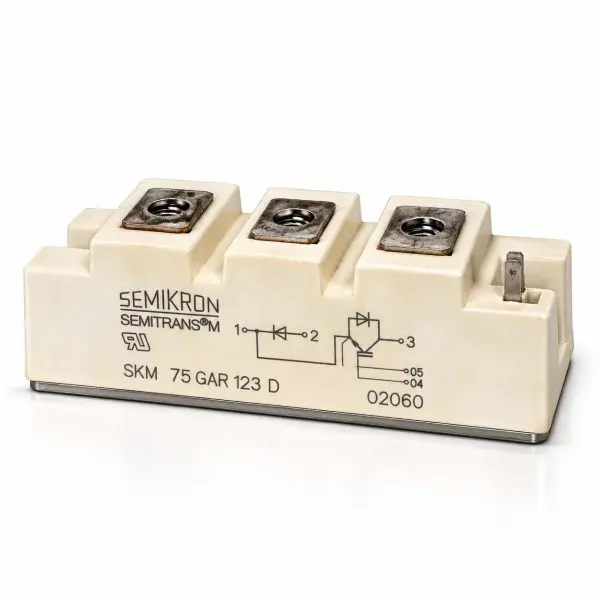

Semikron – SKM75GAR123D – IGBT Chopper / Booster Power Module – 1200V 75A – Reclaimed Part

e9ba7d3c-799a-46c0-89a6-ef7fd8dd7ed3 copy
EE
e9ba7d3c-799a-46c0-89a6-ef7fd8dd7ed3 copy
EE

Manufacturer

OEM Part Number

SKM-75GAR-123D-02060

GPS Part Number

27-SEM-SKM-75GAR-123D-02060

Categories

Tags

Price:

$49.23

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1200 V N/A 75 A N/A N/A N/A ≈ 750 g
Voltage 1200 V
WPC N/A
Amp/H 75 A
Length N/A
Width N/A
Height N/A
Weight ≈ 750 g

Semikron — SKM75GAR123D IGBT Power Module 1200 V • 75 A • GAR Chopper / Booster Configuration • Integrated CAL Freewheel Diode • Isolated Baseplate • SEMITRANS 2
What it is

The Semikron SKM75GAR123D is an industrial-grade 1200 V, 75 A IGBT power module from the SEMITRANS 2 family. Its GAR circuit configuration is designed for chopper and booster applications and combines a high-power IGBT switching element with an integrated fast, soft-recovery CAL diode.

Designed for high-power switching rather than linear operation, the SKM75GAR123D provides a compact power stage for UPS systems, DC-link switching, industrial inverters, motor-drive power electronics and switched-mode power supplies. The electrically isolated copper baseplate simplifies heatsink mounting while maintaining electrical isolation between the power circuit and cooling surface.

At-a-Glance
  • Voltage Rating: 1200 V VCES
  • Current Rating: 75 A IC class
  • Topology: GAR chopper / booster IGBT configuration
  • Freewheel Diode: Integrated fast, soft-recovery CAL diode
  • Gate Voltage: ±20 V VGES
  • Baseplate: Electrically isolated copper baseplate using DCB technology
  • Package: SEMITRANS 2 • 94 × 34 × 30 mm
  • Applications: Chopper/booster stages; UPS; industrial inverters; motor drives; switched-mode power supplies
Features
  • 1200 V / 75 A power class — designed for industrial high-voltage switching applications.
  • GAR chopper / booster configuration — optimized for DC-link, boost and controlled switching stages.
  • Integrated CAL diode — fast, soft-recovery diode technology reduces reverse-recovery stress in switching circuits.
  • Short-circuit capability — designed for short-circuit withstand under the operating and gate-drive conditions specified by Semikron.
  • Low-inductance SEMITRANS construction — supports efficient high-current switching with reduced parasitic inductance.
  • Electrically isolated baseplate — simplifies heatsink installation and electrical isolation in industrial power assemblies.
  • Rugged industrial package — SEMITRANS 2 construction designed for repeated electrical and thermal cycling.
Technical Specifications
Parameter Value
Manufacturer Semikron
Part Number SKM75GAR123D
Customer / Option Code SKM-75GAR-123D-02060 — verify OEM option requirements before substitution
Product Family SEMITRANS 2
Device Type IGBT power module with integrated CAL diode
Circuit Configuration GAR chopper / booster configuration
Collector-Emitter Voltage (VCES) 1200 V
Continuous Collector Current (IC) 75 A @ TC = 25°C
Gate-Emitter Voltage (VGES) ±20 V
Typical Collector-Emitter Saturation Voltage Approx. 3.2 V class under specified datasheet conditions
IGBT Technology N-channel power IGBT
Integrated Diode Fast, soft-recovery CAL freewheel diode
Thermal Resistance Rth(j-c) — IGBT 0.30 K/W
Case-to-Heatsink Thermal Resistance Rth(c-h) 0.05 K/W class
Maximum Junction Temperature 150°C class
Baseplate Electrically isolated copper baseplate using DCB technology
Package SEMITRANS 2
Dimensions 94 × 34 × 30 mm
Mounting Screw-terminal, heatsink-mounted industrial power module
Configuration Single IGBT switching stage / GAR chopper-booster topology with integrated diode
Applications / Replacement Considerations
Module Representative Applications Replacement Notes
SKM75GAR123D Chopper and booster stages; UPS systems; industrial inverters; motor drives; DC-link switching; switched-mode power supplies Verify 1200 V rating, 75 A current class, GAR circuit topology, gate-drive requirements, terminal configuration, dimensions and thermal characteristics before substitution. GAR, GAL and GB versions are electrically different configurations and should not be treated as interchangeable solely because they share the SEMITRANS housing.
Why Buy from Gruber
  • Power electronics expertise — Decades of experience supporting UPS, inverter and critical-power systems.
  • Legacy component support — Hard-to-find and obsolete IGBT power modules for maintaining legacy equipment.
  • Replacement assistance — Help matching GAR, GAL and GB circuit configurations, electrical ratings and mechanical fit for legacy power equipment.
