$35.29
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 1600 V | N/A | 130 A | N/A | N/A | N/A | 510 g |
| Voltage | 1600 V |
| WPC | N/A |
| Amp/H | 130 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 510 g |

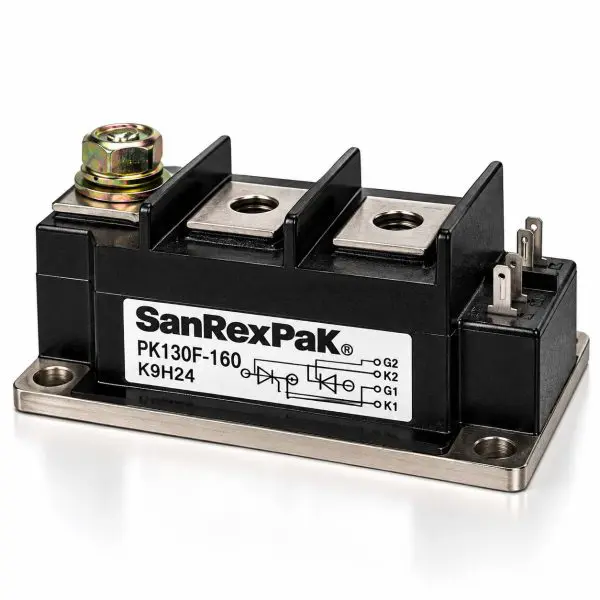

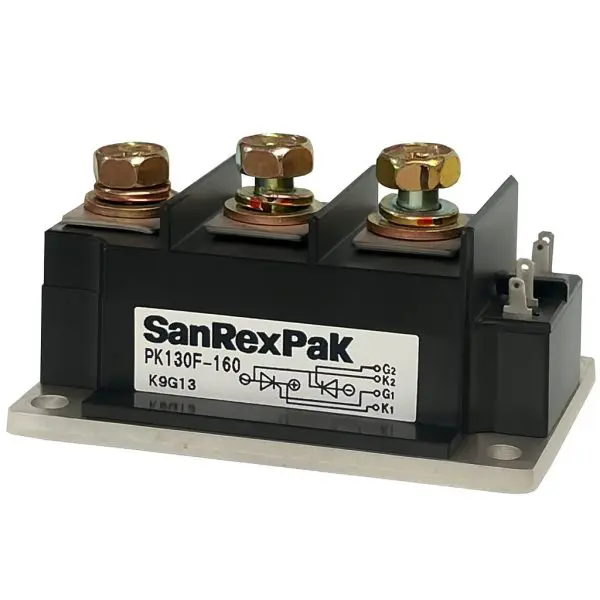

The SanRex PK130F-160 is a 1600 V, 130 A power thyristor module designed for industrial rectifier circuits and power-control applications. The PK130F family incorporates two semiconductor elements in a single package with an electrically isolated mounting base, simplifying heatsink installation and mechanical design.
With high surge-current capability, 200 A/µs di/dt capability and 500 V/µs dv/dt immunity, the PK130F-160 is suited to demanding rectifier, AC/DC motor-drive, heater-control, light-dimmer and static-switching applications.
| Parameter | Value |
| Manufacturer | SanRex (Sansha Electric) |
| Part Number | PK130F-160 / PK130F160 |
| Device Type | Dual-element power thyristor module — PK configuration |
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Repetitive Peak Off-State Voltage (VDRM) | 1600 V |
| Non-Repetitive Peak Reverse Voltage (VRSM) | 1700 V |
| Average On-State Current (IT(AV)) | 130 A — single-phase half-wave, 180° conduction, Tc = 90°C |
| RMS On-State Current (IT(RMS)) | 205 A — single-phase half-wave, 180° conduction, Tc = 90°C |
| Surge On-State Current (ITSM) | 4000 A @ 50 Hz / 4400 A @ 60 Hz — ½-cycle peak, non-repetitive |
| I²t | 80,000 A²s — one cycle of surge current |
| Peak On-State Voltage (VTM) | 1.40 V max @ IT = 400 A, Tj = 25°C |
| Gate Trigger Current / Voltage (IGT / VGT) | 100 mA max / 3.0 V max @ Tj = 25°C |
| Non-Trigger Gate Voltage (VGD) | 0.25 V min @ Tj = 125°C |
| Holding Current (IH) | 50 mA typical @ Tj = 25°C |
| Latching Current (IL) | 100 mA typical @ Tj = 25°C |
| Turn-On Time (tgt) | 10 µs max |
| Critical dv/dt | 500 V/µs minimum |
| Critical di/dt | 200 A/µs |
| Off-State Leakage Current (IDRM) | 50 mA max @ VDRM, Tj = 125°C |
| Reverse Leakage Current (IRRM) | 50 mA max @ VRRM, Tj = 125°C |
| Thermal Impedance Rth(j-c) | 0.20°C/W max — junction to case |
| Isolation Voltage (VISO) | 2500 VRMS AC for 1 minute |
| Operating Junction Temperature | −40°C to +125°C |
| Storage Temperature | −40°C to +125°C |
| Mounting Hardware / Torque | M5 — 1.5–2.5 N·m recommended |
| Power Terminal / Torque | M8 — 8.8–10 N·m recommended |
| Mass | Approx. 510 g |
| Configuration | PK130F dual-element internal configuration |
| Module | Applications | Notes |
| PK130F-160 | Rectifiers; AC/DC motor drives; heater controls; light dimmers; static switches | Verify PK internal configuration, voltage/current ratings, gate connections, terminal layout and mechanical fit before substitution. |
