| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 1200 V | N/A | 230 A | N/A | N/A | N/A | 310 grams |
| Voltage | 1200 V |
| WPC | N/A |
| Amp/H | 230 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 310 grams |

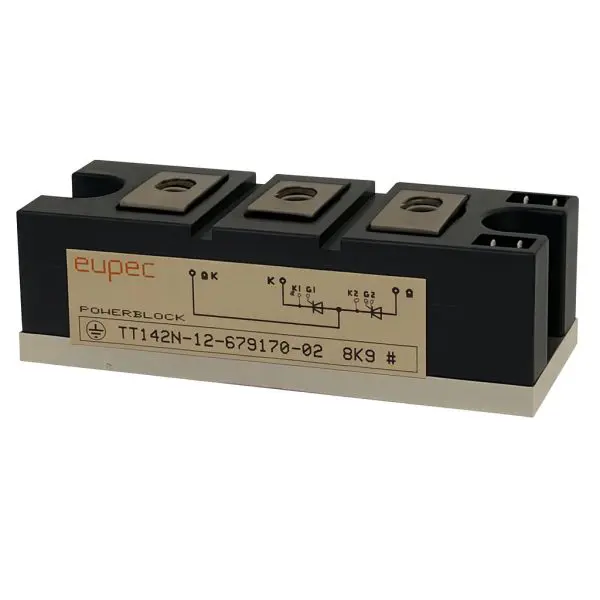

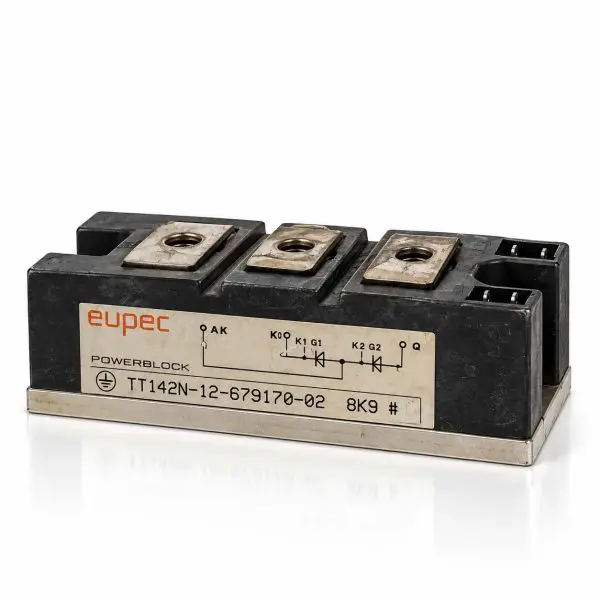

1200Â V dual phase-control thyristor module in the compact 94Â mm class. Rated 142Â A average per arm at
TC=85 °C with very high surge capability, this block is common in soft-starts, rectifiers, and UPS front-ends.
The isolated baseplate and robust gate characteristics simplify thermal design and service.
| Parameter | Value |
| Manufacturer | eupec / Infineon Technologies |
| Part Number | TT142N-12 (suffix 679170-02-8K9) |
| Device Type | Dual phase-control thyristor module (inverse-parallel) |
| Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) | 1200Â V |
| Max RMS On-State Current (ITRMSM) | 230Â A |
| Average On-State Current (per arm) | ITAVM = 142 A @ TC=85 °C |
| Surge Current (10 ms) | ITSM = 4.8 kA (25 °C) / 4.1 kA (Tvj max) |
| I²t (10 ms) | 115 kA²s (25 °C) / 84 kA²s (Tvj max) |
| Critical di/dt | ≈ 150 A/µs |
| Critical dv/dt | ≈ 1000 V/µs (at specified conditions) |
| Circuit Commutated Turn-off Time (tq) | typ. ~200 µs |
| On-State Voltage (vT) | max. ~1.56Â V @ iT=500Â A, Tvj max |
| Thermal RthJC | ≈ 0.22 °C/W per arm (180° sin) |
| Thermal RthCH | ≈ 0.06 °C/W per arm |
| Isolation Test Voltage | 2.5Â kV RMS/1Â min; 3.0Â kV RMS/1Â s |
| Operating / Storage | TC,op −40…+125 °C / Tstg −40…+130 °C |
| Package / Footprint | ~94 × 34 × 30 mm body; M6 terminals; DIN 46244 A 2.8×0.8 control tabs |
| Weight | ≈ 310 g |
| Configuration | Dual (two SCRs, inverse-parallel) |
| Module | Applications | Notes |
| TT142N-12 (679170-02-8K9) | Soft-starts; controlled rectifiers; AC voltage regulators; UPS input bridges | Confirm gate/aux pinout and mechanical stack-up vs. OEM drawings; maintain isolation and heatsink flatness. |
