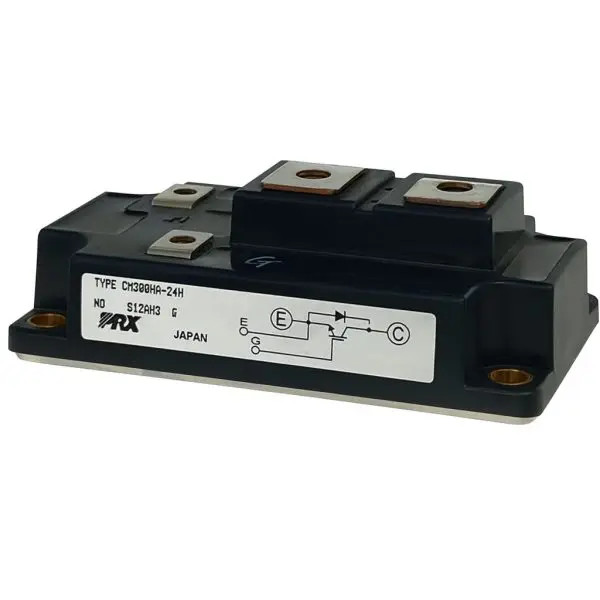

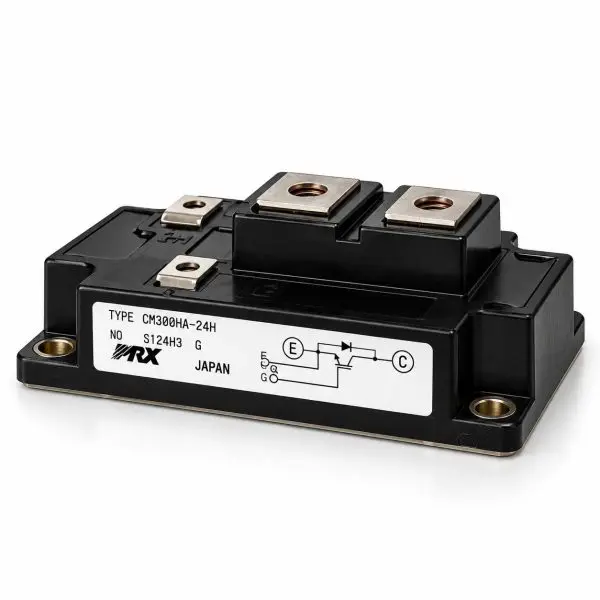

The Powerex CM300HA-24H is a high-power 1200 V, 300 A single IGBT module designed for demanding industrial power-conversion applications. The module combines a high-current IGBT with an antiparallel super-fast free-wheel diode in a rugged screw-terminal package with an electrically isolated baseplate.
Designed for high-voltage switching applications, the CM300HA-24H is well suited for UPS inverter and rectifier stages, industrial motor drives, variable-frequency drives, DC-link choppers, welding equipment, laser power supplies, and other high-power converters. Its 1200 V blocking capability provides substantial voltage headroom while the 300 A collector-current rating supports high-power inverter architectures.
The single-switch configuration makes the CM300HA-24H particularly useful in equipment where individual IGBT modules are arranged into custom half-bridge, full-bridge, or three-phase power stages. An isolated baseplate simplifies heatsink mounting while maintaining electrical separation between the power semiconductor circuit and equipment chassis.
| Parameter | Value |
| Manufacturer | Powerex / Mitsubishi Electric |
| Part Number | CM300HA-24H |
| Device Type | Single IGBT power module with antiparallel super-fast diode |
| Configuration | Single / 1-pack |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) | 300 A |
| Pulse Collector Current | Up to approximately 600 A |
| Maximum Collector Dissipation | Approximately 2.0 kW @ TC=25 °C |
| VCE(sat) | Approximately 1.9–2.1 V typical / approximately 2.7 V max @ VGE=15 V, IC=300 A, 25 °C |
| Gate-Emitter Voltage (VGES) | ±20 V maximum |
| Gate Threshold VGE(th) | Approximately 5–7 V; 6 V typical |
| Input Capacitance (Cies) | Approximately 80 nF typical |
| Output Capacitance (Coes) | Approximately 3.5 nF typical |
| Reverse Transfer Capacitance (Cres) | Approximately 1.6 nF typical |
| Turn-On Delay | Approximately 120 ns typical |
| Rise Time | Approximately 150 ns typical |
| Turn-Off Delay | Approximately 350 ns typical |
| Fall Time | Approximately 250 ns typical |
| Free-Wheel Diode | Integrated antiparallel super-fast recovery diode |
| Diode Forward Voltage | Approximately 2.5–3.2 V @ 300 A |
| Diode Reverse-Recovery Time | Approximately 0.30 µs |
| Reverse-Recovery Charge | Approximately 12 µC |
| Thermal Resistance — IGBT | RthJC approximately 0.06 °C/W |
| Thermal Resistance — Diode | RthJC approximately 0.12 °C/W |
| Case-to-Fin Thermal Resistance | RthCF approximately 0.02 °C/W with thermal compound |
| Isolation Voltage | 2.5 kV RMS / 1 minute, terminals-to-baseplate |
| Operating Junction Temperature | −40 °C to +150 °C |
| Storage Temperature | −40 °C to +125 °C |
| Package / Footprint | 62 mm-class single IGBT module; screw terminals; isolated baseplate |
| Approximate Dimensions | 108 × 62 × 29–30 mm class |
| Approximate Weight | 400–600 g class |
| Typical Hardware Torque | Approximately 4.5 N·m / 40 in-lb for applicable M6 hardware |
| Condition | Reclaimed Part |
| Module | Applications | Replacement Notes |
| CM300HA-24H | UPS inverter/rectifier stages; industrial motor drives; VFDs; DC-link choppers; welding equipment; laser supplies; high-power industrial converters | Verify the complete CM300HA-24H part number, gate and emitter connections, mounting footprint, bus voltage, gate-drive requirements, and thermal specifications before installation. |
