IXYS – MCC-255-16-I01 – IGBT Power Transistor – Reclaimed Part

MCC-255-16-I01_1
EE
MCC-255-16-I01_1
EE

Manufacturer

,

OEM Part Number

MCC-255-16-I01

GPS Part Number

27-INF-MCC-255-16-I01

Categories

Tags

Price:

$98.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1600 V N/A 450 A N/A N/A N/A 750 g
Voltage 1600 V
WPC N/A
Amp/H 450 A
Length N/A
Width N/A
Height N/A
Weight 750 g

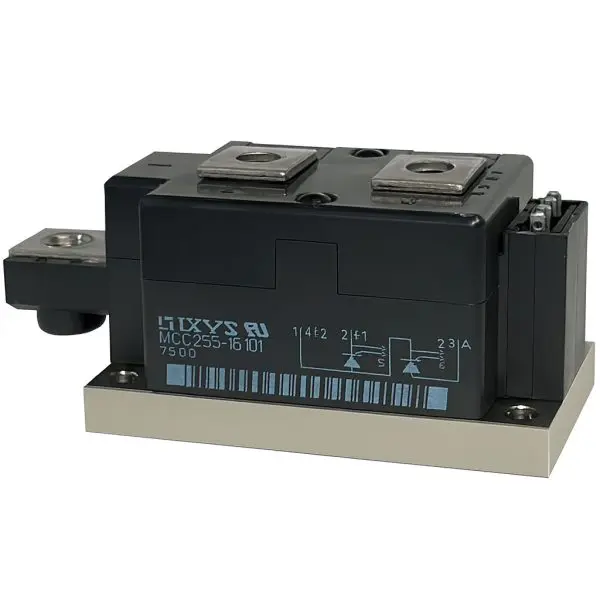

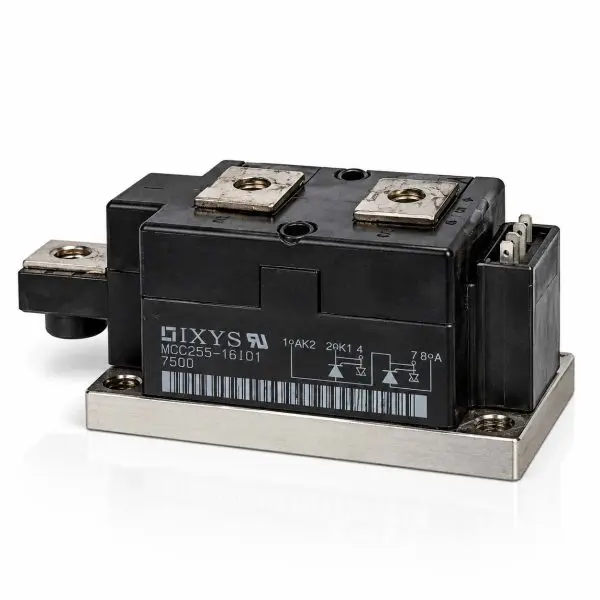

IXYS / Littelfuse — MCC255-16io1 Thyristor Module
1600 V •
250 A ITAV •
Dual phase-control thyristors (inverse-parallel) •
Isolated baseplate (Y1-CU)
What it is

1.6 kV, 250 A (average per arm) dual SCR block in the Y1-CU package. With 9.2 kA 10 ms surge capability,
3.6 kV isolation, and keyed gate/cathode pins, it’s a solid choice for soft-starts, controlled rectifiers, AC regulators,
and UPS front-ends.

At-a-Glance
  • Voltage / Current: 1600 V / 250 A ITAV (per arm)
  • Topology: Dual thyristor (inverse-parallel), phase-control
  • Mounting: Screw-mount, isolated DCB Al2O3 on copper baseplate (Y1-CU)
  • Use Cases: Soft-starts; controlled rectifiers; AC regulators; UPS input bridges
  • Condition Options: NOS or tested reclaimed pulls
Features
  • High surge strength — ITSM up to 9.2 kA (10 ms).
  • Rugged dynamics — (dv/dt)cr ≈ 1000 V/µs; typical tq ≈ 200 µs.
  • Low on-state model — VT0 ≈ 0.8 V, rT ≈ 0.68 mΩ.
  • Robust isolation — 3.6 kVRMS baseplate isolation.
Technical Specifications
Parameter Value
Manufacturer IXYS / Littelfuse
Part Number MCC255-16io1
Device Type Dual phase-control thyristor module (inverse-parallel)
Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) 1600 V
RMS On-State Current (ITRMS) 450 A
Average On-State Current (per arm) ITAV = 250 A @ TC=85 °C (180° sine)
Surge On-State Current (10 ms) ITSM = 9.2 kA (typical)
I²t (10 ms) ≈ 1.05 MA²·s (series value)
Critical dv/dt ≈ 1000 V/µs
Turn-off Time (tq) ≈ 200 µs (typical)
On-State Model VT0 ≈ 0.8 V; rT ≈ 0.68 mΩ
Gate Trigger / Holding Current IGT max ≈ 150 mA; IH max ≈ 150 mA
Thermal Resistance RthJC (thyristor) ≈ 0.14 K/W; RthCH ≈ 0.04 K/W
Isolation Test Voltage 3.6 kVRMS / 1 min
Operating Junction Max TVJM = 140 °C; ratings referenced at TC=85 °C
Package / Footprint Y1-CU module; screw terminals; isolated base
Configuration Dual (two SCRs, inverse-parallel)
Compatibility / Representative Uses
Module Applications Notes
MCC255-16io1 Soft-starts; controlled rectifiers; AC voltage regulators; UPS input bridges Confirm gate/aux pinout and mechanical stack-up vs. OEM drawings; maintain isolation and heatsink flatness.
Why buy from Gruber
  • Tested pulls & new stock — Gate behavior verified, continuity checked, base flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We help match the exact variant and hardware to your frame for a drop-in fix.

Related products

Post Views: 254
