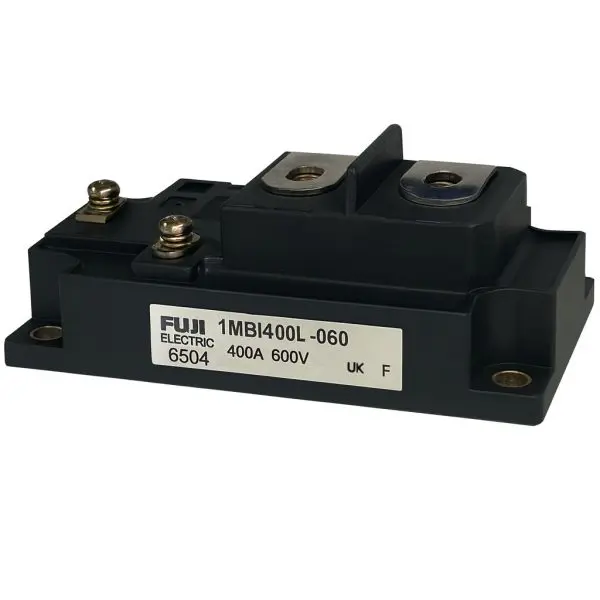

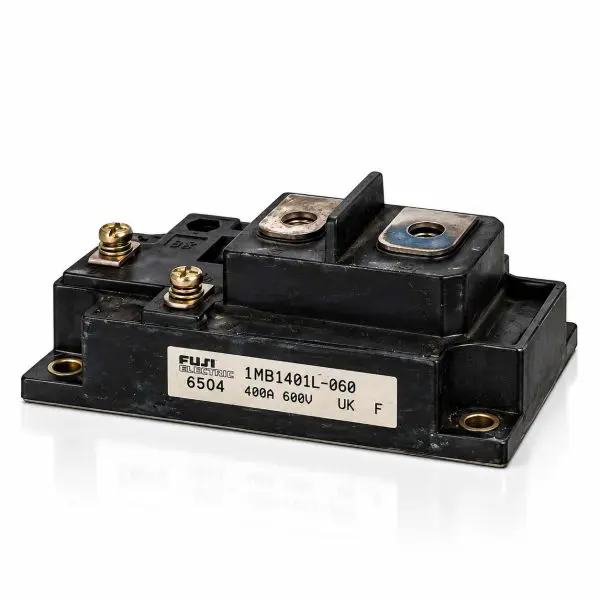

FUJI – 1MBI400L 060 – IGBT Power Transistor – Reclaimed Part

1MBI400L-060_2
EE
1MBI400L-060_2
EE

Manufacturer

OEM Part Number

1MBI400L 060

GPS Part Number

27-FUJ-1MBI400L 060

Categories

Tags

Price:

$110.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
600 V N/A 400 A N/A N/A N/A 480 grams
Voltage 600 V
WPC N/A
Amp/H 400 A
Length N/A
Width N/A
Height N/A
Weight 480 grams

Fuji Electric — 1MBI400L-060 IGBT Module
600 V •
400 A •
Single IGBT (1-pack) with antiparallel fast diode •
Isolated baseplate
What it is

600 V, 400 A single IGBT from Fuji’s L-series. Common in UPS bridges, industrial drives, and high-power
converters. Integrated fast free-wheel diode and insulated baseplate simplify thermal and EMC design.

At-a-Glance
  • Voltage / Current: 600 V / 400 A
  • Topology: Single IGBT (1-pack) with antiparallel diode
  • Mounting: Screw-mount, isolated baseplate
  • Use Cases: UPS inverter/rectifier stages; industrial motor drives; DC-link choppers; welding/laser supplies
  • Condition Options: New old stock or tested reclaimed pulls
Features
  • Low conduction loss — L-series device optimized for fast switching and low VCE(sat).
  • Clean commutation — Fast FWD with short recovery for inductive loads and bridges.
  • Robust isolation — High dielectric strength between baseplate and terminals.
  • Service-friendly — Widely used Fuji single-pack footprint.
Technical Specifications
Parameter Value
Manufacturer Fuji Electric
Part Number 1MBI400L-060
Device Type Single IGBT module (1-pack) with antiparallel diode
Collector-Emitter Voltage (VCES) 600 V
Collector Current (IC) 400 A (module rating)
Power Dissipation (Ptot) See datasheet (application-dependent)
VCE(sat) (typ.) See datasheet (L-series low-loss design)
Gate-Emitter Voltage (max) ±20 V
Isolation High-pot tested baseplate-to-terminals (typ. 2.5 kVRMS/1 min)
Operating Junction Range −40 °C to +150 °C (series typical)
Package / Footprint Single-pack screw-terminal module; isolated baseplate
Configuration Single (1-pack)
Compatibility / Representative Uses
Module Applications Notes
1MBI400L-060 UPS inverter/rectifier bridges; high-power motor drives; energy-storage choppers; welding/laser power Verify gate/aux pinout and footprint vs. OEM drawings; maintain isolation and heatsink flatness.
Why buy from Gruber
  • Tested pulls & new stock — Gate/diode checked, continuity verified, baseplate flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We match the exact module variant and hardware to your frame for a drop-in fix.
