$1,000.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 160 – 1000 V | 80 A | 10" | 9" | 12" | 30 lbs |
| Voltage | 160 – 1000 V |
| Amp/H | 80 A |
| Length | 10" |
| Width | 9" |
| Height | 12" |
| Weight | 30 lbs |

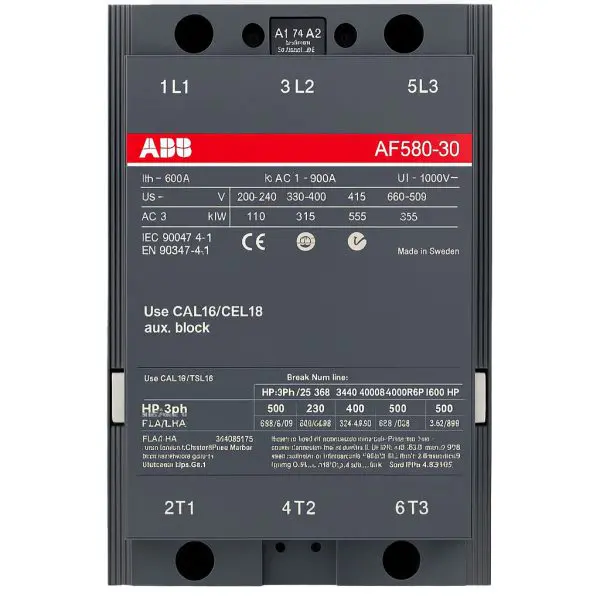

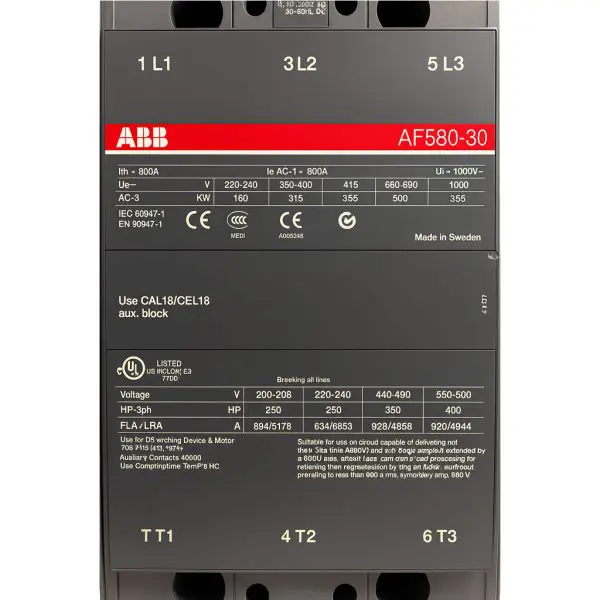

Genuine ABB AF-series contactor professionally removed from a functioning system, then cleaned, inspected, and shop-tested. A fast, like-for-like replacement when uptime matters.
| Parameter | Detail |
|---|---|
| Manufacturer | ABB |
| Part number | AF580-30 (3 NO main; typical aux by suffix: “-11” = 1 NO + 1 NC) |
| Utilization category | AC-3 (motor duty) |
| Rated operational current (Ie) | AC-1: 800 A (40 °C) • AC-3: 580 A @ 220–440 V, 500 A @ 690 V, 250 A @ 1000 V (55 °C) |
| Rated operational power (Pe) | AC-3: 160 kW @ 220/230/240 V • 315 kW @ 380/400 V • 355 kW @ 415/440/500 V • 500 kW @ 690 V • 355 kW @ 1000 V |
| Rated operational voltage (Ue) | Up to 1000 V AC (Ui 1000 V; Uimp 8 kV) |
| Control circuit (coil) | Wide-range electronic coil 100–250 V AC/DC (built-in surge suppression) |
| Poles & auxiliaries | 3 main NO; auxiliaries per suffix (e.g., “-11” = 1 NO + 1 NC) |

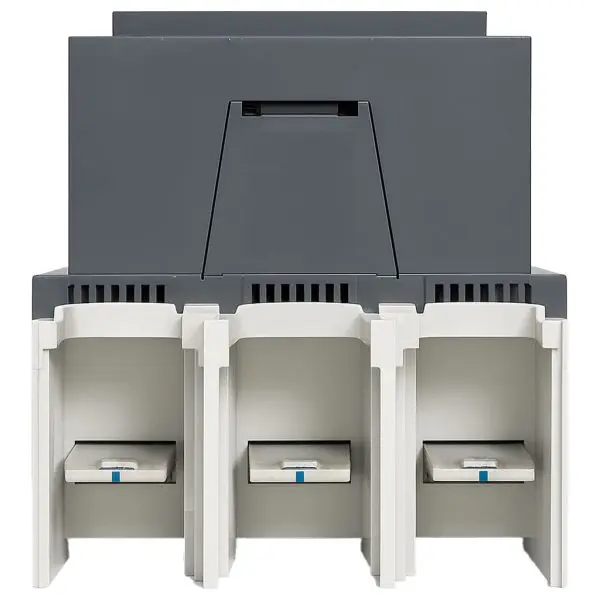

| Terminations | Main circuit bars; main terminals IP00; coil terminals IP20 |
| Mounting | Panel mount (AF580 frame) |
| Dimensions (H × W × D) | 283 mm × 210 mm × 242 mm (11.14 in × 8.27 in × 9.53 in) |
| Weight | 13.6 kg (~30.0 lb) |
| Compliance | IEC 60947-4-1; UL/CSA as marked |
| Condition | Tested pull — cleaned, inspected, verified; light cosmetic wear only |
| Option | What’s included | Warranty |
|---|---|---|
| Tested Pull | Cleaned, inspected, verified operation; intact labels; ready to install | 90‑Day |
