$18,441.96
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 391 Volts | N/A | 283 Amps | 32.5″ | 49″ | 71″ | 5275 lb |
| Voltage | 391 Volts |
| WPC | N/A |
| Amp/H | 283 Amps |
| Length | 32.5″ |
| Width | 49″ |
| Height | 71″ |
| Weight | 5275 lb |

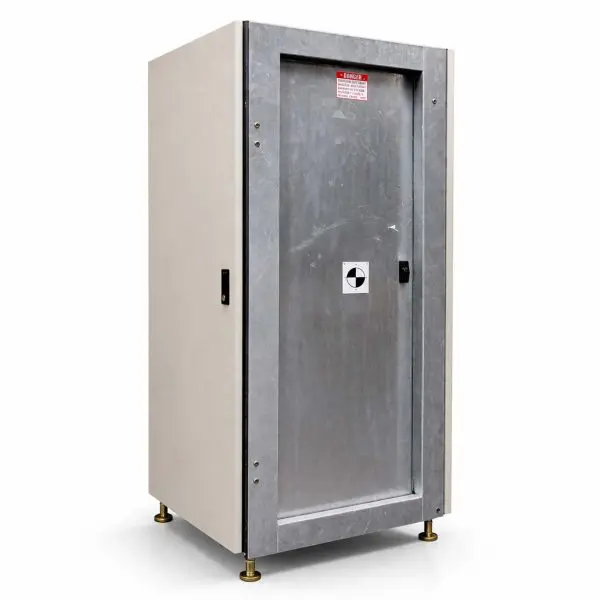

Factory-matched line-up battery cabinet for Liebert Npower UPS systems. Large cabinets (RJ size) provide higher cell capacity
in a compact footprint. Each unit is reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | Passive VRLA battery cabinet matched to Liebert Npower UPS; no AC power conversion in cabinet |
| Input | None (cabinet only — connects to UPS DC bus) |
| Output | DC energy storage for UPS; cabinet strings configured to the UPS DC bus (typ. 480 Vdc for 480 Vac systems) |
| Bypass | Not applicable (use UPS maintenance bypass/MBB as required) |
| Short-Circuit / AIC | Coordinate DC protection with site one-line; cabinet-level DC disconnects as equipped (RBB/panel) |
| Battery System | VRLA strings; Large (RJ) cabinet footprint used in 2-, 3-, or 4-cabinet sets for extended runtime. Typical matched sets & weights (cabinet count × per-cabinet size): • 2RJ — (2) 49″×32.5″×71″; set weight ≈ 6,700 / 7,400 / 8,000 / 9,000 lb for 30–50 / 65–80 / 100 / 130 kVA • 3RJ — (3) 49″×32.5″×71″; set weight ≈ 11,100 / 12,000 / 15,150 lb (by kVA range) • 4RJ — (4) 49″×32.5″×71″; set weight ≈ 13,400 / 14,800 / 16,000 / 20,200 lb for 30–50 / 65–80 / 100 / 130 kVA |
| Controls & Comm | No active electronics; provisions for cabinet DC disconnect(s) and inter-cabinet cabling; optional battery monitoring per site |
| Physical | Per cabinet: 49″ W × 32.5″ D × 71″ H (1250 × 825 × 1800 mm) • Large (RJ) footprint. Set size: typically 2–4 cabinets depending on UPS kVA and required runtime. |
| Environment | Recommended battery ambient 68–86 °F (20–30 °C); 0–95% RH non-condensing; up to 6600 ft (2000 m) without derating |
| Accessory | Model | Notes |
|---|---|---|
| Large Battery Cabinet (per unit) | RJ footprint | 49″ W × 32.5″ D × 71″ H (1250 × 825 × 1800 mm) |
| Battery Cabinet Set | 2RJ / 3RJ / 4RJ | See weights above by kVA range; used to meet runtime targets |
| Slim-Line Distribution Cabinet | SLDC | 10″ W × 32.5″ D × 71″ H; ~250 lb; downstream distribution |
| Remote Battery Breaker | RBB (site-specific) | Cabinet-level DC isolation and safety interlocks |
