$91.67
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 1200 V | N/A | 300 A | N/A | N/A | N/A | ≈  430 – 465 g |
| Voltage | 1200 V |
| WPC | N/A |
| Amp/H | 300 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | ≈  430 – 465 g |

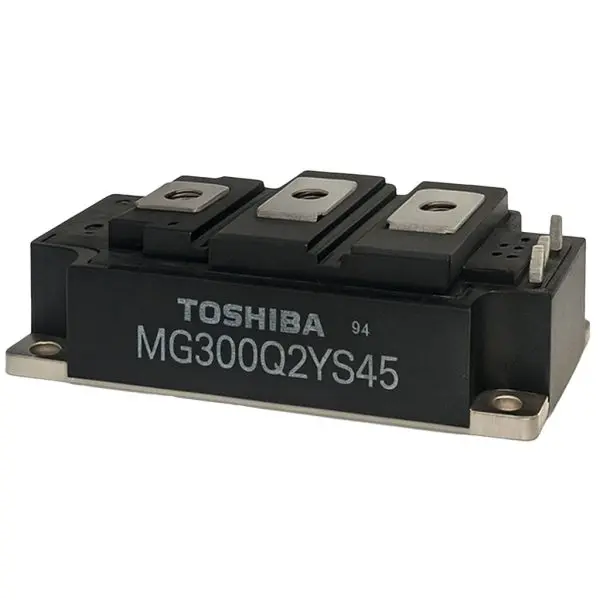

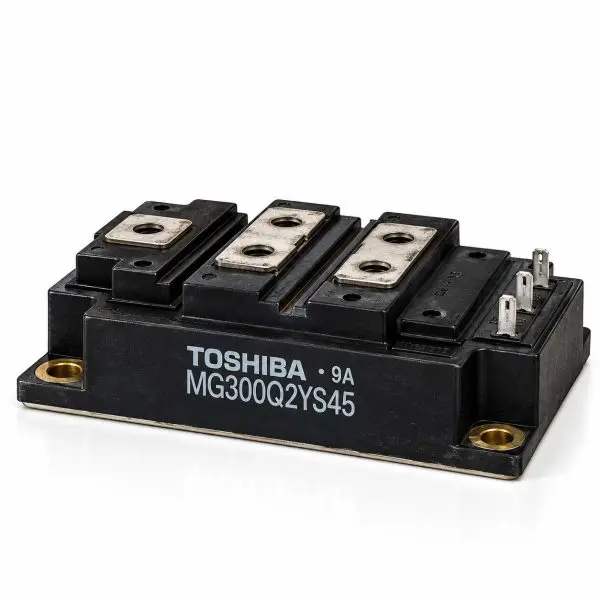

1200Â V / 300Â A dual IGBT power module with integrated free-wheel diodes for inverters and motor drives. Insulated base simplifies heatsinking.
| Parameter | Value |
| Manufacturer | Toshiba |
| Part Number | MG300Q2YS45 |
| Device Type | Dual IGBT half-bridge + diodes |
| Collector-Emitter Voltage | 1200Â V |
| Continuous Collector Current | 300Â A |
| Pulse Collector Current | 600Â A |
| Gate-Emitter Voltage | ±20 V |
| VCE(sat) | ≈ 3.6 V @ 300 A |
| Isolation (terminals→base) | 2.5 kV RMS, 1 min |
| Operating / Storage | Tj 150 °C max / Tstg −40…+125 °C |
| Package / Mass | Isolated-base module; ~430–465 g |
| Configuration | Dual (2-device) half-bridge |
| Module | Applications | Notes |
| MG300Q2YS45 | UPS; drives; choppers; welders | Confirm pinout, torque, cooling. |
