$68.75
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 600 V | N/A | 300 A | N/A | N/A | N/A | ≈ 210 g |
| Voltage | 600 V |
| WPC | N/A |
| Amp/H | 300 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | ≈ 210 g |

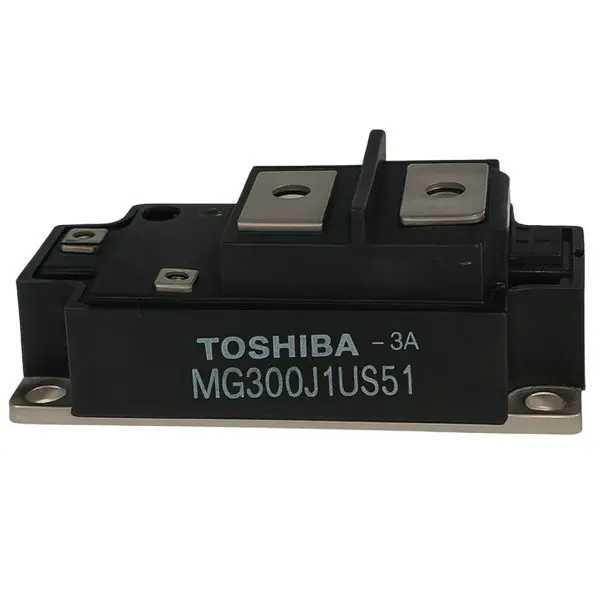

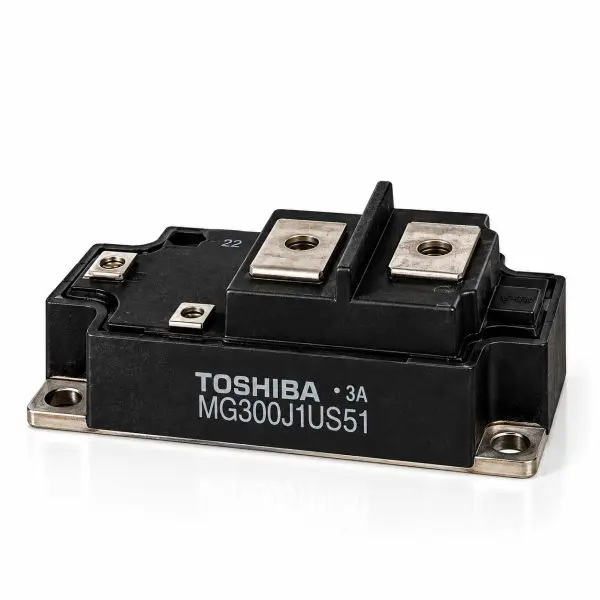

600V • 300A • Dual Half-Bridge IGBT Module • Isolated Baseplate
The Toshiba MG300J1US51 is a high-power dual IGBT module designed for demanding industrial power conversion applications. It integrates two IGBTs with antiparallel free-wheel diodes in a compact half-bridge configuration for efficient switching in motor drives, UPS systems, welding equipment, DC choppers, and inverter designs.
| Manufacturer | Toshiba |
| Part Number | MG300J1US51 |
| Device Type | Dual IGBT half-bridge with antiparallel diodes |
| Voltage Rating | 600V |
| Continuous Current | 300A |
| Pulse Current | 600A |
| VCE(sat) | 2.10V typical / 2.70V maximum |
| Gate-Emitter Voltage | ±20V |
| Isolation Voltage | 2.5kV RMS / 1 minute |
| Package | Toshiba 2-109A4A |
| Weight | Approx. 465g |
Tested & Verified: Every module is inspected and tested when applicable to verify proper IGBT and diode operation.
Industrial Power Electronics Expertise: Gruber has experience with power semiconductors used in UPS systems, motor drives, renewable energy systems, and critical power infrastructure.
Replacement Assistance: Need help matching a legacy Toshiba module? Our technical team can help verify fit, function, and electrical compatibility.
