$68.87
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 1000 V | N/A | 300 A | N/A | N/A | N/A | ≈  210 g |
| Voltage | 1000 V |
| WPC | N/A |
| Amp/H | 300 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | ≈  210 g |

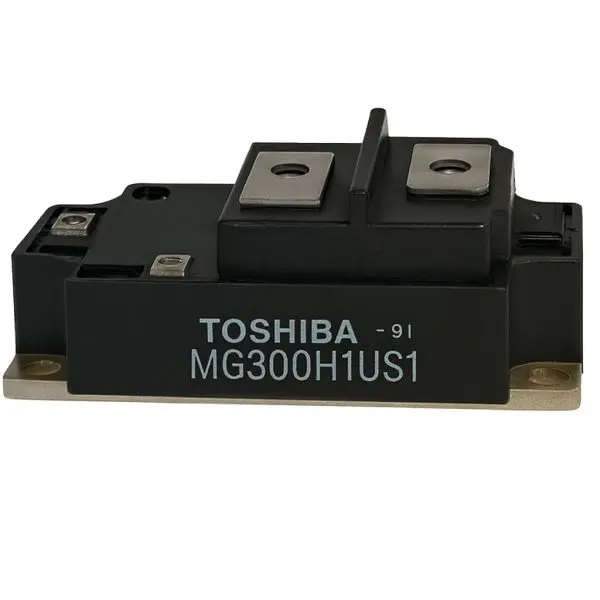

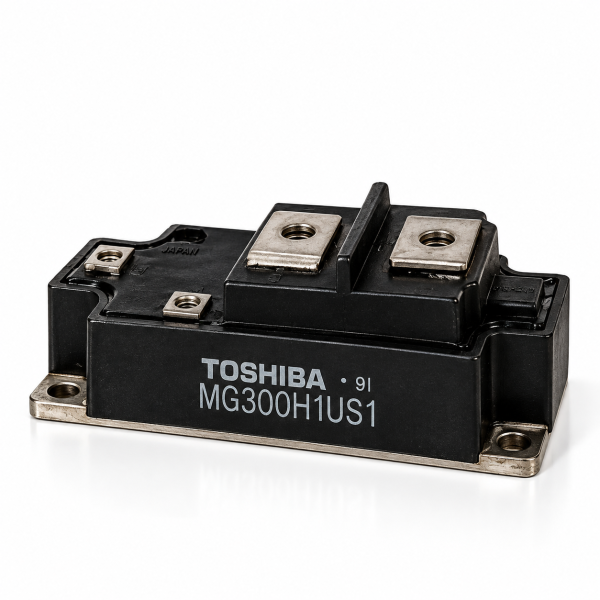

1000Â V / 300Â A single IGBT power module for inverters and motor drives. Includes a reverse-connected diode. Insulated base simplifies heatsinking.
| Parameter | Value |
| Manufacturer | Toshiba |
| Part Number | MG300H1US1 |
| Device Type | Single IGBT + diode |
| Collector-Emitter Voltage | 1000Â V |
| Continuous Collector Current | 300Â A |
| Pulse Collector Current | 600Â A |
| Gate-Emitter Voltage | ±20 V |
| VCE(sat) | 3.6Â V @ 300Â A |
| Isolation (terminals→base) | 2.5 kV RMS, 1 min |
| Operating / Storage | Tj 150 °C max / Tstg −40…+125 °C |
| Configuration | Single switch (H1 series) |
| Module | Applications | Notes |
| MG300H1US1 | UPS; drives; choppers; welders | Confirm pinout, torque, and cooling. |
