$30.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 900 V | 25 A | N/A | N/A | N/A | ≈  150 g |
| Voltage | 900 V |
| Amp/H | 25 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | ≈  150 g |

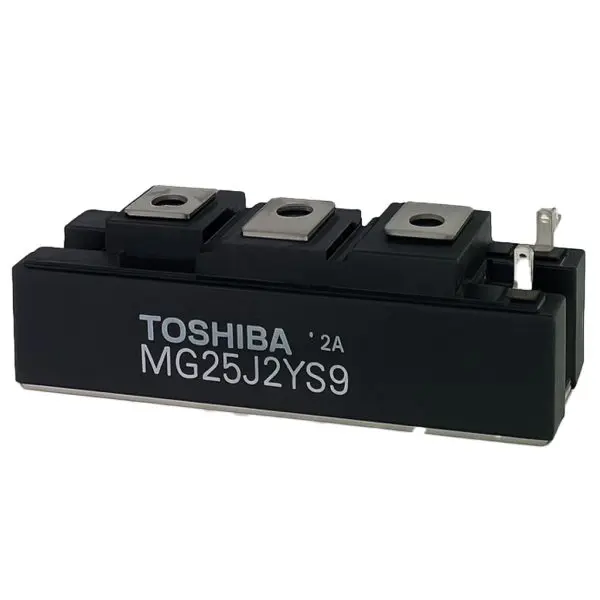

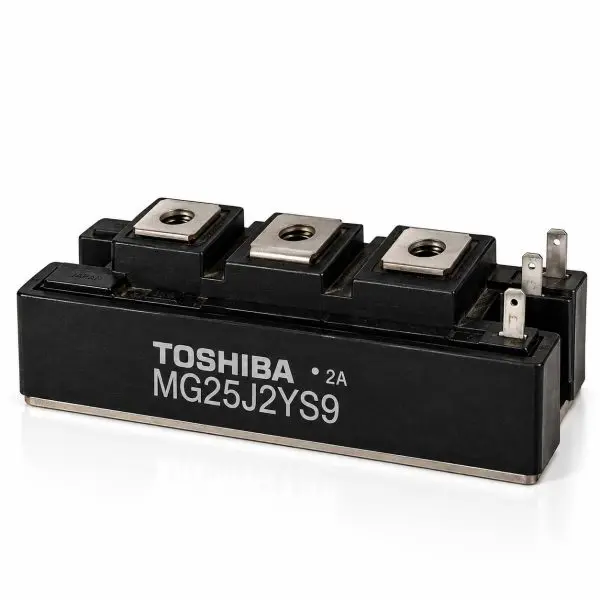

900Â V / 25Â A dual IGBT power module for UPS inverters, motor drives, and high-power SMPS. Each IGBT includes a
reverse-connected fast/soft recovery diode. Insulated mounting base simplifies heatsinking and grounding.
| Parameter | Value |
| Manufacturer | Toshiba |
| Part Number | MG25J2YS9 |
| Device Type | Dual IGBT half-bridge with antiparallel fast/soft diodes |
| Collector-Emitter Voltage (VCES) | 900Â V |
| Continuous Collector Current (IC) | 25 A @ TC=25 °C |
| Pulse Collector Current (ICM) | 50 A (≤ 1 ms) |
| Gate-Emitter Voltage (VGES) | ±20 V |
| VCE(sat) (typ./max) | ~2.8 V typ / ≤ 3.5 V @ IC=25 A, VGE=15 V, 25 °C |
| Gate Threshold (VGE(th)) | 4.5–7.5 V (typ. ~6 V) |
| Capacitances (typ.) | Cies ~6Â nF; Coes ~0.7Â nF; Cres ~0.45Â nF |
| Switching (typ.) | td(on) ~0.25 µs; tr ~0.10 µs; td(off) ~0.70 µs; tf ~0.15 µs |
| Diode (per leg) | VF ~2.4 V @ 25 A; trr ~0.10 µs |
| Thermal Resistance | RthJC(IGBT) ~1.2 °C/W; RthJC(Diode) ~2.5 °C/W |
| Isolation (terminals→base) | 2.5 kVRMS / 1 min |
| Operating / Storage | Tj −40…+150 °C / Tstg −40…+125 °C |
| Package / Dimensions / Mass | 2-in-one module; ~94 × 34 × 30 mm; ≈ 150 g |
| Configuration | Dual (2-pack) half-bridge |
| Module | Applications | Notes |
| MG25J2YS9 | UPS; AC drives; DC choppers; welders; SMPS | Verify pinout and mounting; observe isolation and torque specifications. |
