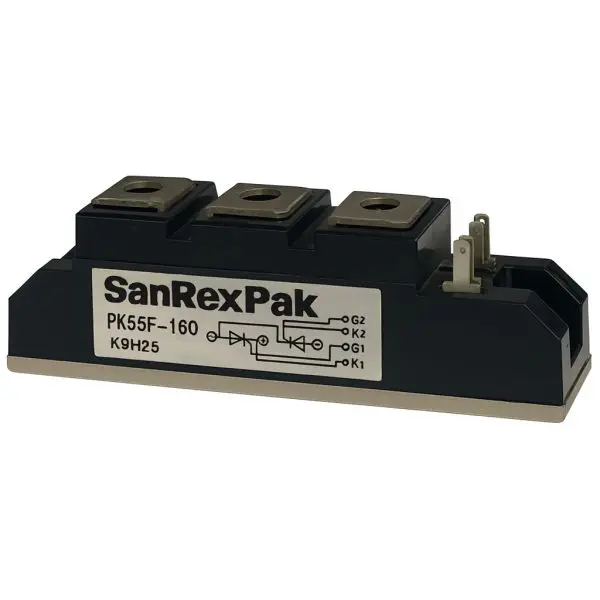

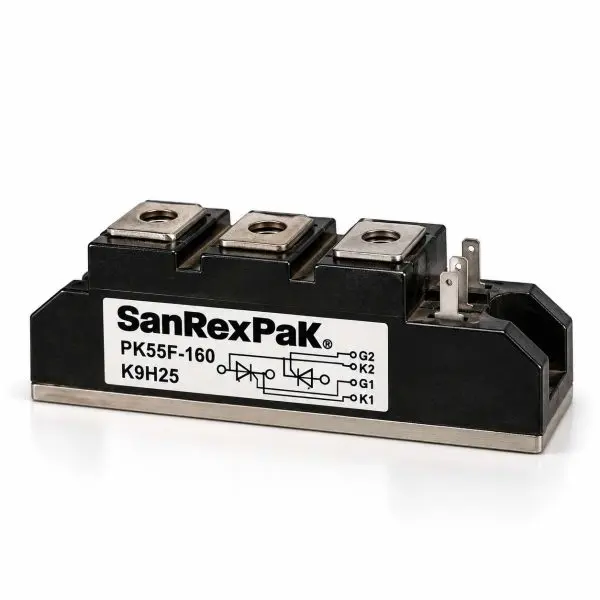

SANREXPAK – PK55F – 160 – IGBT Power Transistor – Reclaimed Part

PK55F-160_1
EE
PK55F-160_1
EE

Manufacturer

OEM Part Number

PK55F-160

GPS Part Number

27-SAN-PK55F-160

Categories

Tags

Price:

$34.57

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1600 V N/A 55 A N/A N/A N/A 170 g
Voltage 1600 V
WPC N/A
Amp/H 55 A
Length N/A
Width N/A
Height N/A
Weight 170 g

SanRex — PK55F-160 Thyristor Module 1600 V • 55 A ITAV • Dual phase-control thyristors (anti-parallel) • Isolated baseplate
What it is

Compact 1.6 kV, 55 A dual SCR module for AC power control and rectifiers. The anti-parallel topology provides bidirectional control for single-phase loads. An electrically isolated base simplifies heatsinking in tight power stacks.

At-a-Glance
  • Voltage / Current: 1600 V / 55 A ITAV (≈ 85–90 A ITRMS)
  • Topology: Dual thyristor (anti-parallel), phase-control
  • Mounting: Screw-mount, isolated baseplate (M6 mounts / M5 terminals)
  • Use Cases: Rectifiers; AC motor/heater control; dimmers; static switches; soft-starts
  • Condition Options: NOS or tested reclaimed pulls
Features
  • High surge capability — ITSM ≈ 1200 A (1-cycle, 50/60 Hz, non-rep.).
  • Rugged dynamics — (di/dt)cr ≈ 100 A/µs; (dv/dt)cr ≈ 500 V/µs.
  • Low on-state drop — VTM ≈ 1.35 V @ IT=165 A, 25 °C (max).
  • Isolated baseplate — 2.5 kVRMS / 1 min base-to-terminals hi-pot.
Technical Specifications
Parameter Value
Manufacturer SanRex (Sansha Electric)
Part Number PK55F-160
Device Type Dual phase-control thyristor module (anti-parallel)
Repetitive Peak Off-State / Reverse Voltage (VDRM, VRRM) 1600 V
Average On-State Current (IT(AV)) 55 A (single-phase, half-wave, 180°, Tc ref.)
R.M.S. On-State Current (IT(RMS)) ≈ 85–90 A
Surge On-State Current (ITSM) ≈ 1200 A (1 cycle, 50/60 Hz, non-rep.)
I2t (one cycle) ≈ 6000 A²·s
Gate Trigger Current / Voltage IGT ≤ 50 mA; VGT ≤ 3.0 V @ 25 °C
Critical dv/dt (min) ≈ 500 V/µs
Critical di/dt ≈ 100 A/µs (IG≈100 mA)
On-State Voltage (VTM) ≈ 1.35 V @ IT=165 A, 25 °C (max)
Operating / Storage Temp. Tj −40…+125 °C / Tstg −40…+125 °C
Isolation Breakdown (VISO) 2500 VRMS (1 min)
Mount / Terminal Torque M6: 2.5–3.9 N·m; M5: 1.5–2.5 N·m (recommended)
Mass ≈ 170 g (typ.)
Package / Footprint ~93.5 × 30 × 26 mm body; 2×Ø6.5 mm mounts; 3×M5 terminals
Configuration Dual SCRs (anti-parallel)
Compatibility / Representative Uses
Module Applications Notes
PK55F-160 Rectifiers; AC motor/heater control; dimmers; static switches; soft-starts Observe ITSM, dv/dt, and di/dt limits; ensure flat, greased heatsink interface.
Why buy from Gruber
  • Tested pulls & new stock — Trigger behavior verified, continuity checked, base flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We help match PK-series modules to your rectifier stacks for drop-in replacements.
