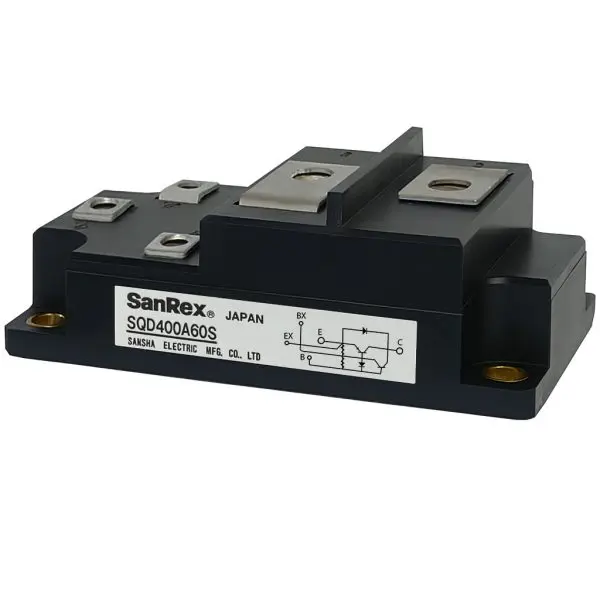

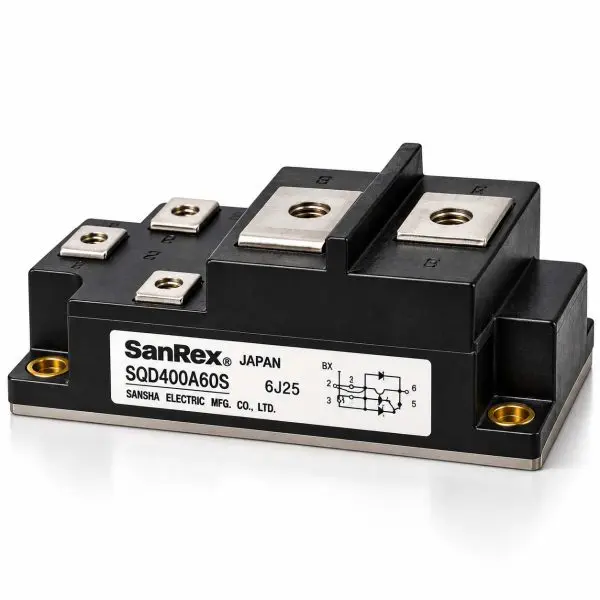

SANREX – SQD400A60S – IGBT Power Transistor – Reclaimed Part

SQD400A60S_1
EE
SQD400A60S_1
EE

Manufacturer

OEM Part Number

SQD400A60S

GPS Part Number

27-SAN-SQD400A60S

Categories

Tags

Price:

$39.45

Specifications
Voltage WPC AH/kVA Length Width Height Weight
600 V N/A 400 A N/A N/A N/A ≈ 600 – 700 g
Voltage 600 V
WPC N/A
Amp/H 400 A
Length N/A
Width N/A
Height N/A
Weight ≈ 600 – 700 g

SanRex — SQD400A60S Dual Darlington Transistor Module 600 V • 400 A • Dual Darlington transistors with reverse-parallel fast-recovery diodes • Isolated baseplate
What it is

600 V, 400 A dual Darlington power transistor module (SanRex SQD series) for high-current converters, VVVF motor control, UPS front ends, and industrial power supplies. Each transistor includes a reverse-parallel fast-recovery diode; the mounting base is electrically insulated for straightforward heatsink design.

At-a-Glance
  • Voltage / Current: 600 V / 400 A
  • Topology: Dual Darlington transistors with reverse-parallel FRDs
  • Mounting: Screw-mount, isolated baseplate
  • Use Cases: VVVF/AC motor drives; UPS/inverters; high-current DC supplies
  • Condition Options: New old stock or tested reclaimed pulls
Features
  • Low VCE(sat) — Darlington structure optimized for high current conduction.
  • High gain — large hFE for reduced base-drive requirements at high current.
  • Fast-recovery diodes — reverse-parallel FRDs for clean commutation.
  • Isolated baseplate — simplifies heatsink and grounding strategy.
Technical Specifications
Parameter Value
Manufacturer SanRex (Sansha Electric)
Part Number SQD400A60S
Device Type Dual Darlington transistor module with reverse-parallel FRDs
Collector-Base Voltage (VCBO) 600 V
Collector-Emitter Sustaining (VCEX) 600 V (VBE=−2 V)
Emitter-Base Voltage (VEBO) 10 V
Continuous Collector Current (IC) 400 A (DC)
Peak Collector Current (IC(pulse)) 800 A (≤ 1 ms)
Reverse Collector Current (−IC) 400 A
Base Current (IB) 24 A (cont.)
Total Power Dissipation (PT) ≈ 1.8 kW @ TC=25 °C
VCE(sat) / VBE(sat) ≤ 2.0 V / ≤ 2.5 V @ IC=400 A, IB=5 A
DC Current Gain (hFE) ≥ 75 @ VCE=2 V; ≥ 100 @ VCE=5 V (IC=400 A)
Switching Times (typ.) ton ≈ 2.5 µs; ts ≈ 12 µs; tf ≈ 3.0 µs (VCC=300 V, rated I)
Diode (per element) IF=400 A; IFSM ≈ 3000 A; VFM ≈ 1.9 V; fast recovery
Thermal Resistance RθJC(Tr) ≈ 0.09 °C/W; RθJC(Diode) ≈ 0.30 °C/W; RθCS ≈ 0.03 °C/W
Isolation (baseplate) 2.5 kVRMS / 1 min (terminals↔base)
Operating / Storage Tj −40…+150 °C; Tstg −40…+125 °C
Package / Footprint Screw terminals; isolated copper base; standard SQD outline (~108×62×30 mm)
Configuration Dual Darlington transistors with reverse-parallel FRDs
Compatibility / Representative Uses
Module Applications Notes
SQD400A60S VVVF motor drives; UPS/inverters; high-current DC supplies Observe base-drive and thermal limits; maintain 2.5 kV isolation and proper torque.
Why buy from Gruber
  • Tested pulls & new stock — Gain/continuity verified; diode drop & isolation spot-checked.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We match SQD-series variants and fit them correctly in your frame.
