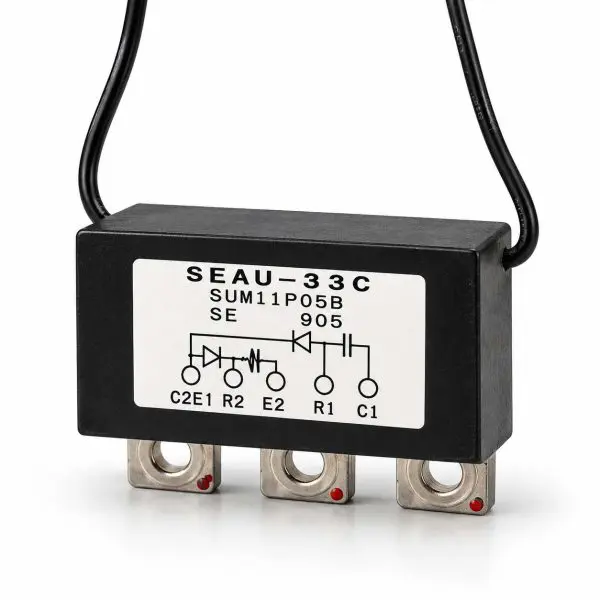

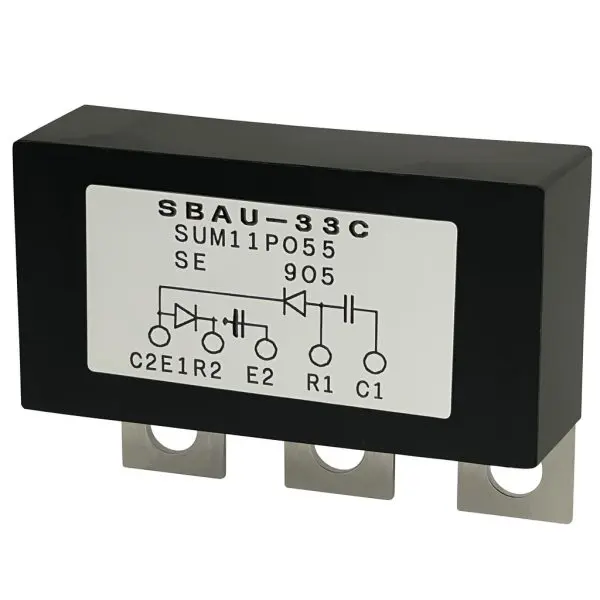

SANREX SEMI-PAK – SBAU-33C – SUM11P055 – IGBT Power Transistor – Reclaimed Part

SBAU-33C_SUM11P055_1
EE
SBAU-33C_SUM11P055_1
EE

Manufacturer

OEM Part Number

SBAU-33C

GPS Part Number

27-SAN-SBAU-33C

Categories

Tags

Price:

$15.58

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1600 V N/A 130 A N/A N/A N/A 510 g
Voltage 1600 V
WPC N/A
Amp/H 130 A
Length N/A
Width N/A
Height N/A
Weight 510 g

SanRex Semi-PAK — SBAU-33C (SUM11P055) Thyristor Module 1600 V • 70 A ITAV • Dual phase-control thyristors (anti-parallel) • Isolated baseplate
What it is

Semi-PAK dual SCR module used for single-phase AC control/rectifiers. The ratings below follow the common SanRex PK-series 70 A / 1.6 kV class used in this package style for drop-in service.

At-a-Glance
  • Voltage / Current: 1600 V / 70 A ITAV (≈ 110 A ITRMS)
  • Topology: Dual thyristor (anti-parallel), phase-control
  • Mounting: Screw-mount, isolated baseplate (M6 mounts / M5 terminals)
  • Use Cases: Rectifiers; AC motor/heater control; dimmers; soft-starts; static switches
  • Package: Semi-PAK / PK70-class footprint with stud power terminals
Features
  • High surge capability — ITSM ≈ 1.5–1.6 kA (1-cycle, 50/60 Hz, non-rep.).
  • Rugged dynamics — (di/dt)cr ≈ 100 A/µs; (dv/dt)cr ≈ 500 V/µs.
  • Low on-state drop — VTM ≈ 1.35 V @ IT=210 A, 25 °C (max).
  • Isolated base — 2.5 kVRMS/1 min hi-pot simplifies heatsinking/grounding.
Technical Specifications
Parameter Value
Manufacturer SanRex / Semi-PAK
Part Number SBAU-33C (drawing SUM11P055)
Device Type Dual phase-control thyristor module (anti-parallel)
Repetitive Peak Off-State / Reverse (VDRM, VRRM) 1600 V
Average On-State Current (IT(AV)) 70 A (single-phase, half-wave, 180°; case ref.)
R.M.S. On-State Current (IT(RMS)) ≈ 110 A
Surge On-State Current (ITSM) ≈ 1500–1600 A (1 cycle, 50/60 Hz)
I2t (one cycle) ≈ 12 kA²·s class
Gate Trigger Current / Voltage IGT ≤ 50 mA; VGT ≤ 3.0 V @ 25 °C
Critical dv/dt (min) ≈ 500 V/µs
Critical di/dt ≈ 100 A/µs (IG ≈ 100 mA)
On-State Voltage (VTM) ≈ 1.35 V @ IT=210 A, 25 °C (max)
Thermal Impedance (Rth(j-c)) ≈ 0.40 °C/W (per element)
Isolation (baseplate) 2.5 kVRMS / 1 min
Operating / Storage Temp. Tj −40…+125 °C / Tstg −40…+125 °C
Mount / Terminal Torque M6: 2.5–3.9 N·m; M5: 1.5–2.5 N·m
Mass ≈ 170 g (typ.)
Package / Footprint Semi-PAK / PK70-class; ~93.5 × 30 × 26 mm; 2×Ø6.5 mm mounts; 3×M5 terminals
Configuration Dual SCRs (anti-parallel)
Why buy from Gruber
  • Tested pulls & new stock — Trigger behavior verified, continuity checked, base flatness inspected.
  • Traceability — Each module labeled with a work-order ID for service history confidence.
  • UPS expertise — We help match Semi-PAK/PK-series parts for drop-in replacements.
