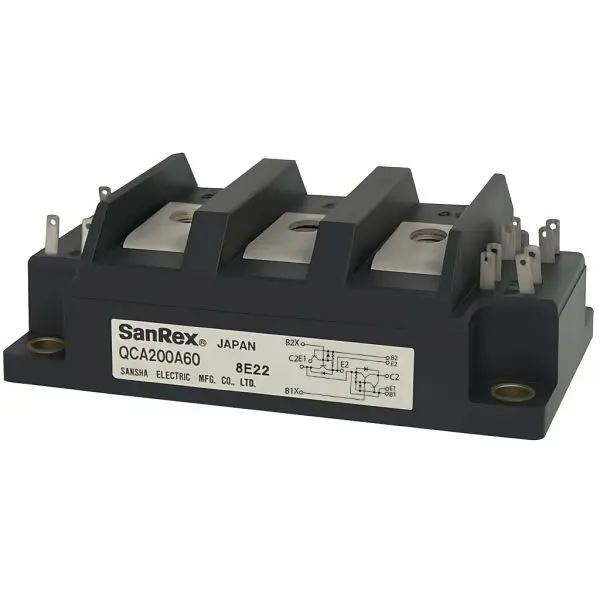

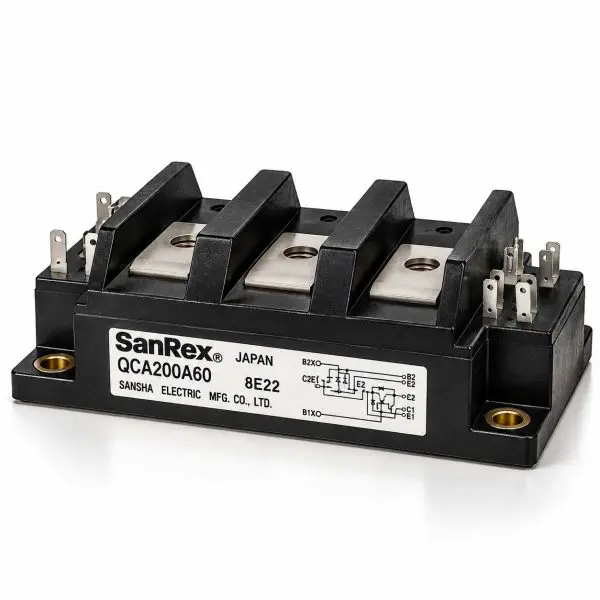

SANREX – QCA200A60 – IGBT Power Transistor – Reclaimed Part

7df26dbf-3a97-41de-8804-9b59700f23a7 copy
EE
7df26dbf-3a97-41de-8804-9b59700f23a7 copy
EE

Manufacturer

OEM Part Number

QCA200A60

GPS Part Number

27-SAN-QCA200A60

Categories

Tags

Price:

$36.59

Specifications
Voltage WPC AH/kVA Length Width Height Weight
600 V N/A 200 A N/A N/A N/A 380 g
Voltage 600 V
WPC N/A
Amp/H 200 A
Length N/A
Width N/A
Height N/A
Weight 380 g

SanRex — QCA200A60 Dual Darlington Transistor Module 600 V • 200 A • Dual Darlington (Series-Connected) • Reverse-Parallel Fast-Recovery Diodes • Isolated Baseplate
What it is

The SanRex QCA200A60 is a 600 V, 200 A dual Darlington power transistor module containing two series-connected high-speed, high-power Darlington transistors. Each transistor incorporates a reverse-parallel fast-recovery diode, while the electrically isolated mounting base simplifies heatsink construction and installation.

Designed for demanding industrial power-switching applications, the QCA200A60 is intended for VVVF motor controls, AC/DC servo systems, UPS equipment, switching power supplies and ultrasonic power applications.

At-a-Glance
  • Voltage / Current: 600 V VCEX / 200 A IC
  • Pulse Current: 400 A, pulse width ≤ 1 ms
  • Topology: Dual series-connected Darlington power transistors
  • Integrated Diodes: Reverse-parallel fast-recovery diode across each transistor
  • Isolation: Electrically isolated mounting base
  • Use Cases: VVVF motor control; AC/DC servo; UPS; switching power supplies; ultrasonic applications
Features
  • Low saturation voltage — VCE(sat) ≤ 2.0 V @ IC = 200 A, IB = 2.7 A.
  • High DC current gain — hFE ≥ 75 @ VCE = 2 V and ≥ 100 @ VCE = 5 V, IC = 200 A.
  • Fast switching — ton ≤ 2.0 µs; ts ≤ 12.0 µs; tf ≤ 3.0 µs under specified test conditions.
  • Integrated fast-recovery diodes — supports high-power inductive-load and switching applications.
  • 10 V emitter-base rating — designed to support faster switching operation.
  • Isolated baseplate — simplifies heatsink construction while electrically isolating the semiconductor elements from the mounting base.
Technical Specifications
Parameter Value
Manufacturer SanRex (Sansha Electric)
Part Number QCA200A60
Device Type Dual Darlington power transistor module with reverse-parallel fast-recovery diodes
Collector-Base Voltage (VCBO) 600 V
Collector-Emitter Voltage (VCEX) 600 V
Collector-Emitter Sustaining Voltage VCEO(SUS) 450 V min @ IC = 1 A
Emitter-Base Voltage (VEBO) 10 V
Collector Current (IC) 200 A
Pulse Collector Current 400 A, pulse width ≤ 1 ms
Reverse Collector Current (−IC) 200 A
Collector Cut-Off Current (ICBO) 2.0 mA max @ VCB = VCBO
Emitter Cut-Off Current (IEBO) 800 mA max @ VEB = VEBO
Collector-Emitter Saturation Voltage (VCE(sat)) 2.0 V max @ IC = 200 A, IB = 2.7 A
Base-Emitter Saturation Voltage (VBE(sat)) 2.5 V max @ IC = 200 A, IB = 2.7 A
DC Current Gain (hFE) ≥ 75 @ VCE = 2 V; ≥ 100 @ VCE = 5 V; IC = 200 A
Turn-On Time (ton) 2.0 µs max
Storage Time (ts) 12.0 µs max
Fall Time (tf) 3.0 µs max
Switching Test Conditions VCC = 300 V, IC = 200 A, IB1 = 4 A, IB2 = −4 A
Diode Forward Voltage (VECO) 1.4 V max @ −IC = 200 A
Thermal Resistance — Transistor 0.10°C/W max, junction-to-case
Thermal Resistance — Diode 0.30°C/W max, junction-to-case
Configuration Dual Darlington, series-connected (QCA type)
Compatibility / Representative Uses
Module Applications Notes
QCA200A60 VVVF motor control; AC/DC servo; UPS; switching power supplies; ultrasonic applications Series-connected QCA configuration; verify electrical configuration, terminal layout and mechanical fit before substitution.
Why Buy from Gruber
  • Power electronics expertise — Decades of experience supporting UPS, inverter and critical-power systems.
  • Legacy component support — Assistance identifying replacement options for obsolete and hard-to-source power semiconductor modules.
  • Application assistance — Help matching electrical configuration, ratings and mechanical fit when replacing legacy modules.
