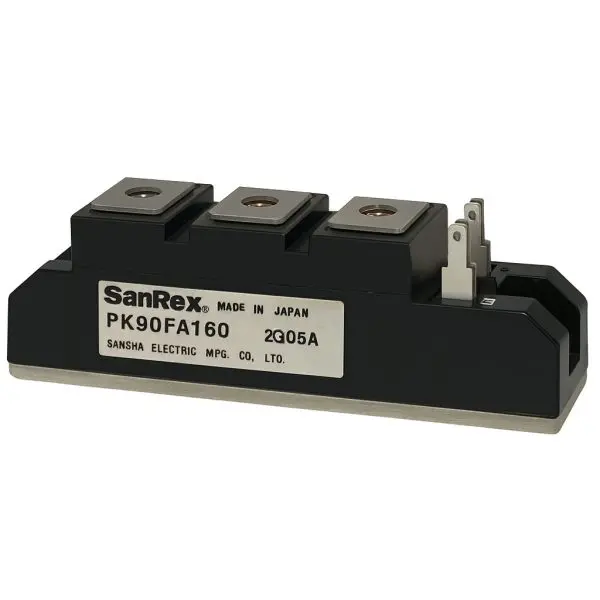

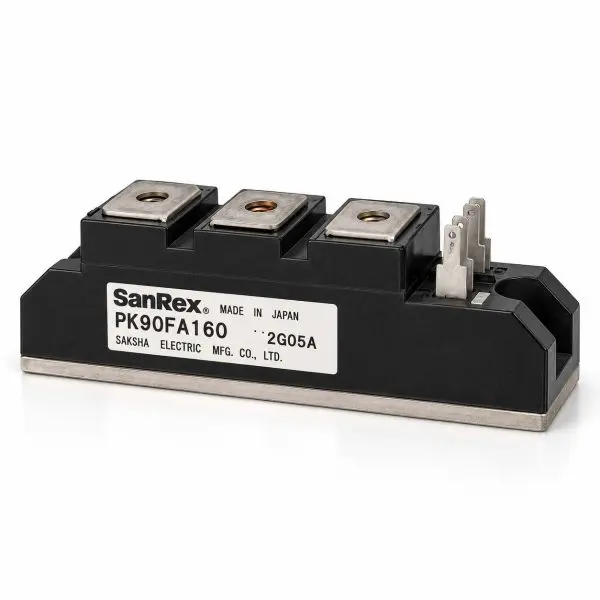

SANREX – PK90FA160 – IGBT Power Transistor – Reclaimed Part

80b4657f-6295-476c-b807-940f5c0824f1 copy
EE
80b4657f-6295-476c-b807-940f5c0824f1 copy
EE

Manufacturer

OEM Part Number

PK90FA160

GPS Part Number

27-SAN-PK90FA160

Categories

Tags

Price:

$35.78

Specifications
Voltage WPC AH/kVA Length Width Height Weight
1600 V N/A 90 A N/A N/A N/A 170 g
Voltage 1600 V
WPC N/A
Amp/H 90 A
Length N/A
Width N/A
Height N/A
Weight 170 g
SanRex PK70FG160 Thyristor Module — 1600V • 70A • Dual SCR Power Module

The SanRex PK70FG160 is a high-voltage 1600V, 70A dual thyristor (SCR) power module designed for industrial rectification, AC power control, motor control, heater control, static switching, and other high-power applications. Two SCR devices are integrated in a series-connected phase-leg configuration within a compact, electrically isolated module for straightforward heatsink mounting.

With high surge-current capability, reliable gate triggering, and an insulated mounting base, the PK70FG160 is well suited for repair and replacement applications in UPS systems, rectifier assemblies, industrial control equipment, and legacy power-electronics systems requiring the original SanRex PK70FG configuration.

Key Specifications
  • Repetitive Peak Voltage: 1600V
  • Average On-State Current: 70A
  • RMS On-State Current: Up to 110A
  • Surge Current: Up to 1600A for one cycle
  • Configuration: Dual SCR, series-connected phase leg
  • Gate Trigger Current: ≤50mA
  • Mounting: Screw-mounted module with isolated baseplate
  • Typical Applications: Rectifiers, UPS systems, motor controls, heater controls, dimmers, and static switches
Features
  • High voltage capability — 1600V repetitive peak off-state and reverse-voltage rating.
  • High surge-current capacity — designed to withstand short-duration inrush and fault-current conditions.
  • Low gate-trigger requirement — supports reliable triggering in industrial control circuits.
  • Dual SCR construction — two thyristors integrated into one compact phase-leg module.
  • Electrically isolated baseplate — simplifies heatsink installation and electrical isolation.
  • Rugged industrial package — suited for high-power rectifier and AC-control applications.
Technical Specifications
Parameter Specification
Manufacturer SanRex / Sansha Electric
Part Number PK70FG160
Device Type Dual Thyristor / SCR Power Module
Configuration Two series-connected SCRs in phase-leg configuration
Repetitive Peak Off-State Voltage (VDRM) 1600V
Repetitive Peak Reverse Voltage (VRRM) 1600V
Average On-State Current (IT(AV)) 70A
RMS On-State Current (IT(RMS)) 110A maximum
Surge On-State Current (ITSM) 1460A at 50Hz / 1600A at 60Hz, one cycle
Gate Trigger Current (IGT) ≤50mA
Gate Trigger Voltage (VGT) ≤3.0V
Operating Junction Temperature −40°C to +125°C
Baseplate Electrically isolated mounting base
Package PK70FG series module with screw terminals and dual mounting holes
Typical Applications
  • UPS rectifier assemblies
  • Industrial AC power controllers
  • Controlled rectifiers
  • Motor speed controls
  • Industrial heater controls
  • Lighting and dimmer systems
  • Static switching equipment
Why Buy From Gruber Power Services?
  • Critical-power expertise — decades of experience supporting UPS, rectifier, and industrial power-electronics equipment.
  • Inspected inventory — components are visually inspected and condition identified before shipment.
  • Replacement support — assistance identifying SanRex PK-series modules for legacy and current power systems.
  • Condition clearly identified — inventory may include new old stock and professionally inspected reclaimed components.

Important: Verify part number, voltage and current ratings, terminal configuration, mounting dimensions, and circuit topology against the original equipment documentation before installation.

Related products

Post Views: 539
