SANREX – GCA150BA60 – IGBT Power Transistor – Reclaimed Part

82e1c583-fbbb-454e-ab25-22e51566b5f2 copy
EE
82e1c583-fbbb-454e-ab25-22e51566b5f2 copy
EE

Manufacturer

OEM Part Number

GCA150BA60

GPS Part Number

27-SAN-GCA150BA60

Categories

Tags

Price:

$39.62

Specifications
Voltage WPC AH/kVA Length Width Height Weight
600 V N/A 150 A N/A N/A N/A 225 g
Voltage 600 V
WPC N/A
Amp/H 150 A
Length N/A
Width N/A
Height N/A
Weight 225 g

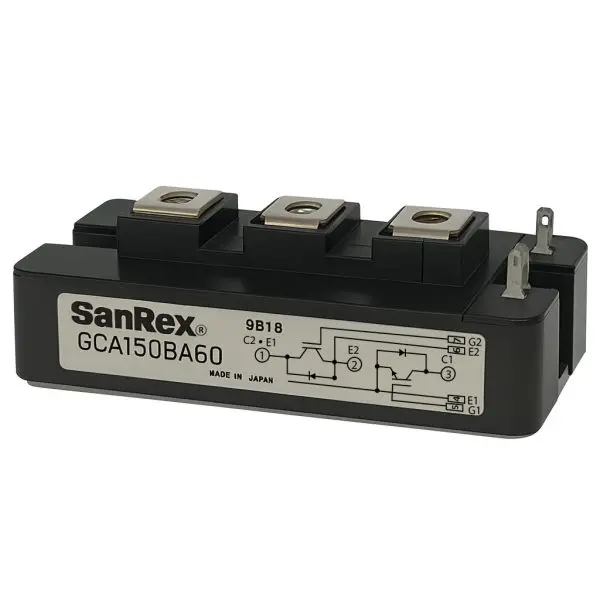

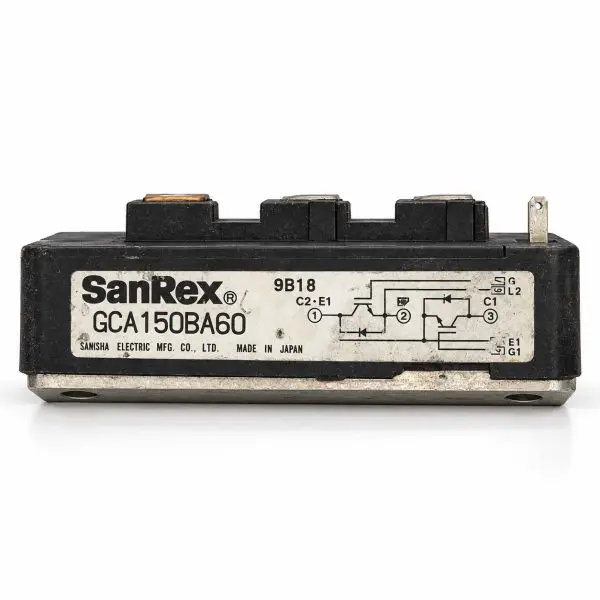

SanRex GCA150BA60 IGBT Module — 600V • 150A • Dual IGBT Power Module

The SanRex GCA150BA60 is a high-power, 600V, 150A dual IGBT module designed for demanding inverter, UPS, motor-control, servo, welding, and industrial power-conversion applications. The module incorporates two series-connected IGBTs with integrated antiparallel soft-recovery diodes and an electrically isolated mounting base for simplified heatsink installation.

Designed for high-current switching with low conduction losses, the GCA150BA60 is well suited for repair, replacement, and maintenance of industrial power electronics where the original SanRex module configuration and electrical ratings are required.

Key Specifications
  • Collector-Emitter Voltage: 600V
  • Continuous Collector Current: 150A
  • Pulse Collector Current: Up to 300A
  • Configuration: Dual series-connected IGBTs
  • Integrated Diodes: Antiparallel soft-recovery diodes
  • Baseplate: Electrically isolated
  • Mounting: Screw-mounted power module
  • Typical Applications: UPS systems, motor drives, servo systems, power supplies and welding equipment
Features
  • High-current switching capability
    for industrial power-conversion applications.
  • Low saturation voltage
    helps reduce conduction losses under high load.
  • Fast switching characteristics
    support efficient inverter and switching-power designs.
  • Soft-recovery diodes
    improve commutation performance and help reduce switching transients.
  • Isolated mounting base
    simplifies heatsink installation while maintaining electrical isolation.
  • Rugged industrial package designed for high-power service environments.
Technical Specifications
Parameter Specification
Manufacturer SanRex / Sansha Electric
Part Number GCA150BA60
Device Type Dual IGBT Power Module
Configuration Two series-connected IGBTs with antiparallel diodes
Collector-Emitter Voltage (VCES) 600V
Collector Current (IC) 150A continuous
Pulse Collector Current 300A
Reverse Collector Current 150A
Total Power Dissipation 600W @ TC = 25°C
VCE(sat) Approx. 2.4V typical / 2.8V maximum
Maximum Gate-Emitter Voltage ±20V
Gate Threshold Voltage Approx. 3.0V
Diode Reverse-Recovery Time Approx. 0.15µs
Isolation Test Voltage 2.5kV RMS / 1 minute
Junction Temperature −40°C to +150°C
Storage Temperature −40°C to +125°C
Approximate Weight 225g
Typical Applications
  • Uninterruptible Power Supplies (UPS)
  • Variable-frequency motor drives
  • Industrial inverter systems
  • AC servo drives
  • DC power supplies
  • Welding power supplies
  • Industrial power-conversion equipment
Why Buy From Gruber Power Services?
  • Industrial power electronics expertise —
    decades of experience supporting UPS and critical-power equipment.
  • Inspected inventory —
    modules are visually inspected and condition identified prior to shipment.
  • Replacement support —
    assistance identifying compatible SanRex modules and related power components.
  • Condition clearly identified —
    available inventory may include new old stock and professionally inspected reclaimed components.

Important: Verify part number, electrical ratings, terminal configuration, dimensions, and mounting requirements against the equipment manufacturer documentation before installation.
