$35.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 600 V | 480 A | N/A | N/A | N/A | 170 g |
| Voltage | 600 V |
| Amp/H | 480 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 170 g |

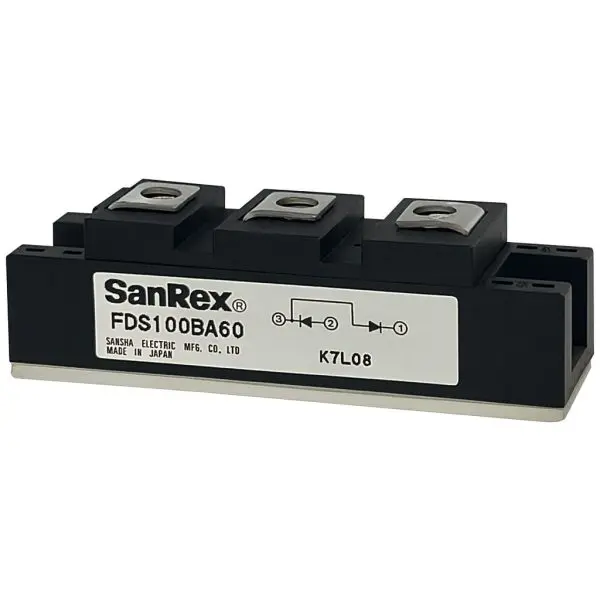

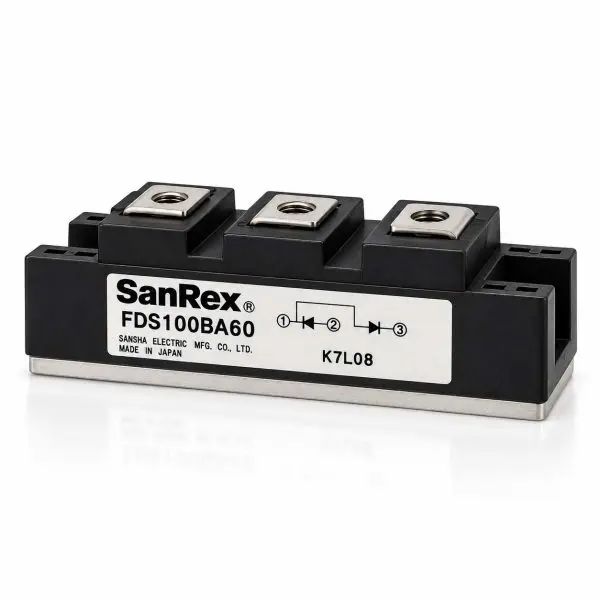

600Â V, 100Â A-per-element dual fast-recovery diode (FRD) module for high-frequency rectifiers and inverter front ends.
Features very short reverse-recovery, high surge capability, and an insulated mounting base for straightforward thermal design.
| Parameter | Value |
| Manufacturer | SanRex (Sansha Electric) |
| Part Number | FDS100BA60 |
| Device Type | Dual fast-recovery diode (FRD) module |
| Repetitive Peak Reverse Voltage (VRRM) | 600Â V |
| D.C. Reverse Voltage (VR(DC)) | 480Â V |
| Average Forward Current (IF) | 100 A per diode (Tc=94 °C) |
| Surge Forward Current (IFSM) | 2000 A (½-cycle, 60 Hz, non-rep.) |
| I2t (one cycle) | 16 700 A²·s |
| Forward Voltage Drop (VFM) | ≤ 1.3 V @ IF=100 A (inst.) |
| Thermal Impedance (Rth(j-c)) | ≤ 0.40 °C/W (per element) |
| Reverse Recovery Time (trr) | ≤ 100 ns @ IF=100 A, di/dt=−100 A/µs |
| Operating / Storage Temp. | Tj −40…+150 °C / Tstg −40…+125 °C |
| Isolation Breakdown (VISO) | 2.5Â kVRMS (1Â min) |
| Mounting / Terminal Torque | M6: 2.5–3.9 N·m; M5: 1.5–2.5 N·m (recommended) |
| Mass | ≈ 170 g |
| Package / Footprint | ~93.5 × 30 × 26 mm body; 2×Ø6.5 mm mounts; 3×M5 terminals |
| Configuration | Dual FRDs (two devices) |
| Module | Applications | Notes |
| FDS100BA60 | Switch-mode power supplies; inverter/welding supplies; telecom power | Observe surge (IFSM) and torque specs; ensure flat, greased heatsink interface. |
