$84.00
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 1200 V | N/A | 600 A | N/A | N/A | N/A | 600 – 800 g |
| Voltage | 1200 V |
| WPC | N/A |
| Amp/H | 600 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 600 – 800 g |

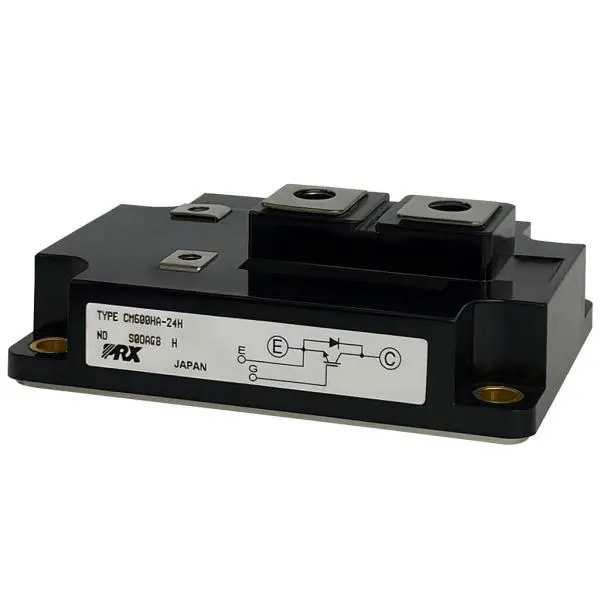

The Powerex CM600HA-24H is a high-current 1200 V, 600 A single IGBT power module designed for demanding industrial power-conversion applications. It combines a high-power IGBT with an antiparallel super-fast free-wheel diode in a rugged screw-terminal package with an electrically isolated baseplate.
With twice the current capability of many 300 A modules in the same general application class, the CM600HA-24H is well suited for large UPS inverter and rectifier stages, high-horsepower industrial motor drives, DC-link choppers, welding systems, laser power supplies, energy-conversion equipment, and other high-current inverter systems. Its 1200 V blocking capability provides substantial voltage headroom for industrial DC bus applications.
The single-switch configuration allows multiple CM600HA-24H modules to be arranged into half-bridge, full-bridge, or three-phase inverter topologies. The electrically isolated baseplate simplifies installation on common heatsinks while maintaining electrical separation between the semiconductor circuit and chassis.
| Parameter | Value |
| Manufacturer | Powerex / Mitsubishi Electric |
| Part Number | CM600HA-24H |
| Device Type | Single IGBT power module with antiparallel super-fast diode |
| Configuration | Single / 1-pack |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) | 600 A |
| Pulse Collector Current | Up to approximately 1200 A |
| Maximum Collector Dissipation | Approximately 3.6–4.0 kW @ TC=25 °C |
| VCE(sat) | Approximately 2.1–2.3 V typical / approximately 2.9 V max @ VGE=15 V, IC=600 A, 25 °C |
| Gate-Emitter Voltage (VGES) | ±20 V maximum |
| Gate Threshold VGE(th) | Approximately 5–7 V; 6 V typical |
| Input Capacitance (Cies) | Approximately 140 nF typical |
| Output Capacitance (Coes) | Approximately 5 nF typical |
| Reverse Transfer Capacitance (Cres) | Approximately 2.5 nF typical |
| Total Gate Charge | Approximately 3000–4000 nC depending on test conditions |
| Turn-On Delay | Approximately 120 ns typical |
| Rise Time | Approximately 200 ns typical |
| Turn-Off Delay | Approximately 450 ns typical |
| Fall Time | Approximately 300 ns typical |
| Free-Wheel Diode | Integrated antiparallel super-fast recovery diode |
| Diode Forward Voltage | Approximately 2.6–3.2 V @ 600 A |
| Diode Reverse-Recovery Time | Approximately 0.30–0.40 µs |
| Reverse-Recovery Charge | Approximately 20–30 µC |
| Thermal Resistance — IGBT | RthJC approximately 0.045–0.055 °C/W |
| Thermal Resistance — Diode | RthJC approximately 0.09–0.11 °C/W |
| Case-to-Fin Thermal Resistance | RthCF approximately 0.02 °C/W with thermal compound |
| Isolation Voltage | 2.5 kV RMS / 1 minute, terminals-to-baseplate |
| Operating Junction Temperature | −40 °C to +150 °C |
| Storage Temperature | −40 °C to +125 °C |
| Package / Footprint | High-current single IGBT module; screw terminals; isolated baseplate |
| Typical Hardware Torque | Approximately 4.5 N·m / 40 in-lb where applicable; verify exact hardware requirements before installation |
| Condition | Reclaimed Part |
| Module | Applications | Replacement Notes |
| CM600HA-24H | Large UPS inverter/rectifier stages; high-power motor drives; industrial inverters; DC-link choppers; welding systems; laser power; high-current power converters | Confirm complete part number, terminal arrangement, gate/emitter connections, mounting dimensions, gate-drive requirements, bus voltage, cooling capacity, and thermal interface before replacement. |
