$153.00
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 1600 V | N/A | 393 A | N/A | N/A | N/A | 840 g |
| Voltage | 1600 V |
| WPC | N/A |
| Amp/H | 393 A |
| Length | N/A |
| Width | N/A |
| Height | N/A |
| Weight | 840 g |

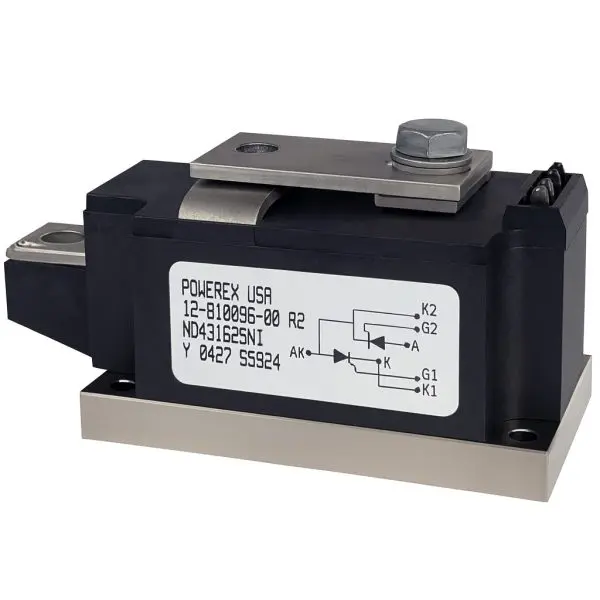

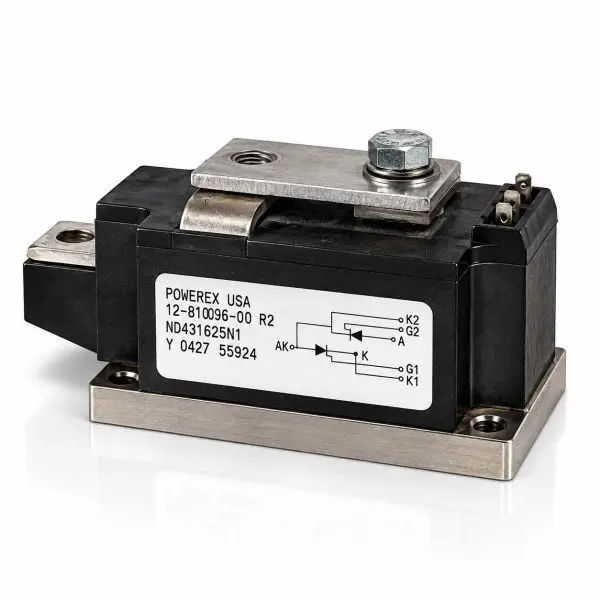

The Powerex 12-810096-00-R2, corresponding to manufacturer module type ND431625NI, is a heavy-duty 1600 V, 250 A dual phase-control thyristor module from the Powerex POW-R-BLOK family. It combines two high-current SCRs in a single electrically isolated power block for industrial AC power control, rectification, soft-starting, and critical-power applications.
The module is rated for approximately 393 A RMS on-state current and provides substantial non-repetitive surge capability, including up to approximately 8.8 kA for a single 60 Hz cycle. This makes the module particularly suitable for equipment exposed to high inrush currents, line transients, and demanding industrial duty cycles.
Its isolated baseplate and compression-bonded power elements provide efficient heat transfer while maintaining electrical isolation from the heatsink and chassis. Heavy-duty M8 power terminals handle the primary current path, while dedicated control connections provide reliable triggering of the internal thyristors.
The 12-810096-00-R2 number may appear as an equipment-specific or customer part number, while ND431625NI identifies the underlying Powerex semiconductor module. For legacy UPS and industrial power equipment, both numbers should be checked when identifying a replacement.
| Parameter | Value |
| Manufacturer | Powerex |
| Customer / Assembly Part Number | 12-810096-00-R2 |
| Manufacturer Module Type | ND431625NI |
| Device Type | Dual phase-control thyristor / SCR power module |
| Repetitive Peak Off-State Voltage (VDRM) | 1600 V |
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Average On-State Current (ITAV) | 250 A at TC=89 °C, 180° conduction |
| RMS On-State Current (ITRMS) | 393 A at TC=89 °C |
| Surge On-State Current (ITSM) | 8.8 kA, 1 cycle; approximately 4.685 kA, 3 cycles; approximately 4.040 kA, 10 cycles |
| I²t | Approximately 322 kA²·s at 8.3 ms |
| Critical dV/dt | 500 V/µs minimum under specified conditions |
| Critical di/dt | Up to 800 A/µs under specified non-repetitive conditions |
| Gate Trigger Current (IGT) | 150 mA maximum |
| Gate Trigger Voltage (VGT) | 3.0 V maximum |
| Isolation Test Voltage | 2.5 kV RMS / 1 minute |
| Thermal Resistance Junction-to-Case | Approximately 0.07 °C/W with both devices conducting; approximately 0.14 °C/W per junction |
| Thermal Resistance Case-to-Sink | Approximately 0.03 °C/W with specified thermal interface |
| Operating Junction Temperature | −40 °C to +130 °C |
| Storage Temperature | −40 °C to +150 °C |
| Mounting Torque | M6 mounting approximately 5 N·m; M8 power terminals approximately 12 N·m |
| Package / Footprint | Powerex ND43 block; approximately 116 × 50 × 55 mm |
| Control Connections | Keyed 2.8 mm gate/control tabs |
| Approximate Mass | 840 g |
| Configuration | Dual SCR power module |
| Condition | Reclaimed Part |
| Module | Applications | Replacement Notes |
| 12-810096-00-R2 / ND431625NI | UPS input bridges; controlled rectifiers; industrial soft starters; AC voltage regulators; motor controls; high-current power conversion | Verify both part numbers, SCR configuration, gate connections, ND43 mounting dimensions, M8 terminal arrangement, electrical ratings, and cooling requirements before substitution. |
