Manufacturer
OEM Part Number
GPS Part Number
Categories
Tags
$20,000.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 200/240 V | N/A | 43.1" | 11.8" | 78.4" | 441 lb |
| Voltage | 200/240 V |
| Amp/H | N/A |
| Length | 43.1" |
| Width | 11.8" |
| Height | 78.4" |
| Weight | 441 lb |

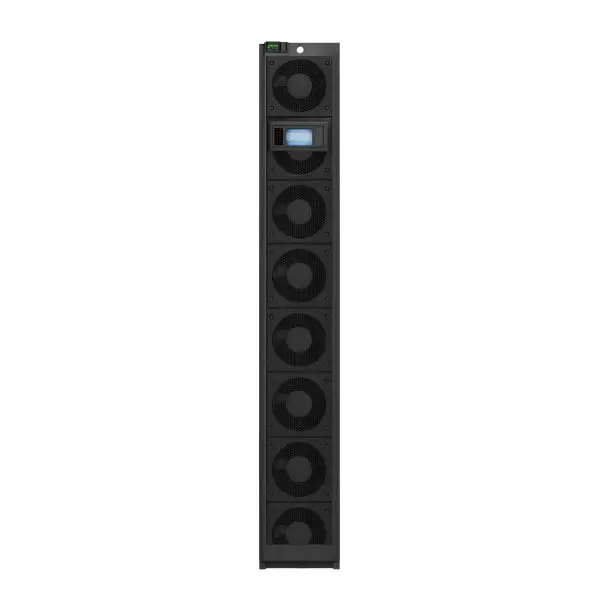

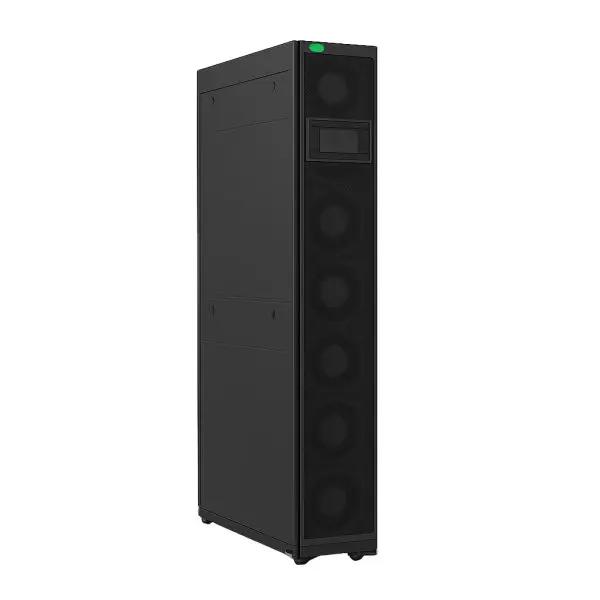

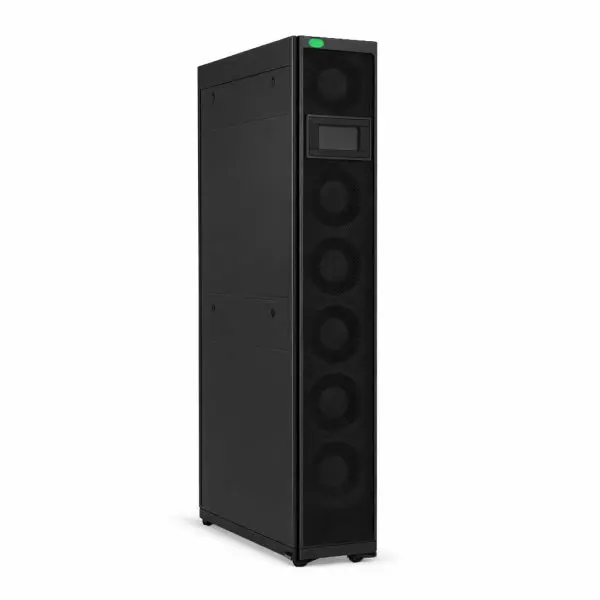

The APC ACRH301P is a factory-new 300 mm Uniflair InRow indoor unit with a dual-coil design for efficient, close-coupled precision cooling. Installed directly in the rack row, it provides targeted airflow with integrated humidification and electric reheat for tight environmental control. This unit ships brand new from APC/Schneider Electric with full manufacturer warranty and support.
| Category | Detail |
|---|---|
| Cooling Capacity | 27 kW nominal (configuration & conditions per datasheet) |
| Power Input | 200–240 V, 50/60 Hz supply for controls/fans and auxiliary loads (MCA/MOP per nameplate) |
| Coil Configuration | Dual-coil in-row architecture for enhanced heat exchange and control response |
| Refrigerant | DX circuit (if equipped) uses R410A; factory charge per specification |
| Airflow | High-efficiency EC fans; variable-speed; front-to-back airflow for in-row deployment |
| Humidification | Integrated humidifier with RH setpoint & alarms; water supply/quality per submittal |
| Reheat | Integrated electric reheat stages for precise discharge air temperature control |
| Controls & Monitoring | Uniflair controller with local HMI; alarms; BMS integration options (e.g., Modbus); compatible with APC monitoring |
| Physical | InRow cabinet; 300 mm (≈11.8″) width; nominal 42U height; exact dimensions/weight per mechanical drawing |
| Environment | Indoor IT environment; operating limits per datasheet (temperature/humidity/altitude); condensate management provided |
| Compliance | CE and UL compliance (model family) |
| Accessory | Model | Notes |
|---|---|---|
| Outdoor Condenser | ACCD / ACCU series | For DX heat rejection (if DX circuit equipped); select to match site voltage/capacity |
| Water Treatment / Fill Kit | Humidifier service kit | Recommended for integrated humidifier; follow APC water quality guidance |
| Leak Detection | Uniflair LD kit | Optional tray/spot/leak rope sensors with alarm integration |
