$18,000.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 48 V DC | N/A | 43.1" | 11.8" | 78.4" | 330.7 lbs |
| Voltage | 48 V DC |
| Amp/H | N/A |
| Length | 43.1" |
| Width | 11.8" |
| Height | 78.4" |
| Weight | 330.7 lbs |

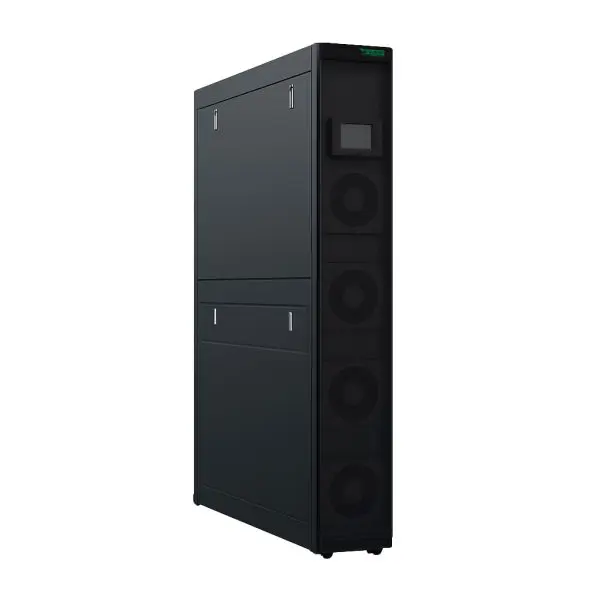

The APC ACRD101D is a factory-new InRow DX 300 mm precision cooling unit designed for high-density IT environments. Installed directly in the rack row, it delivers efficient, close-coupled cooling and integrates with matched APC outdoor condensers for reliable heat rejection. This unit ships brand new from APC/Schneider Electric with full manufacturer warranty and support.
| Category | Detail |
|---|---|
| Cooling Capacity | Row-based DX cooling; nominal capacity per ACRD101D datasheet (configuration-dependent) |
| Power Input | 48 VDC supply (MCA/MOP per nameplate; see installation manual) |
| Refrigerant | DX circuit using R410A (factory charge per specification) |
| Airflow | High-efficiency EC fans; variable-speed control; front-to-back airflow |
| Controls & Monitoring | Integrated controller with local HMI; alarms; BMS integration options (e.g., Modbus); compatible with APC monitoring |
| Physical | InRow cabinet; 300 mm (≈11.8″) width class; nominal 42U height; exact dimensions/weight per mechanical drawing |
| Environment | Indoor IT environment; operating limits per datasheet (temperature/humidity/altitude) |
| Accessory | Model | Notes |
|---|---|---|
| Outdoor Condenser | ACCD / ACCU series | Matched APC condensers for DX heat rejection (select per site capacity/voltage) |
| Leak Detection | Uniflair LD kit | Optional rack/row leak detection and alarm integration |
| Network/Monitoring | Monitoring gateway | Enable remote monitoring and BMS/EMS connectivity as required |
