Tesla Powerwall – 1112484-04-A – Neurio W2 Meter Kit with 2 CTs 200A

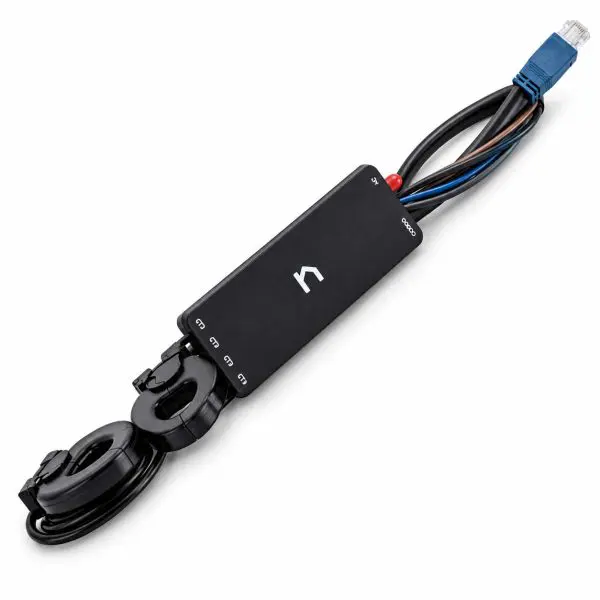

ChatGPT Image Oct 1, 2026, 03_49_37 PM

Manufacturer

OEM Part Number

1112484-04-A

GPS Part Number

88-1112484-04-A

Categories

,

Tags

, , , ,

Price:

$375.00

Specifications
Voltage WPC AH/kVA Length Width Height Weight
N/A N/A N/A N/A N/A N/A 1 Lbs
Voltage N/A
WPC N/A
Amp/H N/A
Length N/A
Width N/A
Height N/A
Weight 1 Lbs
Tesla Powerwall — Neurio W2 Meter Kit with Two 200 A CTs
Remote Energy Metering — Meter Kit with 2 Current Transformers

Monitor energy flow in compatible Tesla installations with the Neurio W2 Meter Kit. This remote metering accessory supports site, solar, or load measurements according to the system’s CT placement and configuration.

Part number 1112484-04-A includes a Neurio W2 energy meter and two Neurio W2 current transformers rated at 200 A each. The meter provides four CT inputs, allowing additional compatible CTs to be added when required by the installation design.

The meter supports 2.4 GHz Wi-Fi communication or a hardwired RS-485 connection using the optional communication harness. Suitable for supported Powerwall 2 and Powerwall+ metering configurations.

Key Features
  • Meter and CT Kit: Includes the W2 meter and two matching 200 A current transformers.
  • Four CT Inputs: Accommodates additional W2 CTs for supported monitoring arrangements.
  • Communication Options: Supports 2.4 GHz Wi-Fi or optional wired RS-485 connectivity.
  • Configurable Monitoring: Supports site, solar, and load measurement assignments as required by the system design.
  • Matching Accessories Available: Compatible W2 CT extensions and Y-splitters support installations requiring additional reach or parallel CT connections.
Typical Applications
  • Remote site metering in compatible Powerwall installations.
  • Monitoring non-backup loads in supported partial-home backup configurations.
  • Solar production metering where specified by the installation design.
  • Replacement of an existing compatible Neurio W2 meter and CT set.
Product Details
Category Detail
Product Name Neurio W2 Meter Kit with Two 200 A CTs
Part Number 1112484-04-A
Included Components One Neurio W2 energy meter and two Neurio W2 200 A current transformers
CT Rating 200 A maximum primary current per CT
Meter CT Inputs Four
Wireless Communication 2.4 GHz Wi-Fi
Wired Communication RS-485 with optional 1133339-series communication harness
Compatible CT Family Neurio W2 200 A CTs, 1622277-series
Installation & Compatibility

Neurio remote meters are supported with Backup Gateway 1, Backup Gateway 2, and Powerwall+ in approved configurations. Neurio meters are not compatible with Powerwall 3. Use W2-specific CTs and accessories; W1 components are not interchangeable. A qualified installer should complete voltage-reference wiring, CT placement, communication setup, and commissioning according to Tesla’s installation instructions.

💡 Planning Tip: This kit includes two CTs. Additional monitoring points may require extra W2 CTs, extension cables, or Y-splitters. For a wired connection, plan for the optional RS-485 harness and installation wiring. These additional accessories are sold separately.
Need help selecting the right metering kit? Contact Gruber Power Services with your Powerwall model, Gateway type, and monitoring requirements for assistance identifying compatible equipment.
