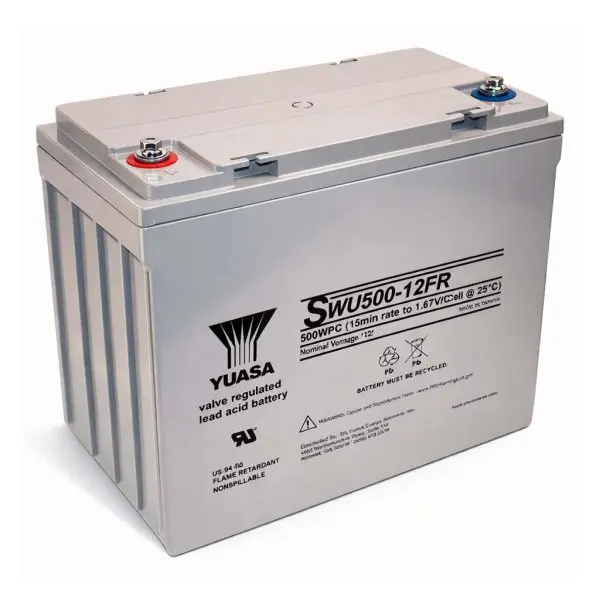

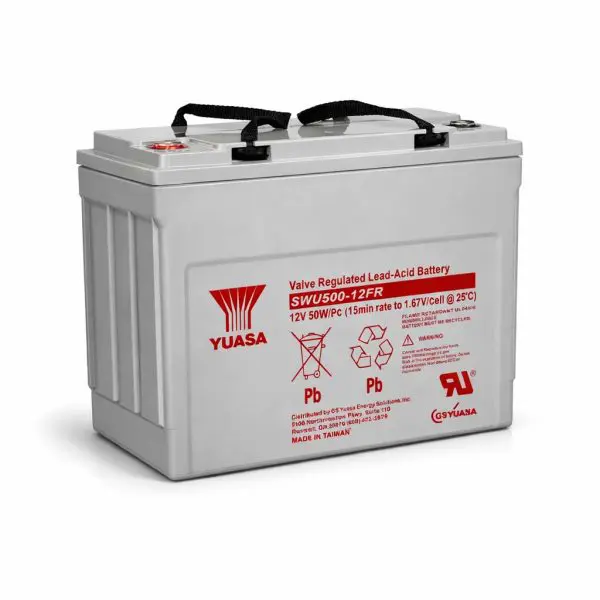

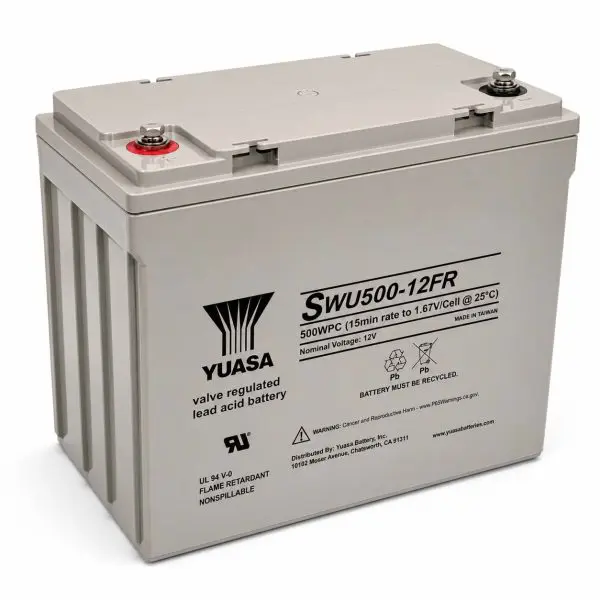

12 Volt – 135 Amp Hour YUASA Battery

12V 135Ah High-Temperature VRLA AGM Battery

The Yuasa SWU500-12FR is a 12-volt, valve-regulated lead-acid (VRLA) battery using absorbed glass mat (AGM) technology
and Yuasa’s high-temperature HT X Alloy™ for extended life in demanding environments. Rated at
135 Ah (20-hr rate) and up to 500 W/cell at 15 minutes (1.67Vpc, 25°C), it delivers robust short-duration
ride-through and reliable long-term standby power for UPS systems, datacenters, switchgear, control, and other critical
infrastructure.

With a 10-year design life, flame-arresting one-way vent, and a flame-retardant UL94V-0 ABS case, the SWU500-12FR
is built for safety and durability in high-density installations. Epoxy-sealed terminals prevent post leaks and the
maintenance-free, non-spillable AGM design meets or exceeds DOT and IATA requirements for non-hazardous transportation.
Top-mounted M6 terminals simplify cabinet and rack installation, while certifications to ISO 9001, ISO 14001,
and IEC 60896-21 plus UL recognition ensure compliance with global quality and safety standards.

Key Features

• 12V, 135 Ah (20-hr) VRLA AGM battery optimized for high-temperature standby use.
• High discharge capability — 500 W/cell at 15 minutes (1.67Vpc, 25°C) for strong UPS ride-through performance.
• 10-year design life with low self-discharge (~3% per month at 25°C) and rugged ABS case.
• Flame-retardant construction — UL94V-0 case, flame-arresting one-way vent, and epoxy-sealed terminals.
• Maintenance-free, non-spillable AGM design for flexible mounting in cabinets and racks.
• Top M6 terminals with recommended torque of 4.9 Nm (43 in-lb) for secure connections.
• Wide operating temperature — discharge from -20°C to 60°C (-4°F to 140°F); operating range -40°C to 65°C (-40°F to 149°F) per manual.
• Complies with ISO 9001, ISO 14001, IEC 60896-21; UL recognized component (U1989); TAA compliant and DRC conflict-free.
