Xtreme – M90Ci-6S – 10000 – 10 kVA – Three Phase Online UPS

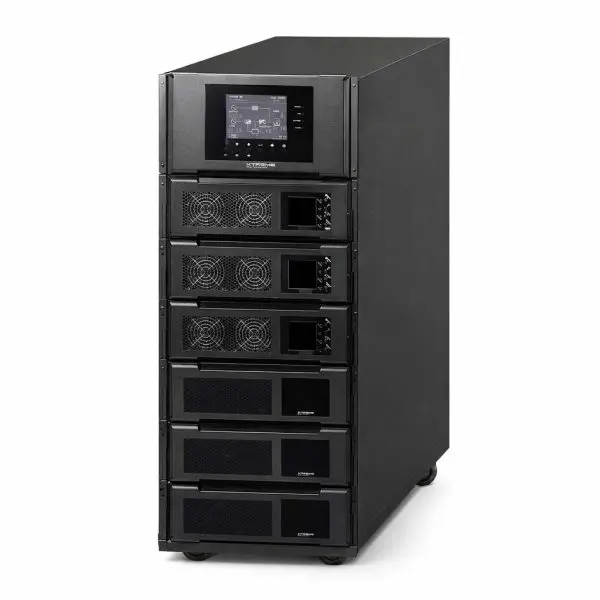

Xtreme Power M90Ci-6S Modular UPS — 10 kW, 400/230 V Three-Phase

The Xtreme Power M90Ci-6S is a compact, modular three-phase UPS designed for modern
400/230 V infrastructure in data centers, industrial automation, and edge-computing environments. Built
around scalable 10 kW hot-swappable power modules, the M90Ci-6S delivers unity power factor (1.0 PF) output
and up to 94 % online efficiency, providing efficient, globally compliant protection for high-density
IT and industrial loads.

The M90Ci-ENC6 cabinet includes six total slots — five universal slots for either power or battery modules,
plus one dedicated power slot. Each 10 kW module is hot-swappable, supporting configurations from 10 kW up to
60 kW or N+1 redundancy without taking the system offline. Internal batteries support systems up to
30 kW, while the optional M90Ci-BC7 battery cabinet holds up to seven battery modules for extended
runtime. Certified to CE, IEC 62040, and RoHS, the M90Ci-6S is a flexible, high-availability UPS
for global 380/400/415 V three-phase deployments.

Key Features & Benefits

• Scalable 10 kW modules — Build from 10 kW up to 60 kW or configure N+1 redundancy for higher availability.
• 400/230 V Three-Phase Operation — Designed for modern global 380/220, 400/230, and 415/240 V WYE systems.
• Unity Power Factor Output (1.0 PF) — Full kW capacity available to dense IT and industrial loads without derating.
• Hot-swappable power & battery modules — Replace or add modules without interrupting power to connected equipment.
• Per-module LCD interfaces — Local monitoring of status, load, and alarms on each power module.
• Integrated manual maintenance bypass — Safe transfer of load to utility power during service operations.
• Flexible installation — Standard tower configuration with optional M90S-RMK rack-mount kit for space-limited sites.
• High efficiency — Up to 94 % online and 98 % in ECO mode to reduce energy and cooling costs.
• 3-year warranty — Electronics and battery coverage (region-dependent) for long-term peace of mind.

Product Snapshot

Why Choose the M90Ci-6S?

• Modular, scalable design — Expand from 10 kW upward and add N+1 redundancy without changing the frame.
• Native 400/230 V three-phase support — Perfect for modern global data center and industrial power architectures.
• Unity PF output — Maximizes usable load capacity for high-density racks and automation systems.
• Flexible battery options — Use internal batteries up to 30 kW or add external M90Ci-BC7 cabinets for extended runtime.
• Compact, serviceable footprint — Tower or optional rack-mounted installation with front-access maintenance bypass and module-level monitoring.

The M90Ci-6S is an excellent choice for global data centers, edge computing sites, and industrial automation systems that
need efficient, dependable, and easily serviceable 400 V three-phase backup power in a modular form factor.
