Manufacturer
OEM Part Number
GPS Part Number
Categories
Tags
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 208VAC | N/A | 30 Kva | 34" | 21" | 59" | 706 lb |
| Voltage | 208VAC |
| WPC | N/A |
| Amp/H | 30 Kva |
| Length | 34" |
| Width | 21" |
| Height | 59" |
| Weight | 706 lb |

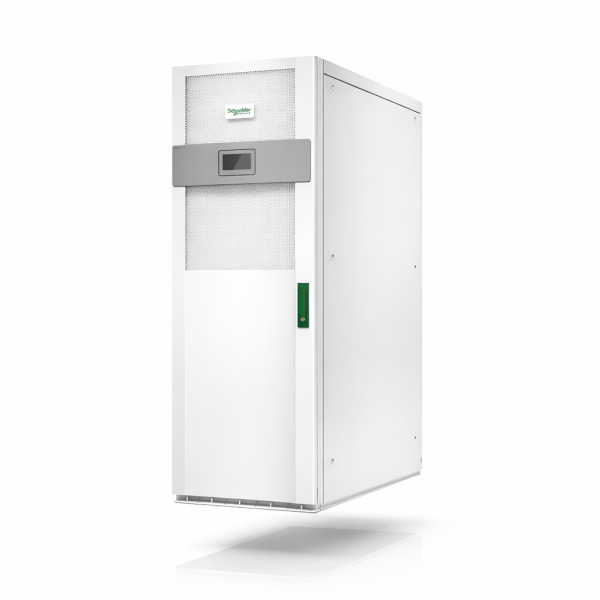

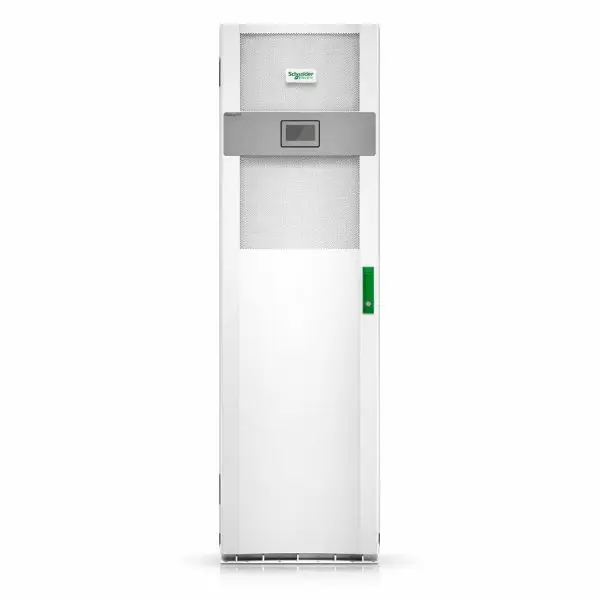

Highly efficient, easy-to-deploy 30 kW, 208 V three-phase UPS delivering best-in-class power protection and low total cost of ownership for edge, small/medium data centers, and commercial & industrial critical loads. Designed for up to 5 internal 9Ah smart modular high-capacity battery strings (VRLA, 480 V system). Supplied without batteries so runtime can be fully customized to site requirements. Includes 5×8 start-up service.
| Category | Detail |
|---|---|
| Rated Output | 30 kW / 30 kVA |
| Input Voltage | 200 / 208 / 220 V AC, 3-phase |
| Output Voltage | 200 / 208 / 220 V AC, 3-phase |
| Frequency | Input 40–70 Hz • Output 50/60 Hz (sync to mains) |
| Input Current (Max/Phase) | 107 A |
| Short-Circuit Withstand (Icw) | 65 kA |
| Power Factor / Cos φ | Load PF 0.7 leading to 0.7 lagging (no derating) • Cos φ 0.99 |
| Harmonics | Input THD < 3% • Output THD < 1% linear / < 5% non-linear |
| Bypass | Built-in static bypass |
| Overload Capability | 10 min @ 125% • 60 sec @ 150% |

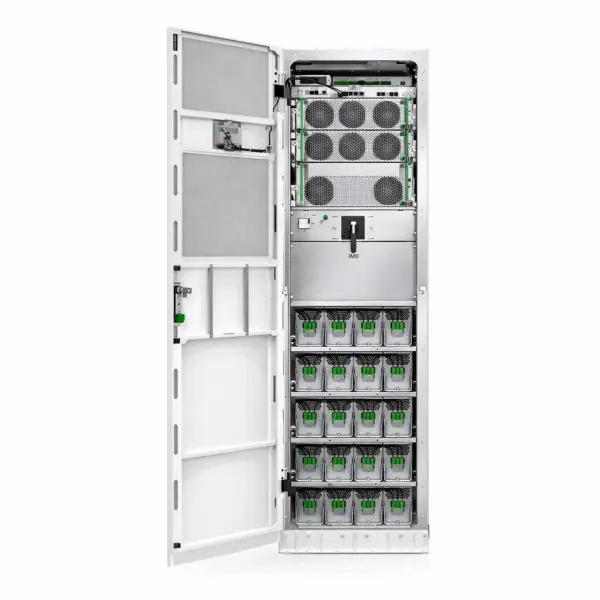

| Battery System | Internal modular VRLA • 480 V battery system • Up to 5 strings End-of-discharge voltage: 384 V DC • Max discharge current: 81 A Batteries sold separately |
| User Interface | Touch Screen LCD |
| Connectivity | Embedded Network Management Card 4 • EcoStruxure Ready |
| Dimensions (H×W×D) | 77.6 × 21.7 × 33.3 in (197 × 55 × 84.7 cm) |
| Weight | 586.4 lb (266 kg) |
| Included Equipment | Dust filter • Installation manual • Integrated network management • 5×8 Start-Up Service |
5×8 start-up service ensures professional commissioning, configuration validation, and operational verification. Runtime is fully customizable based on the number of installed battery strings (0–5).
