| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208VAC | 75 Kva | 34" | 21" | 59" | 264 lb |
| Voltage | 208VAC |
| Amp/H | 75 Kva |
| Length | 34" |
| Width | 21" |
| Height | 59" |
| Weight | 264 lb |

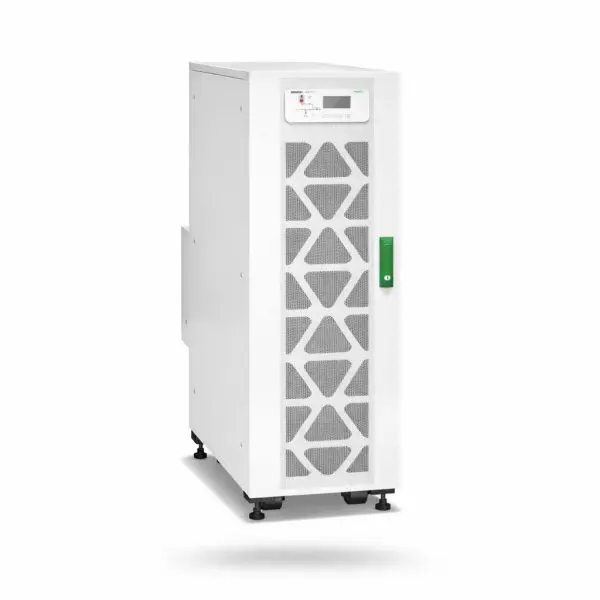

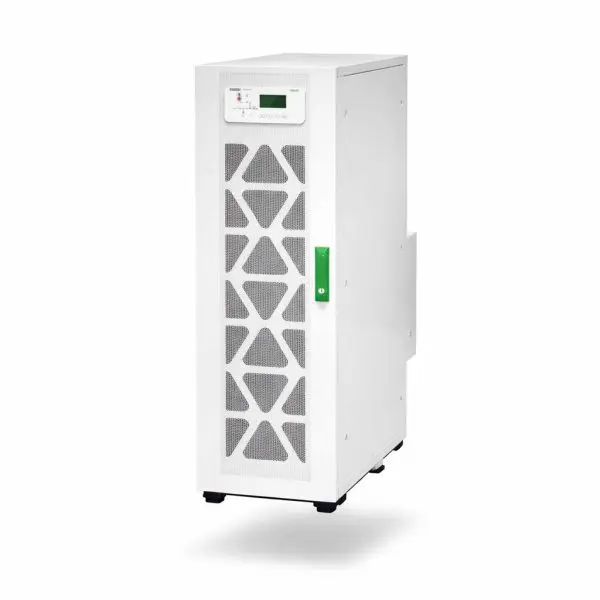

The Easy UPS 3S 10 kVA is a high-efficiency, double-conversion online 3-phase UPS engineered to make business continuity simple and reliable. Designed for small and medium businesses, electrical rooms, and light data center environments, it offers advanced product features, competitive specifications, and a robust electrical design — all in a compact, service-friendly footprint.

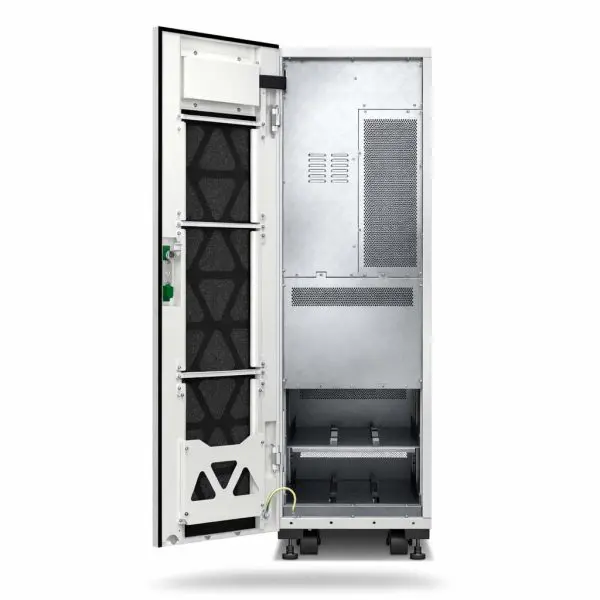

This model is designed for internal modular lead-acid batteries but is supplied without batteries, allowing you to customize runtime to meet site requirements. Includes dust filter, conformal-coated boards for harsh environments, and 5×8 start-up service.
| Category | Detail |
|---|---|
| Rated Output | 10 kW / 10 kVA |
| Input Voltage | 208 V AC 3-phase (Other: 220 V) |
| Output Voltage | 208 V AC 3-phase (Other: 220 V) |
| Topology | Double Conversion Online |
| Input Current (Max/Phase) | 31 A |
| Short-Circuit Withstand | 10 kA |
| Input THD | Less than 4% at full load |
| Load Power Factor | 0.7 leading to 0.7 lagging (no derating) |
| Overload Capability | 10 min @ 125% • 60 sec @ 150% |
| Battery System | Internal modular lead-acid (batteries sold separately) Battery voltage: ±120 V • End-of-discharge: ±96 V |
| Frequency | 50/60 Hz sync to mains |
| User Interface | Touch Screen LCD |
| Dimensions (H×W×D) | 55.1 × 15.0 × 37.8 in (140 × 38 × 96 cm) |
| Weight | 264.6 lb (120 kg) |
| Included Equipment | Dust filter • Installation manual • 5×8 Start-Up Service |
Included 5×8 start-up service ensures professional commissioning, configuration validation, and operational verification prior to handoff. Runtime is determined by the number and capacity of installed internal batteries.
