$16,545.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 80 kVA / 72 kW | 208 V | 34.8″ | 26.87″ | 73.7″ | 568 lb |
| Voltage | 80 kVA / 72 kW |
| Amp/H | 208 V |
| Length | 34.8″ |
| Width | 26.87″ |
| Height | 73.7″ |
| Weight | 568 lb |

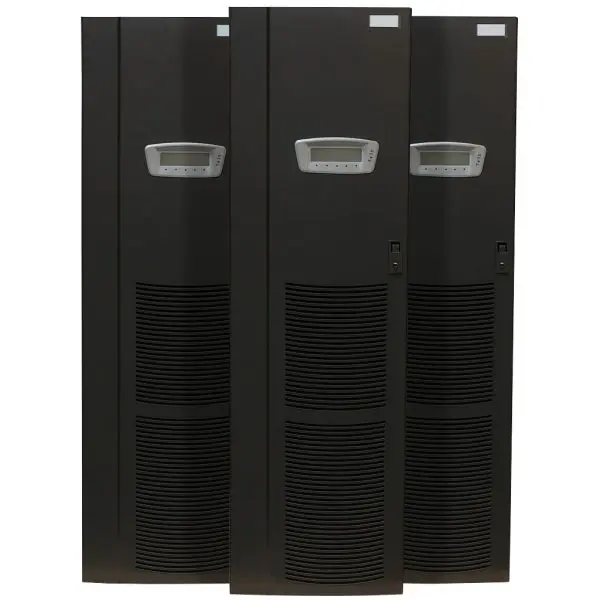

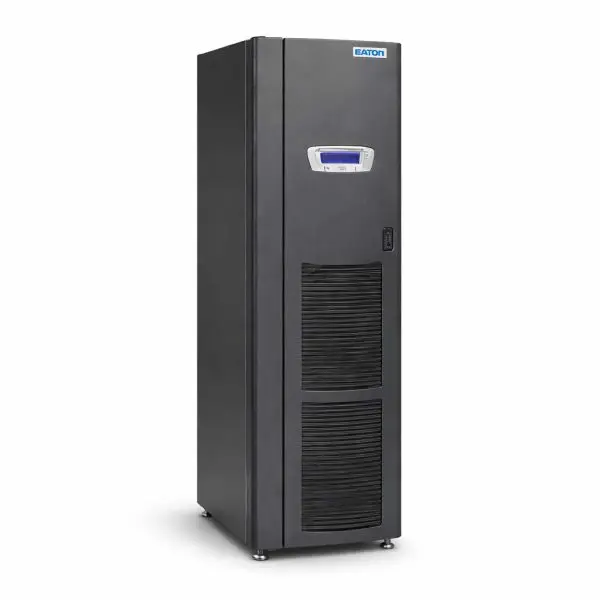

The Powerware 9390 80 kVA (Model 40 frame) is a transformer-free, three-phase online UPS with an integrated static bypass and a variable DC bus.
Units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 80 kVA / 72 kW; transformer-free true double-conversion (VFI) with IGBT rectifier & PWM inverter; Hot Sync™ parallel-capable; double-conversion efficiency up to ~94%; variable DC bus 384/432/480 V (192–240 cells). |
| Input | Operating voltage windows (3-phase): 208 V: 177–229 V • 220 V: 187–242 V • 480 V: 408–528 V; frequency range ±5 Hz of nominal (50/60 Hz). Input power factor ≥0.99 (full load); input current distortion ≤5% THDi (full load). Rectifier input current (full load + recharge): 240 A @ 208/220 V • 105 A @ 480 V. |
| Output | Regulation (10–100% load) ±1%; adjustable nominal (±3%): 208→202–214 V, 220→214–226 V, 480→466–494 V. Distortion ≤1.5% THD (linear) / ≤5% THD (non-linear); transient ±5% for 100% step/removal. Frequency ±0.01 Hz free-running; sync to bypass within ±0.5 Hz; slew ≤1 Hz/s. Full-load output current: 222/210 A @ 208/220 V • 96 A @ 480 V. Overload: 110%/10 min, 125%/30 s, 150%/10 s. |
| Bypass | Integrated static bypass; permissible window +5% / −8% of output setting; sync bandwidth ±0.5 Hz. |
| Short-Circuit / AIC | Coordinate breaker/withstand ratings per site one-line and configured lineup. |

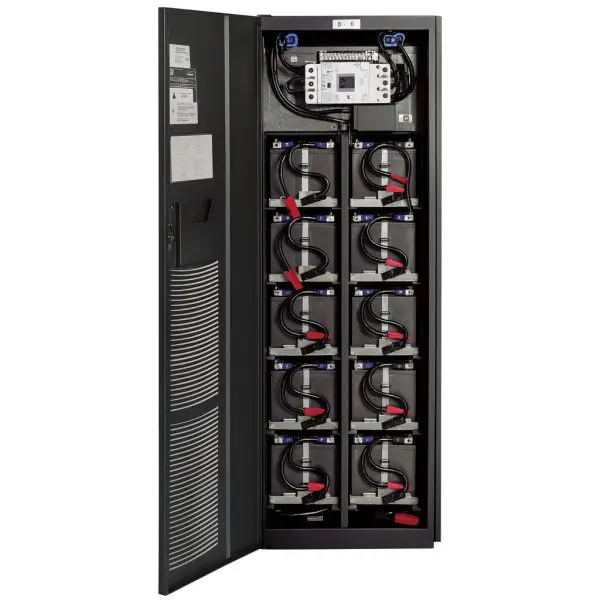

| Battery System | External Integrated Battery Cabinets (IBC-S / IBC-L); variable DC bus 384/432/480 V. DC current at 2.0 V/cell (80 kVA): ≈203 A dc. |
| Controls & Comm | Front LCD/HMI with metering & event log; dual X-Slot bays (web/SNMP, Modbus/RS-485, serial); remote alarm I/O; REPO. |
| Physical | Model 40 frame (40–80 kVA): 73.7″ H × 26.87″ W × 34.8″ D (1872 × 683 × 884 mm). Installed weight (UPS only): ~640 lb (208/220-V models) or ~568 lb (480-V models). |
| Environment | Operating 0–40 °C (25 °C recommended); altitude ≤1500 m @ 40 °C without derating; RH 5–95% non-condensing; acoustics ~65 dB @ 1 m. |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Battery Cabinet | IBC-S / IBC-L | External runtime cabinets required at 80 kVA (no internal-battery option at this rating). |
| Integrated Accessory Cabinet | IAC-B / IAC-T / IAC-D | Wrap-around maintenance bypass / tie cabinet (matching sidecar). |
| Integrated Distribution Cabinet | IDC (40–80 kVA) | Panelboard / subfeed distribution matched to 9390 line-ups. |
