$18,585.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 275 kVA / 250 kW | 480 V | 73.6" | 32.7" | 52.4" | 1786 lb |
| Voltage | 275 kVA / 250 kW |
| Amp/H | 480 V |
| Length | 73.6" |
| Width | 32.7" |
| Height | 52.4" |
| Weight | 1786 lb |

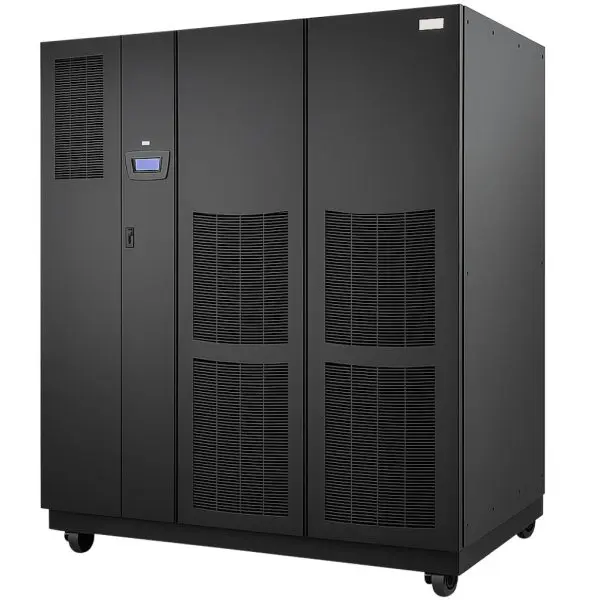

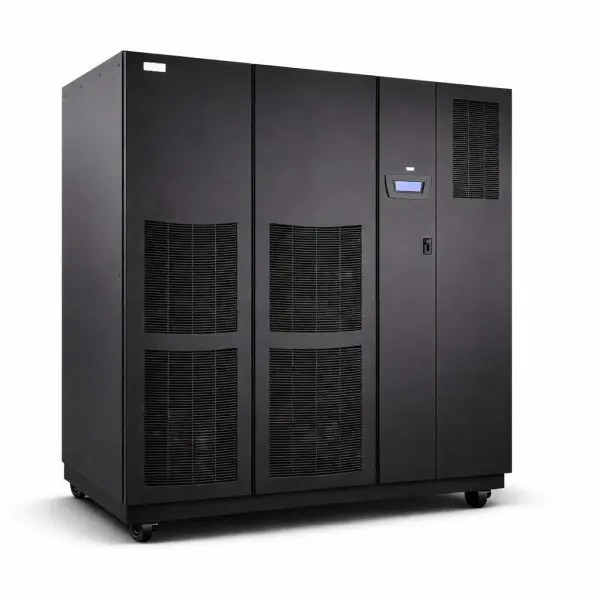

Exact OEM specifications for the Power Xpert 9395 275 kVA, formatted in our standard template. Units are fully reconditioned,
cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 275 kVA / 250 kW (PF 0.9); transformer-free true double-conversion (VFI) with IGBT rectifier and PWM inverter; Hot Sync parallel-capable; double-conversion efficiency up to ~94%; ESS up to 99%. |
| Input | Nominal 480 V (400 V available); operating window +10% / −15% (480 V: 408–528 V). Frequency 45–65 Hz. Power factor ≥ 0.99 (full load). Input current distortion ≤ 5% THD (no input filter required). Rectifier full-load + recharge current (480 V): ~370–377 A (table value varies by manual revision). |
| Output | Regulation ±1% (10–100% load); nominal adjust ±3% (480 V: 466–494 V). Voltage THD ≤ 1.5% (linear), ≤ 5% (non-linear). Transient ±5% for 100% step/removal. Frequency ±0.1 Hz free-running; sync to bypass (selectable band); slew ≤ 1 Hz/s. Full-load output current (480 V): 331 A; (400 V): 397 A. |
| Bypass | Integrated static bypass. Full-load bypass current (480 V): 331 A; (400 V): 397 A. |
| Short-Circuit / AIC | Coordinate breaker/withstand ratings to site one-line and configured lineup (UPS/IOM/MBM). See installation manual tables. |
| Battery System | External battery plant; nominal DC link 480 V. DC current at end-of-discharge (sizing reference): ~551 A dc (table value). |
| Controls & Comm | Color LCD/HMI with metering and event log; network/web (SNMP), Modbus/RS-485, and relay I/O options. |
| Physical | Standard 225/275 kVA frame: 52.4 in W × 32.7 in D × 73.6 in H; weight ~1786 lb (810 kg). |
| Environment | Operating 0–40°C (25°C recommended). Altitude up to 2000 m at 40°C without derating. Audible noise ≤ 76 dBA @ 1 m. |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Battery Cabinets | IBC-S / IBC-L | External runtime cabinets; 480 Vdc bus; sizing per runtime requirement. |
| Maintenance Bypass Module | MBM (275/550 kVA) | Wrap-around service bypass; tie options for multi-module systems. |
