$24,448.89
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 160 kVA / 144 kW | N/A | 208 V | 31.6" | 35.6" | 73.7" | 1220 lb -1280 lb |
| Voltage | 160 kVA / 144 kW |
| WPC | N/A |
| Amp/H | 208 V |
| Length | 31.6" |
| Width | 35.6" |
| Height | 73.7" |
| Weight | 1220 lb -1280 lb |

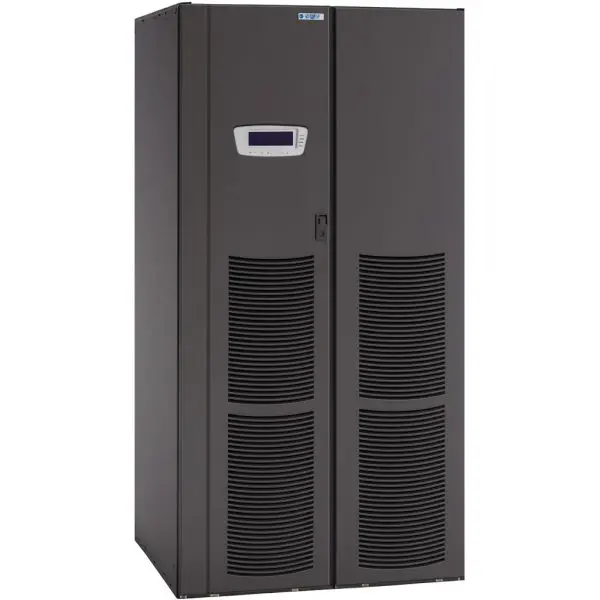

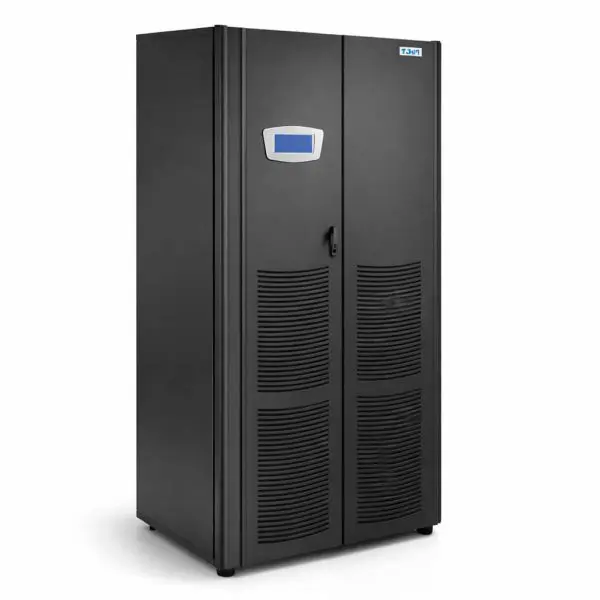

Exact OEM specifications for the Powerware 9390 160 kVA, formatted in our standard template. Units are fully reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 160 kVA / 144 kW; transformer-free true double-conversion (VFI) with IGBT rectifier and PWM inverter; Hot Sync parallel-capable; variable DC bus 384/432/480 V (192–240 cells). |
| Input | Operating window (nominal +10% / −15%): 208 V = 177–229 V; 220 V = 187–242 V; 480 V = 408–528 V. Frequency range ±5 Hz of nominal (50/60 Hz). Input PF ≥ 0.99 (full load); input current distortion ≤ 5% THDi (full load). Rectifier input current (full load + recharge): 480 A @ 208/220 V; 210 A @ 480 V. |
| Output | Regulation (10–100% load) ±1%; adjustable nominal (±3%): 208 V = 202–214 V; 220 V = 214–226 V; 480 V = 466–494 V. Voltage distortion ≤ 1.5% THD (linear) / ≤ 5% THD (non-linear); transient ±5% for 100% step/removal. Frequency ±0.01 Hz free-running; sync to bypass within ±0.5 Hz; slew ≤ 1 Hz/s. Full-load output current: 444/420 A @ 208/220 V; 193 A @ 480 V. |
| Bypass | Integrated static bypass; permissible window +5% / −8% of output setting; sync bandwidth ±0.5 Hz. Bypass full-load current: 444/420 A @ 208/220 V; 193 A @ 480 V. |
| Short-Circuit / AIC | Coordinate breaker/withstand ratings per site one-line and configured lineup. |
| Battery System | External Integrated Battery Cabinets (IBC-S / IBC-L); variable DC bus 384/432/480 V. DC current at 2.0 V/cell (end-of-discharge): 403 A dc. |
| Controls & Comm | Front LCD/HMI with metering and event log; dual X-Slot bays (web/SNMP, Modbus/RS-485, serial); remote alarm I/O; REPO. |
| Physical | 100–160 kVA frame (UPS only): 73.7″ H × 35.6″ W × 31.6″ D (1873 × 904 × 804 mm). Installed weight: 553 kg (1220 lb). Shipping weight: 581 kg (1280 lb). Point loading: 6 points @ 92 kg (204 lb) each. Required clearances: front 36 in (914 mm); top 18 in (457 mm). |
| Environment | Operating 0–40 °C (25 °C recommended); altitude ≤ 1500 m at 40 °C without derating; RH 5–95% non-condensing; acoustics ~65 dB @ 1 m. Heat rejection (full load): 47.3 kBTU/h (208/220 V units) or 43.8 kBTU/h (380/400/415/480 V units). Typical exhaust air ~2000 cfm. |
| Accessory | Model | Notes |
|---|---|---|
| Integrated Battery Cabinet | IBC-S / IBC-L | External runtime cabinets; variable 384–480 Vdc bus. |
| Integrated Accessory Cabinet | IAC-B / IAC-T / IAC-D | Wrap-around maintenance bypass / tie options (matching sidecar). |
| Integrated Distribution Cabinet | IDC (100–160 kVA) | Panelboard / subfeed distribution matched to 9390 line-ups. |
