$7,446.23
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 10 kVA / 9 kW | N/A | 200–240 Vac | 33.5″ | 12.0″ | 32.2″/47.8″ | 352 – 590 lb |
| Voltage | 10Â kVA / 9Â kW |
| WPC | N/A |
| Amp/H | 200–240 Vac |
| Length | 33.5″ |
| Width | 12.0″ |
| Height | 32.2″/47.8″ |
| Weight | 352 – 590Â lb |

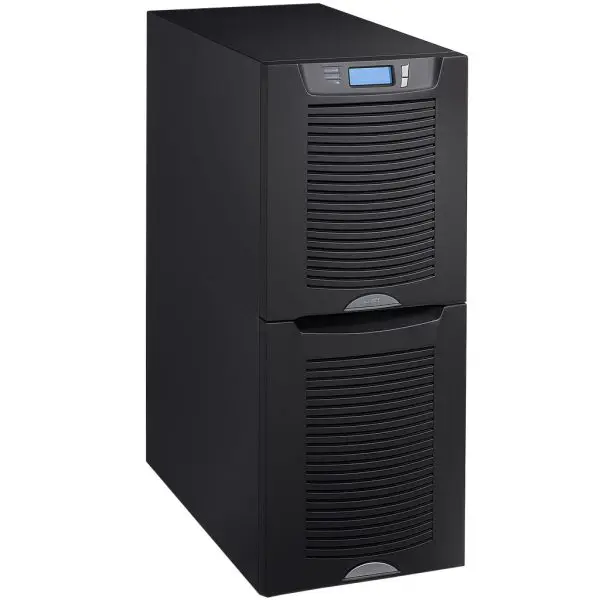

The Powerware 9155 10 kVA is a split-phase, online UPS that delivers 0.9 PF power in a compact, service-friendly frame. Units are fully reconditioned, cosmetically refreshed, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 10Â kVA / 9Â kW (0.9 PF); split-phase, true double-conversion online; Hot Syncâ„¢ parallel capable |
| Input | 200–240 Vac split-phase (L1-L2-N-G); rated voltages 100/200, 110/220, 120/240 or 120/208 V; frequency 50/60 Hz (auto-config), 45–65 Hz window; input PF >0.99 (full load); typical input THDi ≤~5% (design target). |
| Output | Split-phase 120/240 V (or 120/208, 127/220); voltage regulation ±1% (phase-neutral), ±2% (phase-phase) static; ±5% dynamic @ 100% step; VTHD <2% (linear), <5% (non-linear); selectable 50/60 Hz, sync-to-mains or ±0.1% free-running. |
| Bypass | Integrated static bypass; automatic transfer on overload or UPS fault; optional rear-mounted MBM/PDM sidecar |
| Short-Circuit / AIC | Coordinate per site one-line and protective device study (varies by installation) |
| Battery System | Internal VRLA packs (2-high = 32 batteries; 3-high = 64); nominal DC per string 192 Vdc (96 cells/string); ABM® charging; typical recharge ≈3 h to ~80% (internal); 10 kVA 2-high runtime ≈8 min (full load); external EBM-64 / EBM-96 cabinets for extended runtime. |

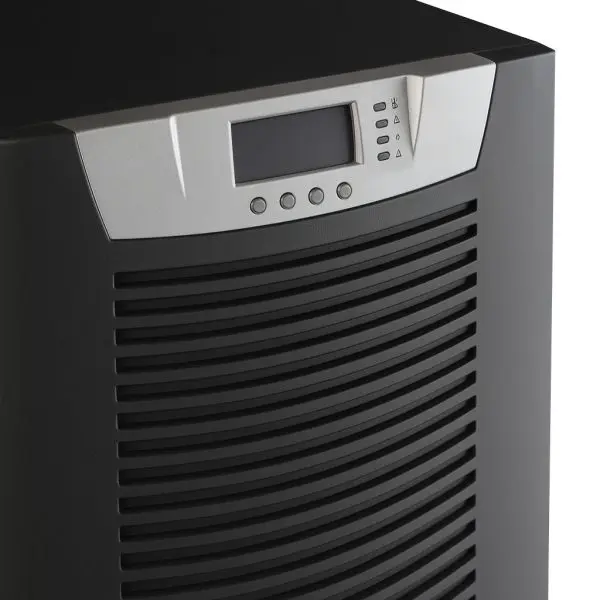

| Controls & Comm | Graphical LCD/HMI; audible & LED alarms; ports: relay contact, REPO, environmental inputs; optional SNMP/web, RS-485/Modbus, dry-contact cards |

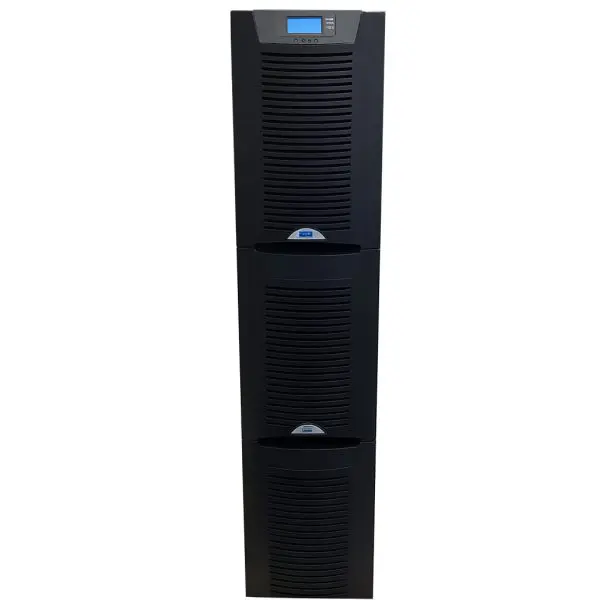

| Physical | 2-High (32-battery): 32.2″ H × 12.0″ W × 33.5″ D; ~352 lb 3-High (64-battery / or +XFMR): 47.8″ H × 12.0″ W × 33.5″ D; ~590 lb (3-High 32+XFMR ≈558 lb) |
| Environment | Operating 50–104 °F (10–40 °C), optimum battery 77 °F (25 °C); 5–95% RH non-condensing; altitude ≤3,000 m without derating; heat dissipation ≈4,175 BTU/h (10 kVA); acoustic <56 dBA (typ.) |
| Accessory | Model | Notes |
|---|---|---|
| Extended Battery Module (2-High) | EBM-64 | Adds 64-cell cabinet; runtime scales with cabinet count |
| Extended Battery Module (3-High) | EBM-96 | Three battery sections; higher capacity runtime expansion |
| Rear-mount MBM / PDM | MBM / PDM | Maintenance bypass and distribution sidecars |
