$17,745.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 8 kVA / 6.4 kW | 208/240 VAC | 28.6″ | 19.02″ | 26.4″ | 444.9 lb |
| Voltage | 8 kVA / 6.4 kW |
| Amp/H | 208/240 VAC |
| Length | 28.6″ |
| Width | 19.02″ |
| Height | 26.4″ |
| Weight | 444.9 lb |

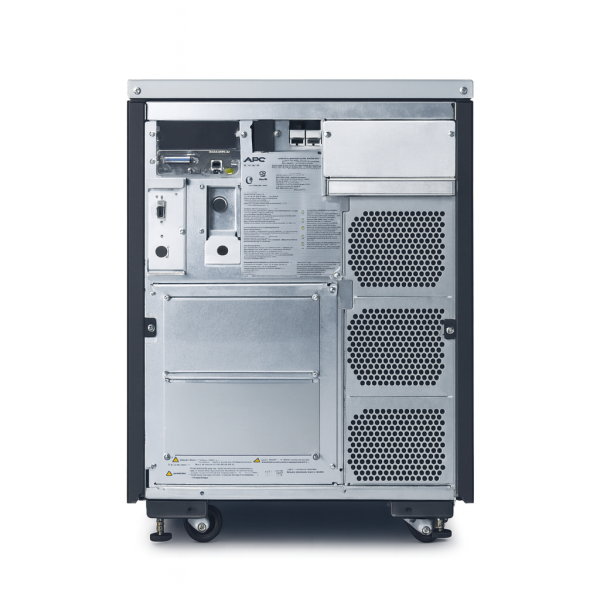

Symmetra LX provides scalable, modular on-line protection in 4 kVA increments. This 8 kVA system is fully
reconditioned, cosmetically refreshed, and tested in the USA for reliable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | 8 kVA / 6.4 kW; true double-conversion on-line; sine-wave output; 4 kVA power increments (N+1 capable) |
| Input | Hard-wire 4-wire (2PH+N+G); 208/240 VAC; 45–65 Hz auto-sensing; input PF ≈0.98 (full load); input ITHD <7% (full load) |
| Output | Configurable 120/208 or 120/240 VAC, 4-wire; 47–63 Hz when sync’d to mains or 50/60 Hz ±0.1% free-running; VTHD <5% (full load); crest factor up to 5:1; max output current 37 A |
| Bypass | Internal bypass (automatic & manual); optional external wrap-around MBB |
| Short-Circuit / AIC | Site-specific; coordinate with upstream/downstream protection and the project one-line |
| Battery System | Lead-acid; included battery modules: 2 × SYBT5 (typical recharge ≈3 h); extendable runtime supported |
| Controls & Comm | Multi-function LCD console; Network Management Card 2 pre-installed; 1 SmartSlot free; EPO; audible/visible prioritized alarms |
| Physical | 26.4″ H × 19.02″ W × 28.6″ D; ≈444.9 lb (201.8 kg); front-service tower |
| Environment | Operating 32–104 °F (0–40 °C); 0–95% RH (non-condensing); altitude 0–10,000 ft; acoustics ≈62 dBA; heat ≈3,485 BTU/h |
| Accessory | Model | Notes |
|---|---|---|
| Power Module (4 kVA) | SYPM4KP | 4 kVA module; chassis supports N+1 (add module for redundancy) |
| Battery Module | SYBT5 | Hot-swappable VRLA; 2 installed in base configuration |
| Extended-Run Battery Cabinet | SYAXR9B9 | Tower XR cabinet with 9× SYBT5; can chain multiple XR frames for longer runtime |
| External Maintenance Bypass | MBB (site-specific) | Wrap-around service bypass option |
