APC – SYA16K16P – Symmetra LX – UPS – Refurbished

Name: APC - SYA16K16P - Symmetra LX - UPS - Refurbished - Gruber Power Services
SKU: 59-APC-SYA16K16PXR
Price: 13735.23 USD
Availability: InStock

Manufacturer

APC

OEM Part Number

SYA16K16PXR

GPS Part Number

59-APC-SYA16K16PXR

Price:

$13,735.23

Specifications

View Spec Sheet

Voltage	AH/kVA	Length	Width	Height	Weight
16 kVA / 12.8 kW	208 VAC	28.58″	19.02″	36.89″	678 lb

Voltage	16 kVA / 12.8 kW
Amp/H	208 VAC
Length	28.58″
Width	19.02″
Height	36.89″
Weight	678 lb

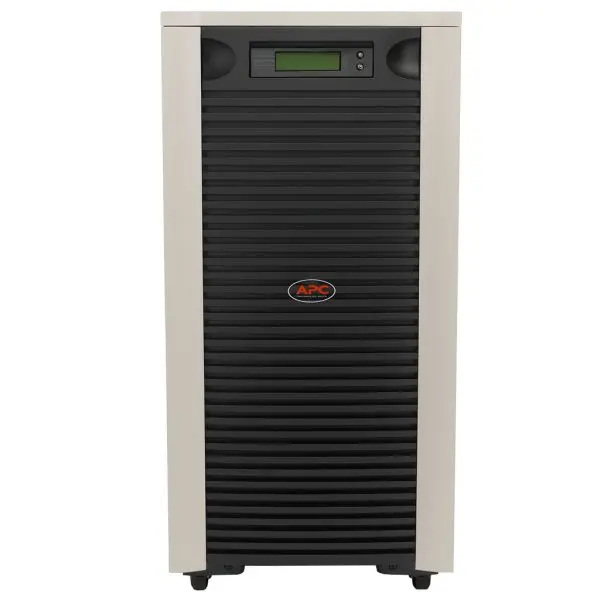

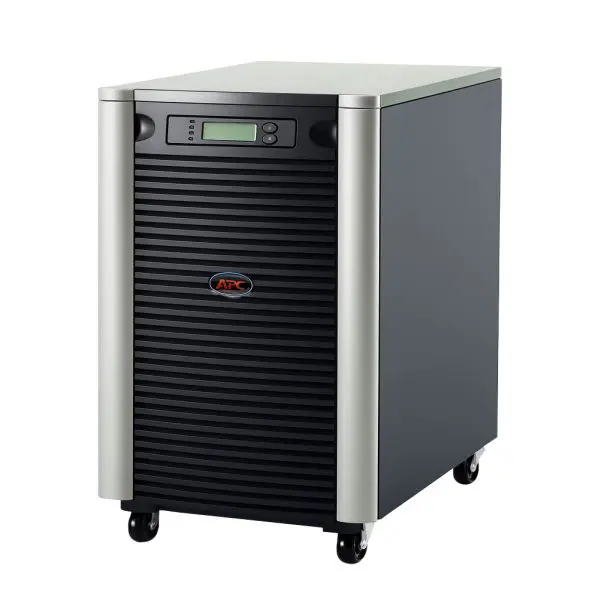

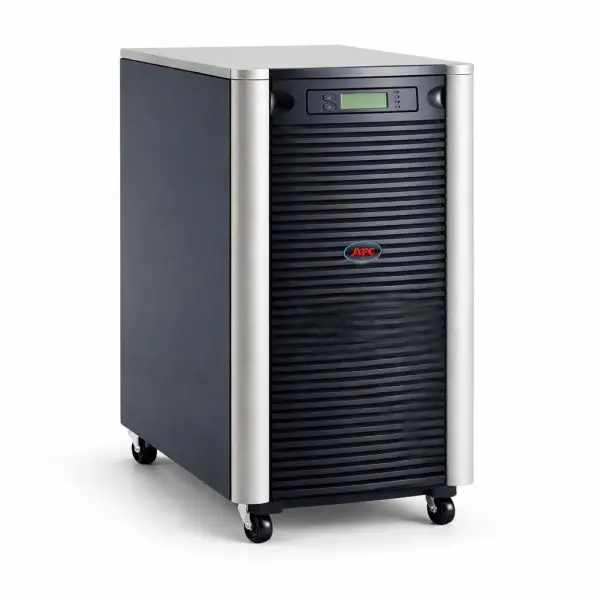

Refurbished UPS — APC/Schneider Electric Symmetra LX 16 kVA
(SYA16K16P)

208/240 V input (4-wire, 2PH+N+G) •
Configurable 120/208 or 120/240 V output •
True double-conversion (VFI) • Modular N+1 tower

Symmetra LX provides scalable, modular on-line protection in 4 kVA increments. This 16 kVA system
is fully reconditioned, cosmetically refreshed, and tested in the USA for reliable, ready-to-deploy service.

What you get

Thorough refurbishment — inspection, wear-part replacement to OEM spec, repaint, final QA
Comprehensive testing — burn-in, functional verification, alarms cleared
Network-ready — LCD HMI; pre-installed Network Management Card 2; SmartSlot expansion
Configured to order — common input/output and bypass arrangements
U.S. warranty & support from Gruber Power Services

Technical Specifications — SYA16K16P

Category	Detail
Power & Topology	16 kVA / 12.8 kW; true double-conversion on-line; modular N+1; 4 kVA power increments
Input	208 VAC nominal (240 VAC supported); hard-wire 4-wire (2PH+N+G); 45–65 Hz auto-sensing; input PF ≈0.98; THDi <7% at full load
Output	Configurable 120/208 or 120/240 VAC, 4-wire (2PH+N+G); 47–63 Hz sync to mains; ±0.1% free-running; <5% THD; crest factor up to 5:1; max output current 75 A
Bypass	Internal bypass (automatic & manual)
Short-Circuit / AIC	Site-specific; coordinate with upstream/downstream protection and one-line
Battery System	VRLA lead-acid; included battery modules: 4; typical recharge ≈3 h; extend runtime with external SYAXR9B9 battery cabinets
Controls & Comm	Multi-function LCD console; Network Management Card 2 pre-installed; 1 SmartSlot free; EPO
Physical	36.89″H × 19.02″W × 28.58″D (93.7 × 48.3 × 72.6 cm); ~678 lb (307.7 kg); heat dissipation ≈4,995 BTU/h; acoustic noise ≈62 dBA
Environment	Operating 0–40 °C; 0–95% RH (non-condensing); altitude 0–10,000 ft

Battery Cabinets & Options

Accessory	Model	Notes

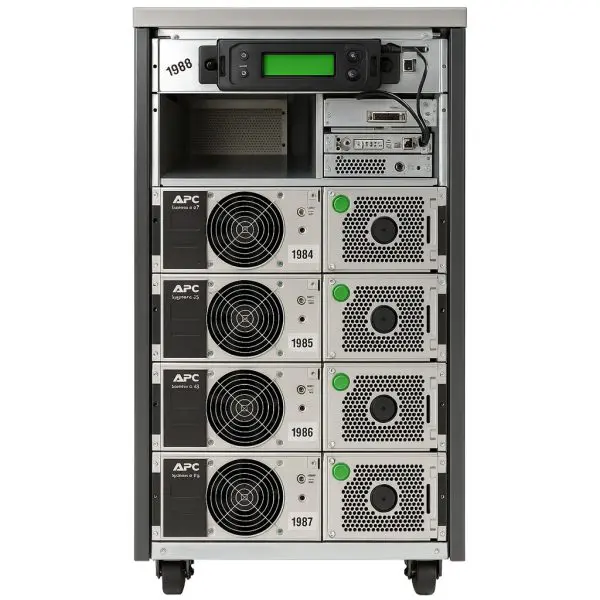

4 kVA Power Module	SYPM4KP	Four installed for 16 kVA; add one for N+1 redundancy
Battery Module	SYBT5	Four installed; hot-swappable VRLA
Intelligence Module	SYMIM5	Dual intelligence modules for control redundancy (as equipped)
Extended-Run Battery Cabinet	SYAXR9B9	Scales runtime; multiple cabinets supported
External Maintenance Bypass	MBB (site-specific)	Wrap-around service bypass option

Notes

Configurable outputs support 120/208 or 120/240 V; verify distribution/backplate needs.
Electrical limits and module counts can vary by build; confirm on the project cut-sheet.
Batteries/cabinets sold separately unless specified; runtime depends on battery configuration.

Why buy from Gruber

Professionally refurbished — Restored in our electronics engineering lab.
Ready to install — Plug-and-play functionality with hot-swap modules.
Guaranteed quality — Backed by our no-hassle 1-year full replacement warranty.
