$17,345.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 40kVA / 32kW | 208V | 42.1″ | 23.6″ | 78.3″ | 1,400 lb |
| Voltage | 40kVA / 32kW |
| Amp/H | 208V |
| Length | 42.1″ |
| Width | 23.6″ |
| Height | 78.3″ |
| Weight | 1,400 lb |

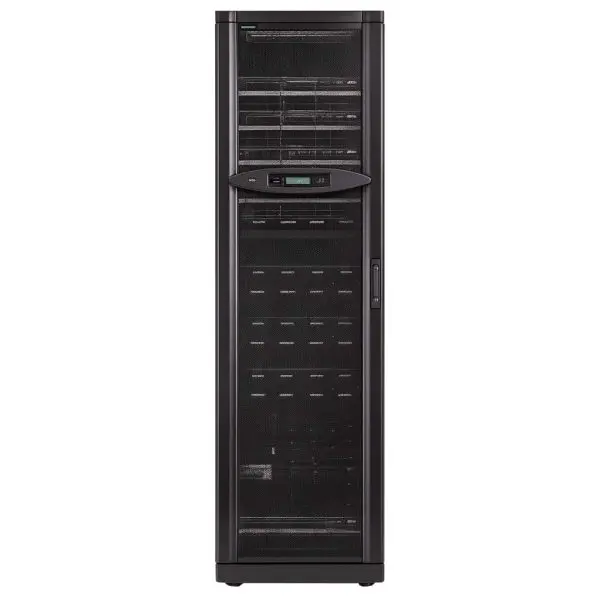

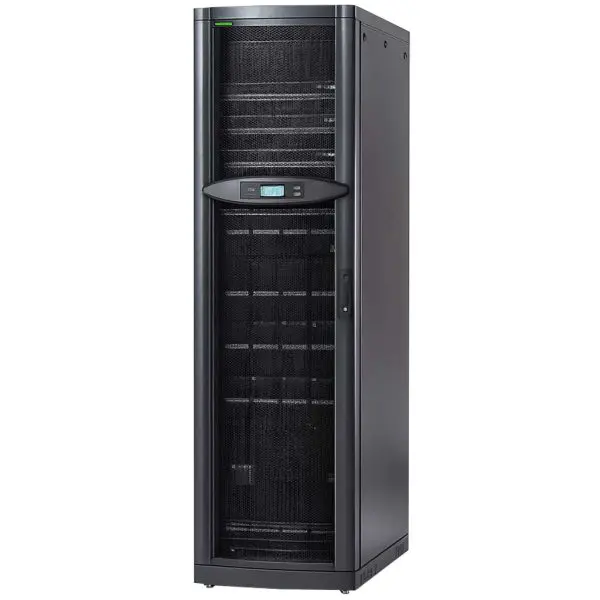

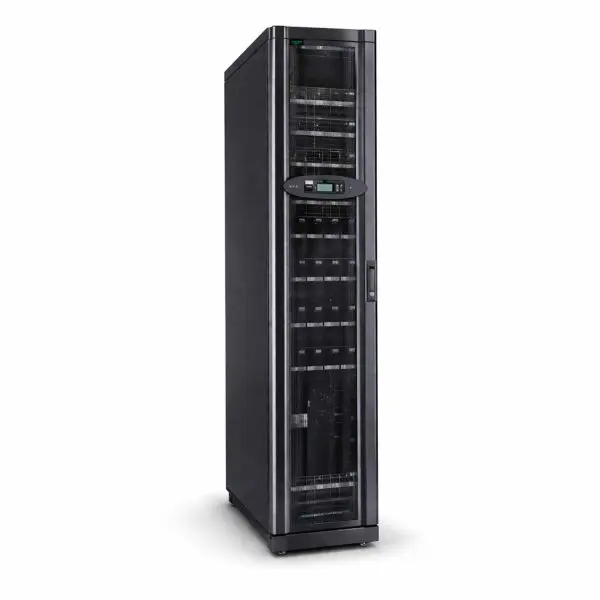

The Symmetra PX 40kVA delivers scalable, redundant three-phase protection designed for large server rooms, edge sites, and data centers. Each refurbished unit is reconditioned to OEM standards, cosmetically refreshed, and tested in the USA for reliable, ready-to-deploy performance.
| Category | Detail |
|---|---|
| Power & Topology | 40kVA / 32kW; double-conversion online; pure sine-wave output |
| Input | 208V 3-phase; 40–70Hz; PF>0.99; THDi <5%; voltage window 160–280V |
| Output | 208/120V 3-phase; 50/60Hz; regulation ±2%; THD <3%; overload 10min @125%, 60s @150% |
| Bypass | Integrated static bypass; programmable transfer thresholds |
| Short-Circuit / AIC | 42kA rating |
| Battery System | Hot-swappable modular battery units; runtime scalable with external cabinets/frames |
| Controls & Comm | LCD interface; integrated network management; SNMP/Modbus support |
| Physical | 1990H × 600W × 1070Dmm (78.3″ × 23.6″ × 42.1″); ~635kg (1,400lb); IP20 |
| Environment | Operating 0–40°C, 0–95% RH (non-condensing) |
| Accessory | Model | Notes |
|---|---|---|
| Battery Cabinet — Standard | SYBT4 | Holds modular hot-swappable battery units; runtime scales with cabinet count |
| Extended Battery Frame | SYCFXR9 | Supports additional SYBT4 strings for extended runtime |
