$18,442.67
| Voltage | WPC | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 130 kVA / 104 kW | N/A | 208 or 480 VAC | 32.5″ | 25″ | 71″ | 1500 – 3000 lb |
| Voltage | 130 kVA / 104 kW |
| WPC | N/A |
| Amp/H | 208 or 480 VAC |
| Length | 32.5″ |
| Width | 25″ |
| Height | 71″ |
| Weight | 1500 – 3000 lb |

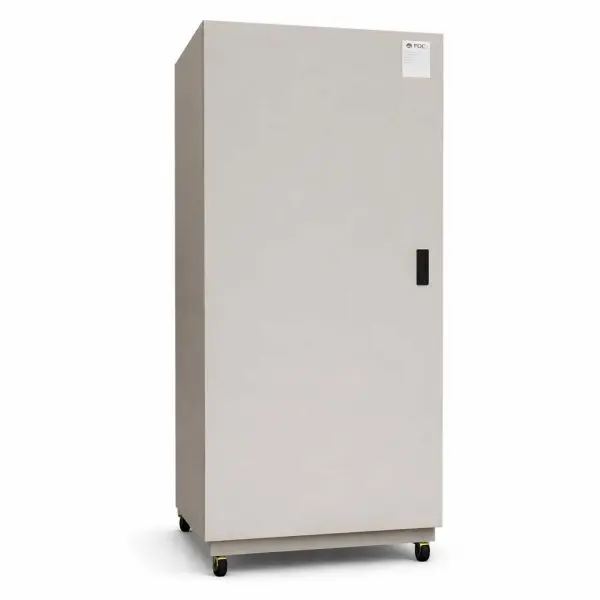

Factory-matched line-up battery cabinet for Liebert Npower UPS systems. Small cabinets (“J” footprint) minimize width while
maintaining service access. Each unit is reconditioned, cosmetically refreshed, and tested in the USA for dependable, ready-to-deploy service.
| Category | Detail |
|---|---|
| Power & Topology | Passive VRLA battery cabinet matched to Liebert Npower UPS; no AC power conversion in cabinet |
| Input | None (cabinet connects to UPS DC bus) |
| Output | DC energy storage for UPS; cabinet strings configured to the UPS DC bus (typ. 480 Vdc for 480 Vac systems) |
| Bypass | Not applicable (use UPS maintenance bypass/MBB as required) |
| Short-Circuit / AIC | Coordinate DC protection with site one-line; cabinet-level DC disconnects as equipped (RBB/panel) |
| Battery System | Small (“J”) footprint used singly or in multi-cabinet sets. Typical matched models & weights:
Single-cab (25×32.5×71 in each) — 1FJ: 1,600 lb (725 kg) • 1HJ: 1,800 lb (815 kg) • 1J: 2,350 lb (1,065 kg) • 1PJ/130: 3,350 lb (1,520 kg)
2-cab set (2PJ) — (2) 25×32.5×71 in; 6,000 lb (2,720 kg) • 2PJ/130: 6,700 lb (3,040 kg)
3-cab set (3PJ/130) — (3) 25×32.5×71 in; 10,050 lb (4,560 kg)
4-cab set (4PJ/130) — (4) 25×32.5×71 in; 13,400 lb (6,680 kg)
|
| Controls & Comm | No active electronics; provisions for cabinet DC disconnect(s) and inter-cabinet cabling; optional battery monitoring per site |
| Physical | Per cabinet: 25″ W × 32.5″ D × 71″ H (635 × 825 × 1800 mm) • Small (“J”) footprint. |
| Environment | Recommended battery ambient 68–86 °F (20–30 °C); 0–95% RH non-condensing; up to 6,600 ft (2,000 m) without derating |
| Accessory | Model | Notes |
|---|---|---|
| Small Battery Cabinet (per unit) | J footprint | 25″ W × 32.5″ D × 71″ H (635 × 825 × 1800 mm) |
| Battery Cabinet Set | 2PJ / 3PJ / 4PJ | See weights above; used to meet runtime targets by kVA range |
| Slim-Line Distribution Cabinet | SLDC | 10″ W × 32.5″ D × 71″ H; downstream distribution |
| Remote Battery Breaker | RBB (site-specific) | Cabinet-level DC isolation and safety interlocks |
