$715.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| N/A | N/A | 5" | 2" | 2" | 4.85 lbs |
| Voltage | N/A |
| Amp/H | N/A |
| Length | 5" |
| Width | 2" |
| Height | 2" |
| Weight | 4.85 lbs |

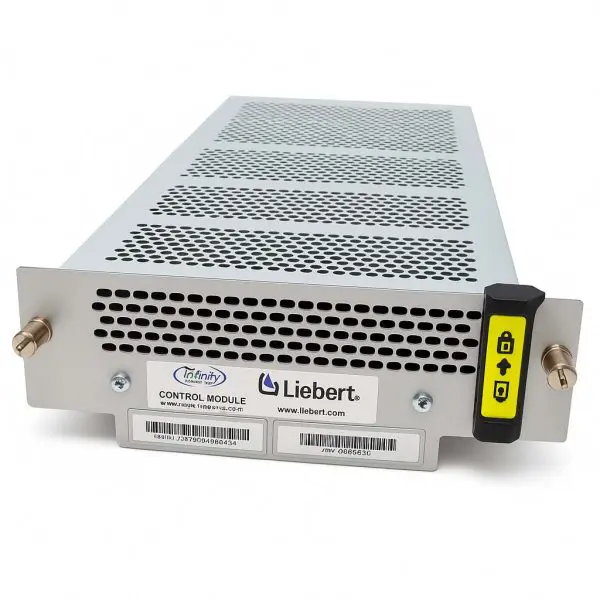

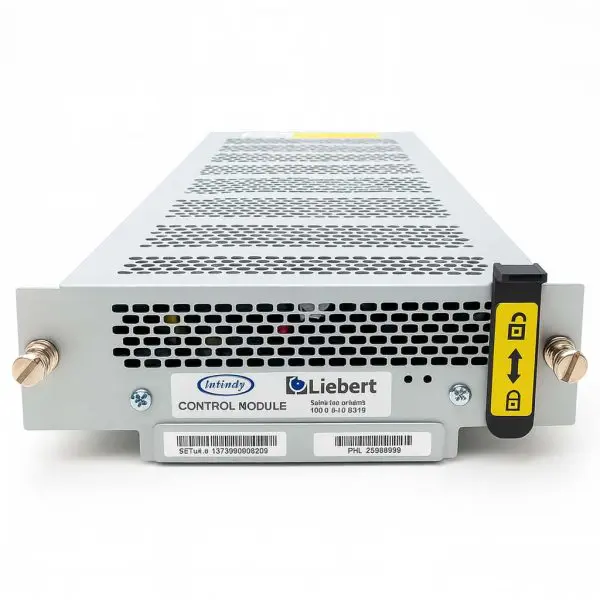

The 200543G3 is the system Control Module for Liebert Nfinity modular UPS frames (4–20 kVA). It coordinates power and battery modules, manages alarms/events, and maintains overall system integrity.
Field-replaceable and designed for high availability: the control module can be swapped without downtime when a redundant control module is present; if no redundant controller is installed, transfer the UPS to manual bypass before removal.
| Specification | Details |
|---|---|
| Part Number | 200543G3 |
| Compatibility | Liebert Nfinity modular UPS frames (4–20 kVA) |
| Function | System Control Module (coordinates power/battery modules & alarms) |
| Redundancy | Supports redundant control configuration for failover (where equipped) |
| Serviceability | Hot-swap with redundancy; use manual bypass if no redundant controller |
| Weight | ≈ 4.85 lbs (≈ 2.2 kg) |

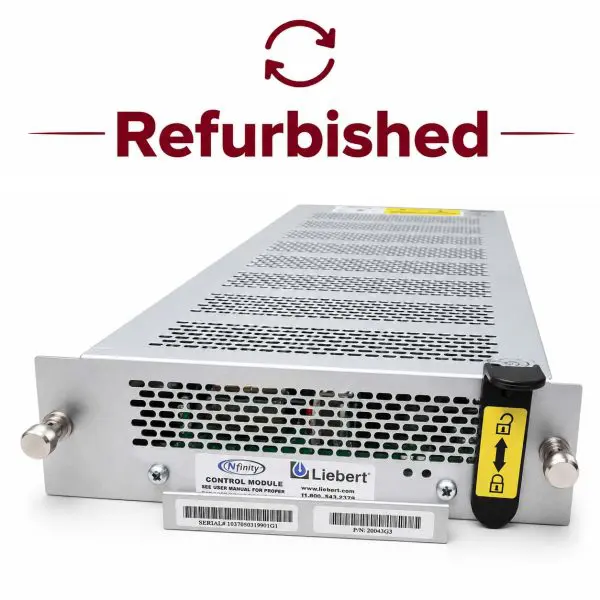

| Condition | Refurbished; 1-year replacement warranty available |
