$715.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| N/A | N/A | 19.25" | 8.25" | 2.25" | 7.01 lbs |
| Voltage | N/A |
| Amp/H | N/A |
| Length | 19.25" |
| Width | 8.25" |
| Height | 2.25" |
| Weight | 7.01 lbs |

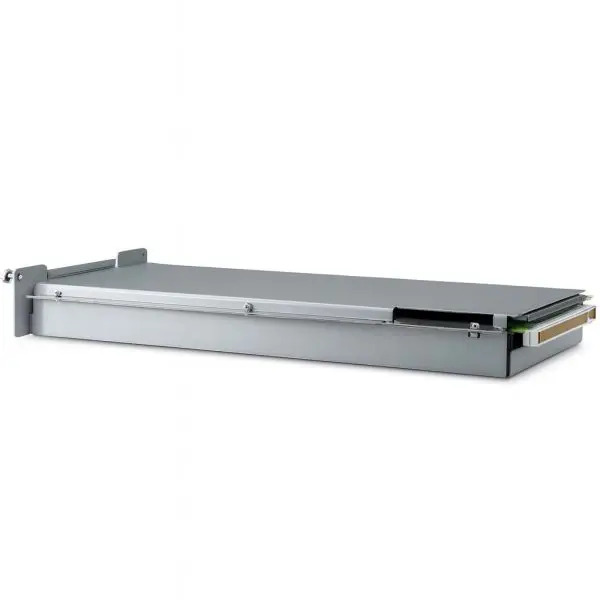

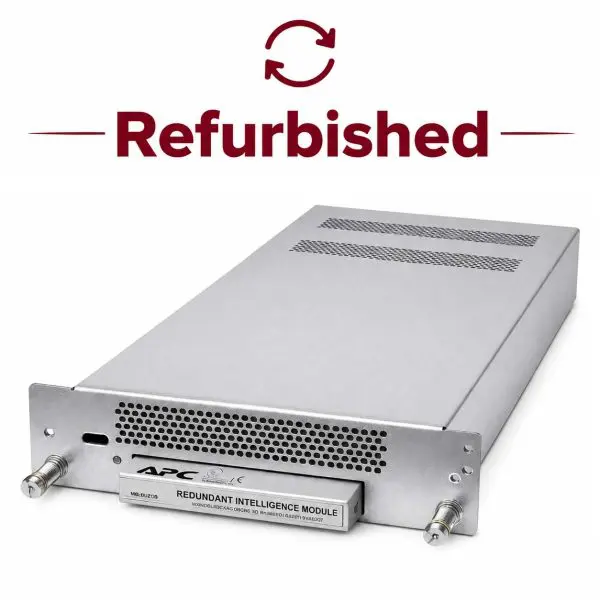

The APC SYRIM is the legacy Redundant Intelligence Module (RIM) for early Symmetra Power Array 1:1 UPS systems. Installed alongside the SYMIM Main Intelligence Module, it provided redundancy by taking control if the primary module failed.
The SYRIM was designed exclusively for 1:1 Symmetra Power Array configurations and is not compatible with 3:1 systems. It was later replaced by the SYRIM2, which supports both 1:1 and 3:1 UPS frames.
Like other Symmetra intelligence modules, the SYRIM is hot-swappable, allowing replacement without powering down the UPS. Refurbished units include a 1-year replacement warranty.
| Specification | Details |
|---|---|
| Part Number | SYRIM (legacy) |
| Compatibility | Symmetra Power Array 1:1 (legacy only) |
| Function | Redundant Intelligence Module (RIM) |
| Hot-Swappable | Yes |
| Physical (H×W×D, Weight) | 2.26 in (57 mm) × 8.26 in (210 mm) × 19.26 in (489 mm); 7.00 lbs (3.18 kg) |
| Warranty | 1 Year Replacement (Extended available) |
