$2,185.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208 VAC | 80 kW | 15.51 " | 19.02" | 16.26" | 77.16 lbs |
| Voltage | 208 VAC |
| Amp/H | 80 kW |
| Length | 15.51 " |
| Width | 19.02" |
| Height | 16.26" |
| Weight | 77.16 lbs |

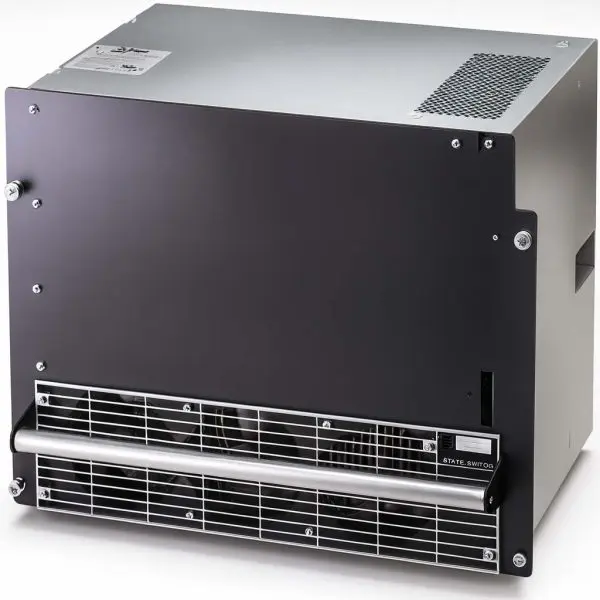

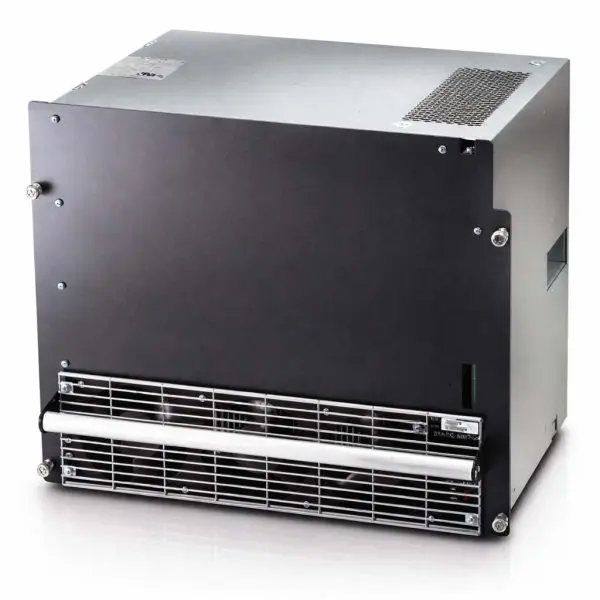

Factory static bypass/transfer switch module for Symmetra PX 80 kW 208 V frames. The module provides an electronic, no-break path that transfers the critical load to bypass during inverter faults/overload and enables safe power transfers for maintenance—all within the PX UPS architecture (3-phase).
| Parameter | Detail |
| Model / MPN | SYSW80KF (APC by Schneider Electric) |
| Function | Static bypass / transfer switch module for Symmetra PX UPS |
| Power Rating | 80 kW / 80 kVA |
| Electrical | 208 V, 3-phase (PX 208 V class frames) |
| Mounting | Front-mount module; not rack-mountable |
| Operating Environment | 32–104 °F (0–40 °C); 0–95% RH (non-condensing) |
| Warranty | 1-year repair or replace |
| Color | Black |
| Switch Module | Compatible APC UPS Frames (Representative) | Notes |
| SYSW80KF | Symmetra PX 80 kW, 208 V class (e.g., SYCF80KF) | Match voltage and frame family. For 400 V frames use variant SYSW80KH. |
