$1,185.00
| Voltage | AH/kVA | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 208 VAC | 40 kW | 37" | 26" | 28" | 80 lbs |
| Voltage | 208 VAC |
| Amp/H | 40 kW |
| Length | 37" |
| Width | 26" |
| Height | 28" |
| Weight | 80 lbs |

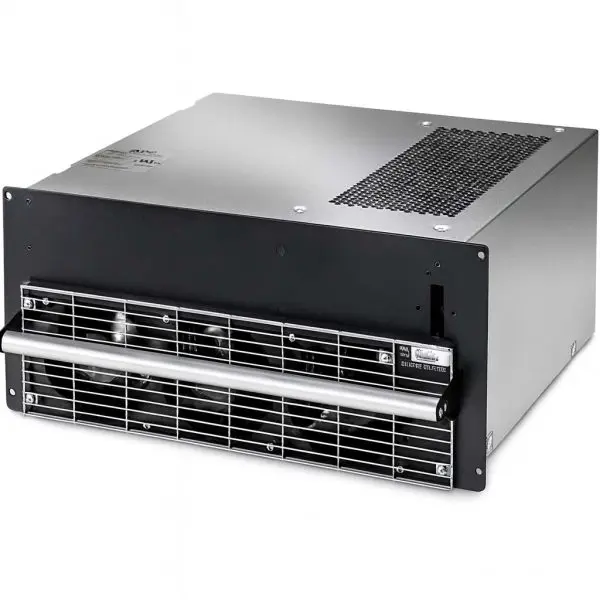

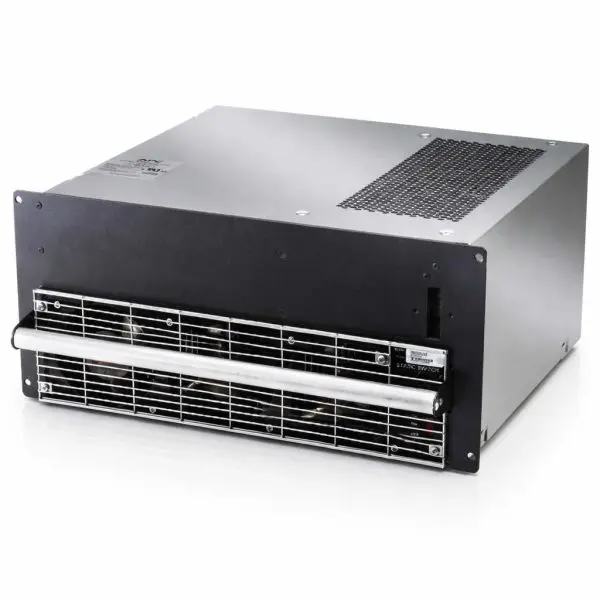

Factory static bypass/transfer switch module for Symmetra PX 40 kW frames. The module provides an electronic, no-break path that transfers the critical load to bypass during inverter faults/overload and enables safe power transfers for maintenance—all within the UPS architecture (3-phase).
| Parameter | Detail |
| Model / MPN | SYSW40KF (APC by Schneider Electric) |
| Function | Static bypass / transfer switch module for Symmetra PX UPS |
| Power Rating | 40,000 W / 40,000 VA |
| Electrical | 3-phase; marketed for 208 V class PX frames. |
| Mounting | Front-mount module; not rack-mountable; 0U; 1 cable |
| Certifications | UL, cUL, FCC Part 15 A |
| Operating Environment | 32–104 °F (0–40 °C); 0–95% RH (non-condensing) |
| Switch Module | Compatible APC UPS Frames (Representative) | Notes |
| SYSW40KF | Symmetra PX 40 kW (e.g., SY40K40F, 208 V class) | Match module MPN and frame voltage; module variants/labels may differ by region. |
